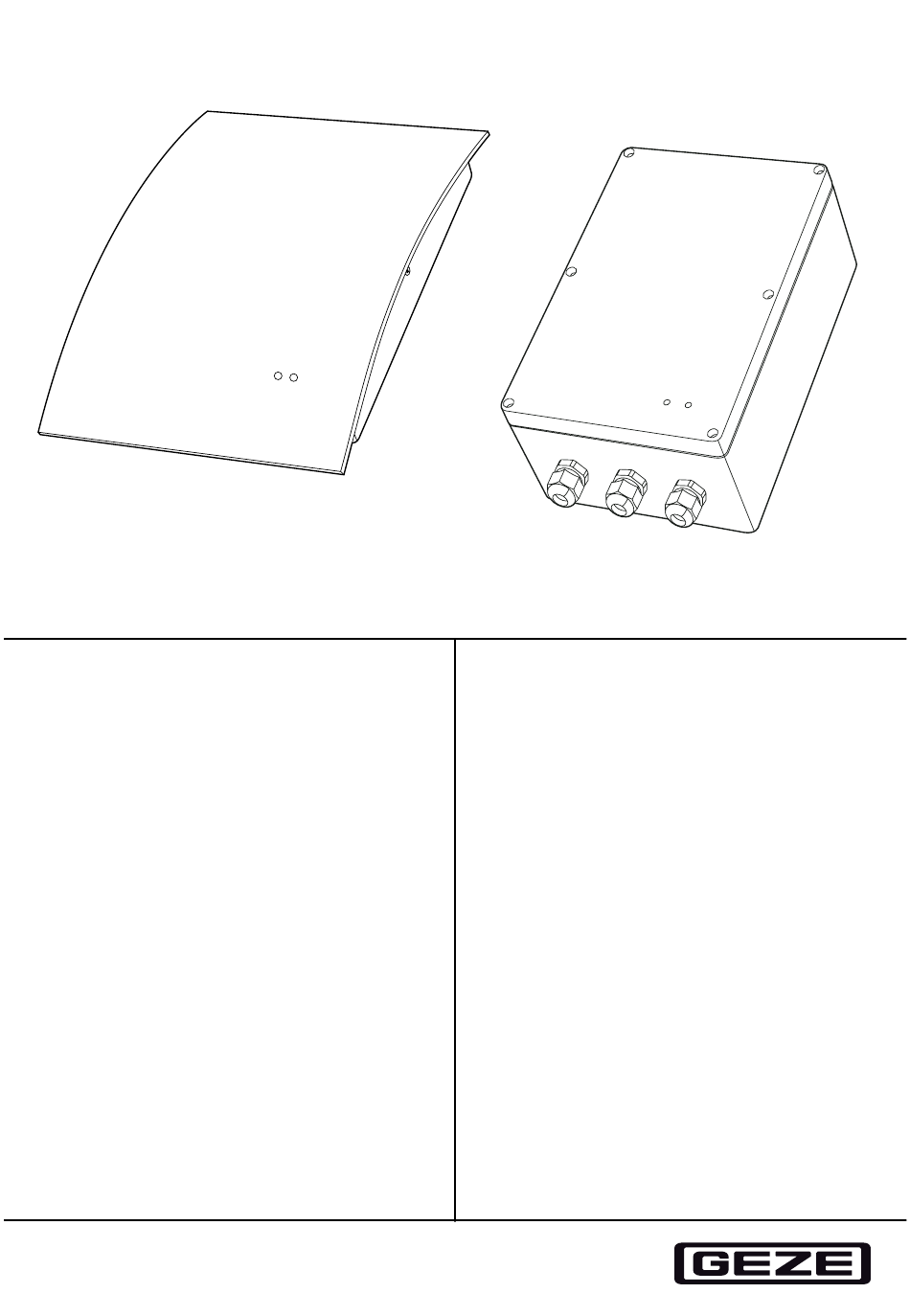

  • Page 1 GCLR-I 2000/ EN Manual GCLR-O 2000 GEZE Wide-range Reader Indoor/Outdoor 153069-01...
  • Page 2: Table Of Contents

    GCLR-I 2000/GCLR-O 2000 Contents Symbols and illustrations .................3 Revisions and validity ..................3 Product liability....................3 About this document ..................3 Safety notices ...................4 Intended use ....................4 General information ................4 Notes about installation ..............4 Notes on routing the cables ...............4 Danger of electric shock ..............4 Product description ................5...
  • Page 3: Symbols And Illustrations

    Non-observance releases the manu- facturer from his liability. à If unauthorised changes are made to the components, GEZE cannot be made liable in any way whatsoever for any resulting damages. à Use only spare parts and accessories approved by the manufacturer.
  • Page 4: Safety Notices

    DIN VDE 0100-610. Notes on routing the cables à Route cables as shown in the GEZE cable plan. à Define the installation position of the reader in advance. à Preliminary cable routing may not be necessary in connection with automatic drives.
  • Page 5: Product Description

    Authorisations can be issued without contact at a distance of up to 3.8 m using the GEZE wide-range reader. Usage options à Automatic door drives such as GEZE sliding door drives, swing door drives or automatic gates can be opened for barrier-free access when the door/gate is approached.
  • Page 6: Brief Instructions

    During installation, please heed the following: Choose the position of the reader in such a way that the LF scanned field produced covers the required area. The GCLR-I 2000 is suitable for installation indoors, the GCLR-O 2000 for installation outdoors.
  • Page 7 GCLR-I 2000/GCLR-O 2000 Installation and commissioning. 4.1.1 The LF scanned field The LF scanned field spreads spherically around the reader. The radius r can be adjusted to between 0.5 m and 3.8 m with the aid of a rotary potentiometer. LF scanned field, view from the front LF scanned field, view from above 4.1.2...
  • Page 8 Installation and commissioning. GCLR-I 2000/GCLR-O 2000 4.1.3 Checking the LF scanned field à Using the field tester: The LF scanned field can be checked using the field tester. Flashing LEDs indicate the field coverage. à Using the transponder with 2 keys: The transponder with 2 keys displays the scanned field through a red LED.
  • Page 9 GCLR-I 2000/GCLR-O 2000 Installation and commissioning.
  • Page 10: Step 2: Connect The Reader

    Installation and commissioning. GCLR-I 2000/GCLR-O 2000 Step 2: Connect the reader Transponders are taught using group button 1 on the GCLR. Activation of the door is via relay 1 of the GCLR through the respective input of the connected peripherals. Other products not shown here can be connected to relay 1 of the GCLR in the same way.
  • Page 11 GCLR-I 2000/GCLR-O 2000 Installation and commissioning.
  • Page 12: Step 3: Teach/Delete Transponders

    Installation and commissioning. GCLR-I 2000/GCLR-O 2000 Step 3: Teach/delete transponders Requirement The green LED on the housing and the green LED D5 on the control are permanently lit. Programming button group 1 Programming button group 2 LED, red LED, green...
  • Page 13: Overview Dip Switches

    GCLR-I 2000/GCLR-O 2000 Installation and commissioning. Function Action Feedback Deleting ALL transponders Press both program- The red LED D7 (3) flashes ming buttons "GR.1" (1) red quickly (0 … 6 s). + "GR.2" (2) at the same The red LED D7 (3) goes off time (>...
  • Page 14 Installation and commissioning. GCLR-I 2000/GCLR-O 2000 DIP switch 2: Interface Settings can be made in the configuration software via the RS232 interface on the reader System is in operation DIP switch 3: Mode of operation The reader can be operated both in the "networked" and "stand- alone"...
  • Page 15: Transponders

    GCLR-I 2000/GCLR-O 2000 Installation and commissioning. DIP switch 6-12: BUS addresses Up to 128 addresses can be set using DIP switches 6-12. Max. 2 addresses are required for connection to the GCDU 200. Address "0" = DIP switch 12 "OFF"...
  • Page 16 Installation and commissioning. GCLR-I 2000/GCLR-O 2000 RS485 interface. 4.5.6 Multiple use of transponders The transponders have individual ID numbers and can thus be taught at any number of readers at the same time. 4.5.7 Resetting to factory setting Activate both programming buttons "GR.1" (1) + "GR.2" (2) in the de- energized state.
  • Page 17: Led Display On The Gclr Housing

    GCLR-I 2000/GCLR-O 2000 Installation and commissioning. LED display on the GCLR housing The GCLR housing contains a green LED and a red LED. The two LEDs have already been pre-wired to the control outputs. The display differs depending on whether the system is working in net- worked mode or stand-alone mode of operation.
  • Page 18: Configuration Program - Wide-Range Reader Gclr 2000

    The following software and hardware is required for connecting PC and GCLR: à Program: Konfig_28.04.exe Can be found in the download section of the GEZE website à Adapter USB 2.0 for serial no. 163520 Installing the configuration program Administrator rights are necessary for installation.
  • Page 19 GCLR-I 2000/GCLR-O 2000 Configuration program – wide-range reader GCLR 2000 Pos. Area Explanation General information Displays the data read out of the GCLR Setting of the switching times If the field "Permanent" is activated, the output of the outputs and activation...
  • Page 20 Configuration program – wide-range reader GCLR 2000 GCLR-I 2000/GCLR-O 2000 Pos. Area Explanation Information about the tran- à "Key A" and "key B" indicate which key is sponder last read and the activated on a transponder with keys. current switching states of the à...
  • Page 21 GCLR-I 2000/GCLR-O 2000 Configuration program – wide-range reader GCLR 2000 5.2.1 Menu bar for the main menu The following settings can be made in the menu bar (1) of the main menu of the configuration program: Menu Menu item Explanation...
  • Page 22 Configuration program – wide-range reader GCLR 2000 GCLR-I 2000/GCLR-O 2000 5.2.2 Sub-menus in the area "Managing the transponder list" Key disable/output disable The sub-menu key disable/output disable can be found in the "Managing the transponder list" area: In the key disable/output disable sub-menu, the programming buttons GR.1 and GR.2 can be individually released or disabled.
  • Page 23: Setting Up A Connection With The Gclr 2000

    GCLR-I 2000/GCLR-O 2000 Configuration program – wide-range reader GCLR 2000 Setting up a connection with the GCLR 2000 Set DIP switch 2 on the GCLR to "ON". Press the button "Read out data" (1) in the main menu of the configuration program.
  • Page 24: "Networked Operation" Mode Of Operation

    "Networked operation" mode of operation GCLR-I 2000/GCLR-O 2000 "Networked operation" mode of operation In networked operation, the GCLR is connected to the GCDU 200 via an RS485 interface. Transponders are taught using the web-based user interface of the GCMU 524. This allows several GCLR units to be connected in a network and authorisations (who / when / where) to be managed centrally.
  • Page 25 GCLR-I 2000/GCLR-O 2000 "Networked operation" mode of operation...
  • Page 26 "Networked operation" mode of operation GCLR-I 2000/GCLR-O 2000 When the wide-range reader is used as a networked variant, the transmit- ters (GCLR ID TAG) are programmed via the web interface of the GCMU 524 (refer also to the GCMU 524 manual). The most important settings are the "System" settings as well as the "Pass/ PIN configuration"...
  • Page 27 GCLR-I 2000/GCLR-O 2000 "Networked operation" mode of operation Pass/PIN configuration In the main menu of the web interface GCMU 524, open the sub-menu "Pass/PIN configuration" (5). à Company code length (6): à Pass number length (7): See the GCMU 524 manual for details of the necessary settings such as configuration of the "Door Unit", the "Control modes", "Control points"...
  • Page 28: Wiring Diagrams

    Wiring diagrams GCLR-I 2000/GCLR-O 2000 Wiring diagrams Accompany function with automatic drives without emergency exit function The doors are closed in the basic state and in operating mode "Night" or "Automatic". Visitors and personnel can control the doors using the respective actuation devices such as push buttons, radar signals etc.
  • Page 29 GCLR-I 2000/GCLR-O 2000 Wiring diagrams...
  • Page 30: Accompany Function In Escape And Rescue Routes With Door Control Unit Tz 320

    Wiring diagrams GCLR-I 2000/GCLR-O 2000 Accompany function in escape and rescue routes with door control unit TZ 320 The doors are unlocked in their basic state and can thus be passed by personnel and visitors at any time. If a patient approaches a door he is not allowed to pass through, the door will be locked.
  • Page 31 GCLR-I 2000/GCLR-O 2000 Wiring diagrams...
  • Page 32: Control

    Wiring diagrams GCLR-I 2000/GCLR-O 2000 Control...
  • Page 33: Technical Data

    GCLR-I 2000/GCLR-O 2000 Technical data Technical data LF technology Low-frequency magnetic field 125 kHz Low-frequency range 1.0...3.8 m radius (adjustable via poti or RS232) Type of communication Unidirectional HF technology Radio frequency 868 MHz (ISM waveband, free of charge) Radio range Up to 50 m in an open environment...
  • Page 34 Technical data GCLR-I 2000/GCLR-O 2000 System memory Number of transponders 300 (optional extension) (stand-alone operation) Printed circuit board Dimensions (W x H x D) 150 mm x 120 mm x 25 mm Housing (indoor) Dimensions (W x H x D)
  • Page 35: Transponder List

    GCLR-I 2000/GCLR-O 2000 Transponder list Transponder list You can enter the transponder number and the name of the respective person here. This provides you with an overview of the assigned transponders. Transponder number Family name, first name Comment e.g. 0x00001404...
