Summary of Contents for VOXTRACK GPS-500
Page 1

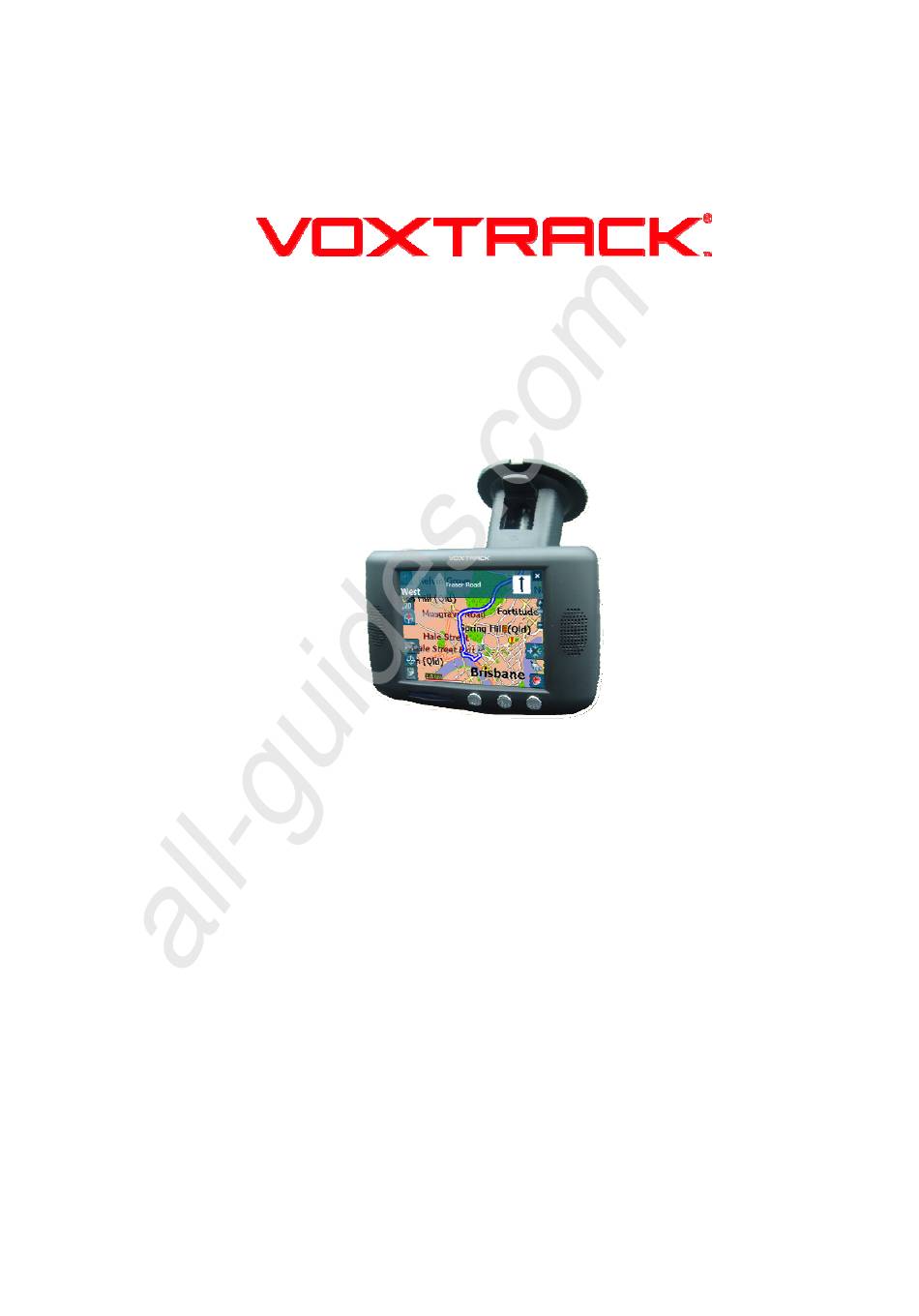

All manuals and user guides at all-guides.com GPS-500 Quick User Guide...
Page 2
All manuals and user guides at all-guides.com Front Components Loudspeaker Plays back voice prompts and warnings. SD/MMC Slot Accepts an optional SD (Secure Digital) or MMC (MultiMedia Card) card for map data storage. On/Off Button Turns the device on or off. Battery Charge The loading display will shine red during the Indicator...
Page 3
All manuals and user guides at all-guides.com Back Components External antenna Connection for an optional external GPS connection antennal. Connection to Power cable for output 5V Car adaptor port cigarette lighter. Main switch/ Disconnects the internal battery (also Hard Battery button Reset).
All manuals and user guides at all-guides.com Initial Set-up The following steps will guide you through the initial basic set up of the navigation system. 1. Charging the battery Attention: It may be necessary to charge the battery before initially switching on the device. Please pay attention to the following notes when handling the battery: The charge indicator is red until the navigation system is fully charged.
Page 5
All manuals and user guides at all-guides.com 2. Switching on the navigation system Remove the protective plastic from the screen and ensure the main power switch on the back of the unit is in the ON position. Attention: Always leave the main switch in the ON Position. The switch should only be set in the OFF position to preserve battery charge if the unit is to be stored for an extended period of time.
Page 6
All manuals and user guides at all-guides.com 3. Attaching the car mount Attention: Only fix the holder for the navigation system to the windscreen in a position that does not impede driver’s view of the road. Note: Clean the suction cup and the windscreen thoroughly with a glass cleaner.
Page 7
All manuals and user guides at all-guides.com 4. Connecting the car adapter 1. Plug the jack (1) of the car adapter cable into the corresponding receptor on the back of your navigation system. 2. Insert the power adapter (2) now into the cigarette lighter socket and ensure that it will not lose contact while driving.
