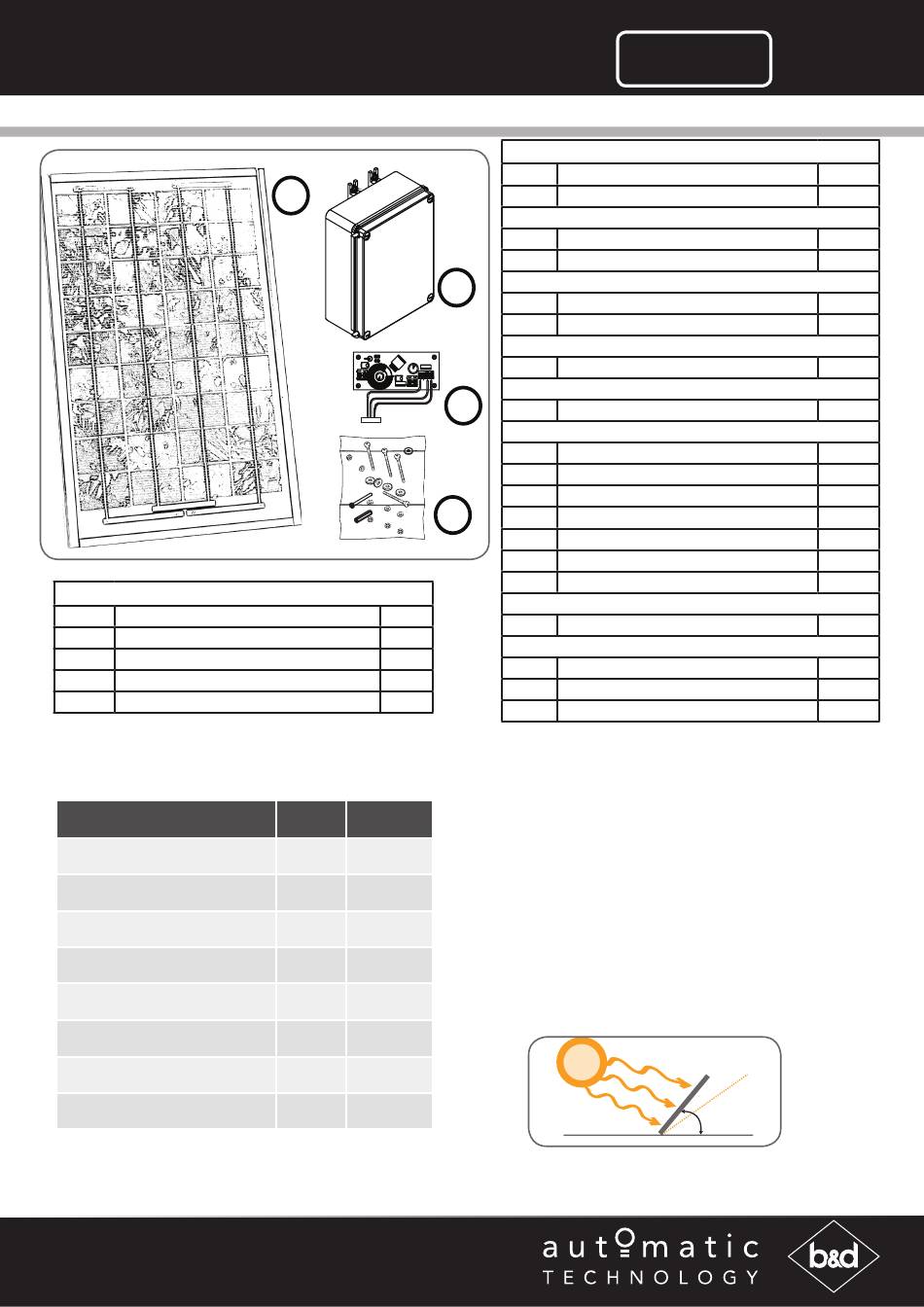

Automatic Technology SmartSolar KIT GEN 2 Manual

SmartSolar
Solar Power Kits For Automatic Technology Openers
SMARTSOLAR
ITEM DESCRIPTION
1 SOLAR PANEL - 30 WATT STP030-12/Lb
2 BATTERY PACK (2 X 12 Ah)
3 CHARGER BOARD (WITH HARNESS)
4 ACCESSORY PACK

Installing the Solar Panel

TOWN
HOBART
MELBOURNE
CANBERRA, ADELAIDE, AlLBANY
SYDNEY
NEWCASTLE, BROKEN HILL, PORT
AUGUSTA, PERTH
BRISBANE, OODNADATTA,
GERALDTON
TOWNSVILLE, TENNANT CREEK,
PORT HEDLAND
DARWIN
Doc # 160035_03
Part # 13345
Released 18/10/16
1
KIT GEN2
TM
QTY
1
1
1
1
Latitude Panel Angle
(L°) (α°)
42.5º S 57.5º
37.5º S 52.5º
35º S 50º
33.5º S 48.5º
32.5º S 47.5º
27.5º S 42.5º
20º S 35º
5º 20º
Kit
™
ACCESSORY PACK
ITEM DESCRIPTION
5 2 PIN SOLAR SHUNT
GEWIS MOUNTING KIT (64805)
6 MOUNTING LUGS FOR GEWISS BOX
7 SCREW "P" M3.5 X 13
SOLAR BATTERY CABLE KIT (61821)
2
8 CABLE 2 CORE R&B X 1.0MM (2.5M)
9 NYLON GLAND M16-07B
SOLAR PACK 01 (61783)
10 PAN HEAD SCREW M4 X 8
SOLAR PACK 02 (61784)
3
11 TAPTITE SCREW "P" M4 X 8
SOLAR PACK 03 (61492) (GDO-8 ONLY)
12 BRUSH CARD 2047 L/F HARNESS
13 NYLON CABLE GLAND PGB7-07B
14 PAN HEAD SCREW M6 X 12
4
15 WASHER 6.4X20.6X1.2 GAL
16 WASHER RUBBER 1/16'X1"X3/8"
17 TIE MOUNT CM-13 (ADHEISIVE)
18 CABLE TIE 4" GT-100M
SOLAR PACK 04 (61786)
19 TAPTITE SCREW "P" M3 X 8
SOLAR PACK 05 (61787) (GDO-9 ONLY)
20 THRUSS SER HD SCREW "S" M4 X 8
21 TAPTITE SCREW "P" M4 X 8
22 PCB SUPPORT 76X27
Unpack the Kit
Unpack the Battery Box and the Solar Panel and inspect them for any
damage in transit.
Mount the Solar Panel
a. Determine a mounting point for the solar panel as close as possible
to the intended opener. The length of cable from solar panel to solar
charger must not exceed 5m.
b. The solar panel should be faced to the North for maximum effect. Solar
panel output is directly proportional to the amount of sunlight to which
it is exposed. Thus, the panel should be positioned to the north due
to Australia's southern location.
c. The angle to tilt the solar panel for maximum exposure to the sun is
determined by the following equation:
Where "α°" is panel's tilt angle from the horizontal, and "L°" is
the latitude of the mounting location. Refer to table, for a list of
pre-calculated panel angles for major centres in Australia.
Gen 2
α° = L° + 15°
L°
α°
QTY
1
4
4
1
1
4
4
1
2
1
1
1
4
4
4
2
3
1
