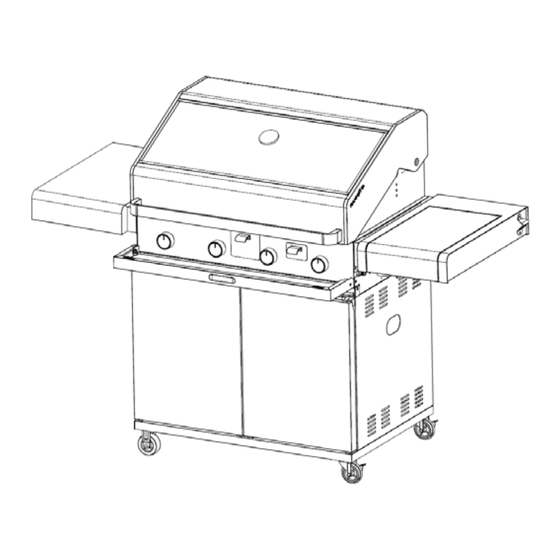

Fiammetta MOMENTUM HS-18MA9401 Assembly & Operating Instructions

4 burner with wok side burner

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the MOMENTUM HS-18MA9401 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fiammetta MOMENTUM HS-18MA9401

Page 2 ASSEMBLY & OPERATING INSTRUCTIONS MOMENTUM 4 BURNER WITH WOK SIDE BURNER Model: HS-18MA9401 Handy Hints • Ensure your BBQ is level before use so excess fat and oil can freely flow to the oil cup in the front of the BBQ. •...
Page 3: Important Safety Warnings
IMPORTANT SAFETY WARNINGS FOR OUTDOOR USE ONLY 1. DO NOT OPERATE THIS APPLIANCE BEFORE READING THE INSTRUCTION BOOKLET. 2. DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE. 3. DO NOT STORE CHEMICALS OR FLAMMABLE MATERIALS OR SPRAY AEROSOLS NEAR THIS APPLIANCE. 4.
Page 5: General Information
General Information Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment Strong winds and low temperatures can affect the heating and performance of your BBQ so factor in these elements when positioning your BBQ outdoors for cooking.
Page 6: Exploded View
Exploded View...
Page 7: Parts List
Parts List 1 Cooking grill x 2 2 Hotplate 3 Warming rack 4 Firebox 5 Flame tamer x 2 6 Left side table 7 Right side table 8 Side burner trivet 9 Regulator & hose 10 Left side panel of 11 Crossbeam 12 Bottom panel of cabinet...
Page 8: Hardware Pack
21 Castor with lock x2 22 Plastic backing board 23 Control knob 24 Control knob seat 25 Grease tray 26 Smoker Tray 27 Grease Cup 28 Handle seat x 2 29 Handle tube 30 Scraper Tool Hardware Pack Screw:M6*12 Washer:M6 Spring washers:M6 Screw:M5*10 M4 Nut...
Page 9: Assembly Steps
Assembly Steps Remove all packaging and transit protection materials from parts before assembly. STEP 1 Assemble the door magnet panel (19) on the bottom panel of cabinet (12) by screw（A）2pcs as shown. Assemble the plastic backing board (22) on the bottom panel of cabinet (12) by screw (E) 3pcs and Nut (F) 3pcs as shown.
Page 10 STEP 3 Assemble left side panel of cabinet (10), back panel of cabinet (13) and right side panel of cabinet (17) on the bottom panel of cabinet (12) by screw (A) 14pcs as shown. STEP 4 Assemble the side panel support of cabinet (18) on the bottom panel of cabinet (12) by screw (A) 8pcs as shown.
Page 11 STEP 5 Assemble crossbeam (11) on the cabinet by screw（A）4pcs as shown. STEP 6 Assemble separation panel of cabinet (14) on the cabinet by screw (A) 4pcs as shown.
Page 12 STEP 7 Assemble the left side door (15) and right side door (16) on the cabinet as shown. STEP 8 Assemble the handle tube (29) and handle seat (28) as shown in photo A. Assemble the complete handle on the hood by screw (A) 4pcs as shown in photo B.
Page 13 STEP 9 Assemble the firebox (4) on the cabinet by screw (A) 4pcs as shown. STEP 10 Assemble the left side table (6) and the right side table (7) on the firebox by screw (A) 8pcs as shown. Note: 8pcs screws already in position on firebox sides.
Page 14 STEP 11 Assemble control knob seat (24) on the side valve by screw (E) 2pcs as shown, put the control knob (23) on the valve bar as shown.
Page 15 STEP 12 Assemble the injector bracket by screw (D) 2pcs as photo A and B shown.
Page 16 STEP 13 Insert the ignition wire as shown. STEP 14 Insert grease cup (27) and smoker tray (26) on the control panel as shown.
Page 17 STEP 15 Insert the flame tamer (5) on the firebox as shown. Step16 Insert the cooking grill (1) and hotplate (2) on the firebox as shown.
Page 18 Step17 Insert the warming rack (3) on the firebox and side burner trivet (8) on the side burner as shown. Fully assembled BBQ...
Page 19 CONNECTION TO LPG CYLINDER LEAK TESTING Leak testing must be done the first time you connect up the BBQ, and whenever the LPG cylinder is re-connected to the BBQ. Always inspect the hose at regular intervals to check for cracks or abrasion. Connect the regulator to the LPG cylinder and tighten the connection.
Page 20: Lighting Procedure
LIGHTING PROCEDURE  Lighting the BBQ is easy, but must be done with due care.  Make sure the LPG cylinder is filled.  Make sure that gas is turned on at the cylinder, or that gas is available to the BBQ. ...
Page 21: Using The Smoker Tray
CONTROLLING THE FLAMES The knobs have three basic positions. You can achieve any flame height between low and high by rotating the knob between these positions. High Note: ‘Light back’ is a situation where the flame burns inside the burner, towards the front, recognized by a sharp roaring sound coming from the burner.
Page 22: After Use
BBQ TIPS Before cooking, coat the hotplate with oil. This will prevent food from sticking. Open the hood and light the burners to preheat the BBQ. Avoid continually turning the meat over. When cooking internal juices rise to the surface of the meat and then settle.
Page 23: Periodic Cleaning
PERIODIC CLEANING Your BBQ will look better and last longer if you keep it clean. You should check the burners periodically for any sort of blockage. To do this, remove and inspect them. If any of the holes are clogged, gently tap the burner onto a hard surface to remove residue. Use a wire brush to unclog the holes.
Page 24 7. Refer to figure below and perform one of these three cleaning methods. Bend a stiff wire, (a lightweight coat hanger works well) into a small hook as shown below. Run the hook through the burner tube and inside the burner several times to remove any debris. Use a bottle brush with a flexible handle.
Page 25 Step 2 Disassemble M5 4pcs screws as shown. Step 3 According arrow remove the glass out as shown. Step 4 According arrow instruction to remove all the parts from the glass as shown.
Page 26 Step 5 According arrow instruction to assemble all the parts on the glass as shown. Step 6 According arrow instruction to assemble the glass on the hood as shown. Step 7 Assemble the side panels on the hood by M5 4pcs as shown. Fit the temperature gauge on the glass.
Page 27: Care And Maintenance
STORAGE 1. Ensure the BBQ is properly cooled. 2. Storage of this gas BBQ indoors is permissible only if the gas cylinder is disconnected and removed from the BBQ. 3. Store the BBQ in a cool dry place. 4. Always disconnect the gas cylinder and store it in a safe place, never store a gas cylinder on its side. 5.
Page 28 BBQ LOCATION - Outdoor Areas This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with one of the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
Page 29 Both ends open OUTDOOR AREA-EXAMPLE 3 OUTDOOR AREA-EXAMPLE 4 Open sides at least 25% 30% or more in total of the remaining of total wall area wall area is open and unrestricted OUTDOOR AREA-EXAMPLE 5 Open sides at least 25% of total wall area 30% or more in total of the remaining wall area...
Page 30: Specifications
SPECIFICATIONS REGULATOR & HOSE ASSEMBLY: 2.75kPa, POL type regulator and 8mm ID, Class A hose with 3/8SAE Female outlet. AGA approved. Burner Configuration Table - Propane BURNERS NOMINAL GAS TEST POINT INJECTOR CONSUMPTION PRESSURE SIZE 12MJ/h (per burner) 2.75kPa 1.0mm Side 15MJ/h 2.75kPa...
Page 31 INSTRUCTIONS FOR CONNECTION TO NATURAL GAS This BBQ has been configured for use with LPG from a gas cylinder. If you want to connect this BBQ to a permanent Natural Gas supply, the following steps must be undertaken. 1/ Contact a licensed plumber or gas fitter and arrange a quote to convert this BBQ to Natural Gas, install any pipework necessary to bring a natural gas supply to the installation area and commission the BBQ.
Page 32: Product Warranty
PRODUCT WARRANTY Thank you for purchasing one of our quality FIAMMETTA products. Your FIAMMETTA product is covered against defects for a period of 12 months for parts and labour, repair or replacement. This warranty excludes surface rust and damage caused by abuse or neglect.
Page 33: Installation Conditions
Please thoroughly read conditions of RECORD THE FOLLOWING warranty. INFORMATION • Attach a copy of the purchase receipt here: The appliance must be operated and maintained in accordance with the Date of purchase……………………………….. instructions supplied in the operating manual. Purchased from………………………………... •...
