Line of Sight LOS-CPU-MTC-B Installation Instructions

Line of Sight Thin Client, Micro CPU Holder Installation
Instructions: LOS-CPU-MTC-B

Parts Included

A
Thin Client, Micro CPU
Rear Plate
Qty: 1
Required, Sold Separately
Line of Sight Workcenter

Tools Needed

#2 Phillips Screwdriver
Note: CPU placement will depend on your over all
room configuration, Switch locations, Grommet Power
choices and in some instances, cable lengths. Consider
all wiring objectives prior to installing CPU Holders.
Single User Workstations can be configured with the
CPU on either the left or right side of the Chassis. Dual
User Workstations can be configured Left, Right, Inside
or Outside. Make sure you anticipate all cabling needs
and install the CPU Holder(s) accordingly.
1

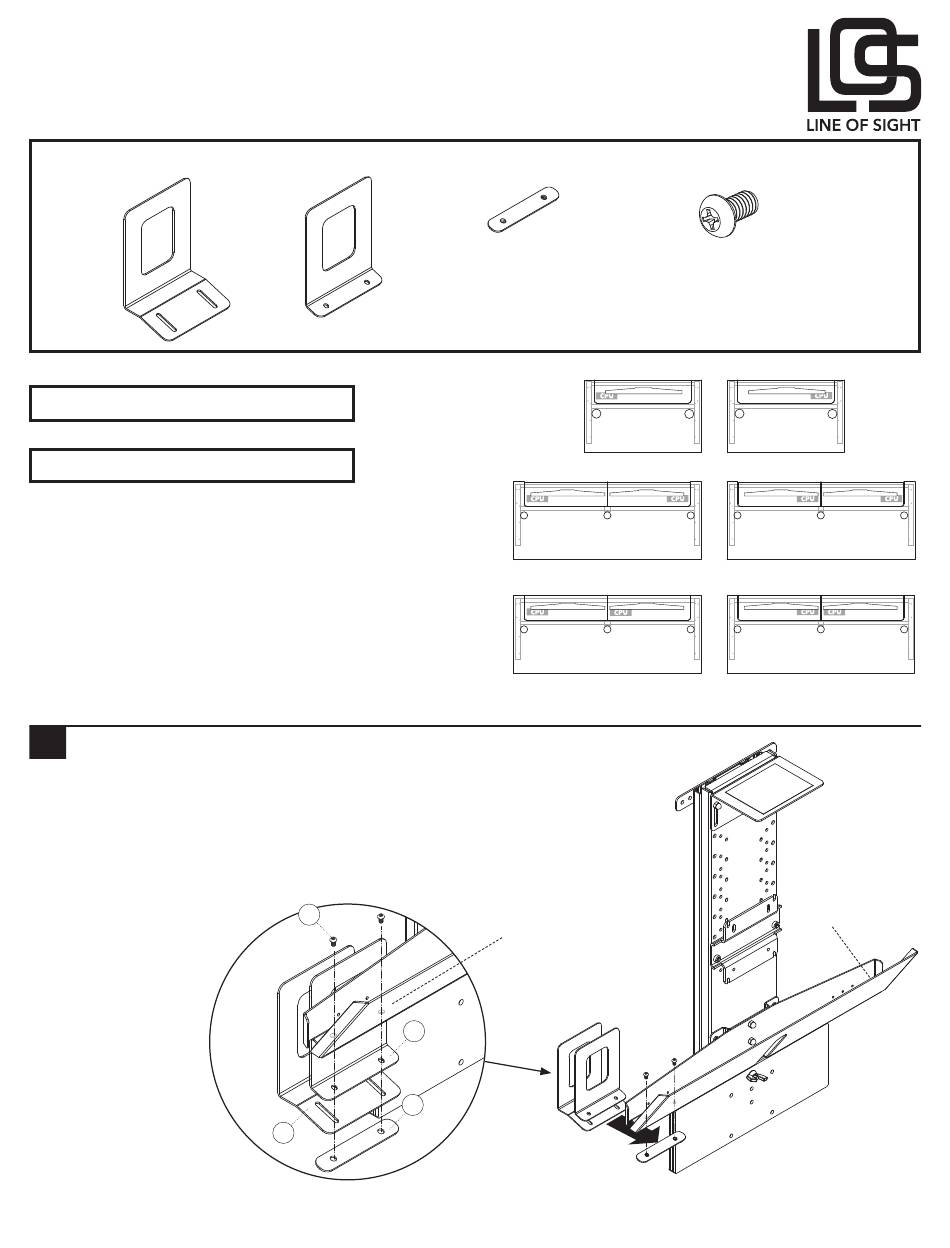

Attach CPU Holder Plates to Keyboard Tray

Attach the Rear Plate (A), Front Plate (B) and Nut Plate (C) to the
Keyboard Tray on either the left or right side with two #10-32 × ½"
Phillips Cap Head Screws (D). Secure, but do not tighten!
Note: Keep fasteners loose so you can adjust for the width of the
CPU in the next step.
1 of 2
B
Thin Client, Micro CPU
Front Plate
Qty: 1
D
B
C
A
Shown installed on Left
C
Thin Client, Micro CPU
Nut Plate
Qty: 1
Dual Outside
(preferred)
Dual Left
Keyboard Tray
Line of Sight | (800) 463-7731 | los.workriteergo.com
D
#10-32 × ½" Phillips
Cap Head Screw
Qty: 2
Single Left Single Right
Dual Right
Dual Inside
(avoid-may conflict with USB & switch)
Shown on a Manual Monitor Lift
Right Side
Location
