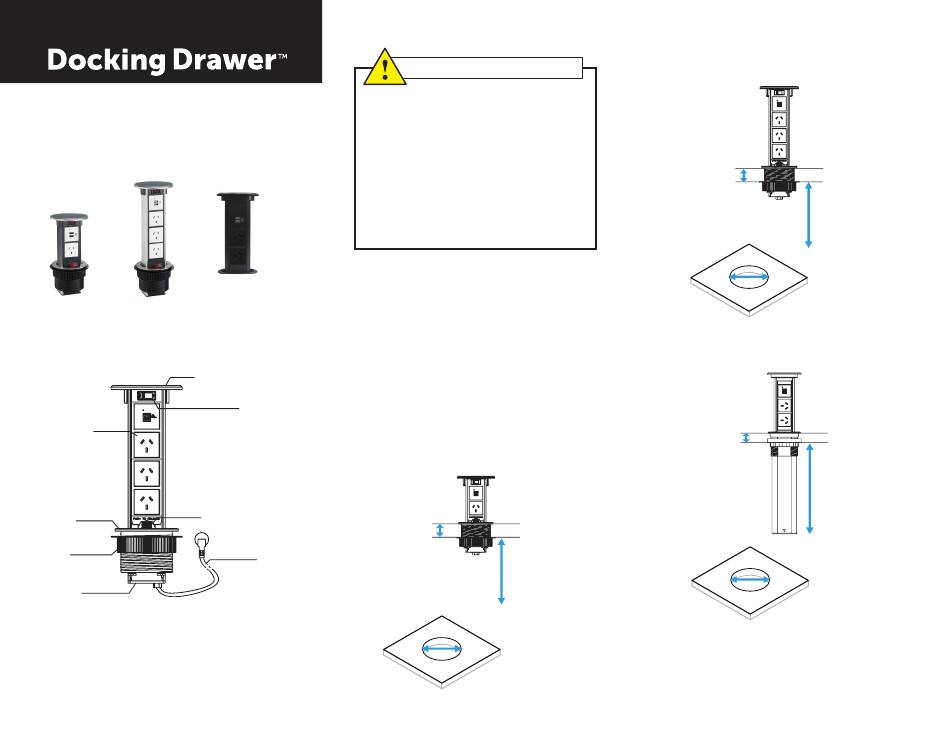

JTech Solutions Docking Drawer 0290-00902-AUS Installation Instructions

AUS Pop-Up Powering Outlet
Installation Instructions
0290-00902-AUS 0290-00904-AUS 0290-00903PQI-AUS
0290-00902QI-AUS 0290-00904QI-AUS
COVER
OVERLOAD SWITCH
MODULE
RELEASE BUTTON
BODY
FIXED RING
POWER CORD
BOTTOM CAP
Visit our Support Library at
support.dockingdrawer.com to find additional
mounting diagrams and cut out templates.
CAUTION – READ CAREFULLY
•
For indoor use only.
•
Avoid liquid flowing into the socket.
•
Be sure to ground connection.
•
Do not disassemble without permission.
•
If something goes wrong, please have
repaired by a professional.

How to Install the Outlet

Step 1 -
Select a location for the pop-up
outlet that meets the following requirements:
•
The edge of the cut out should be at least
40mm from the nearest wall.
•
A power outlet should be within 1.5 meters
of the installation cut out for the power cord
to reach.
0290-00902-AUS
0290-00902QI-AUS
10-45
mm
countertop
400
thickness
of space needed
under countertop
Cut out size
95-100
0290-00902-AUS
0290-00902QI-AUS
10-45
mm
countertop
thickness
0290-00903PQI-AUS
10-50
mm
countertop
thickness
mm
Step 2 -
Cut a hole in surface of the
mm
countertop using the above requirements of
your corresponding model.
400
mm
of space needed
under countertop
Cut out size
95-100
mm
405
mm
of space needed
under countertop
Cut out size
105
mm
