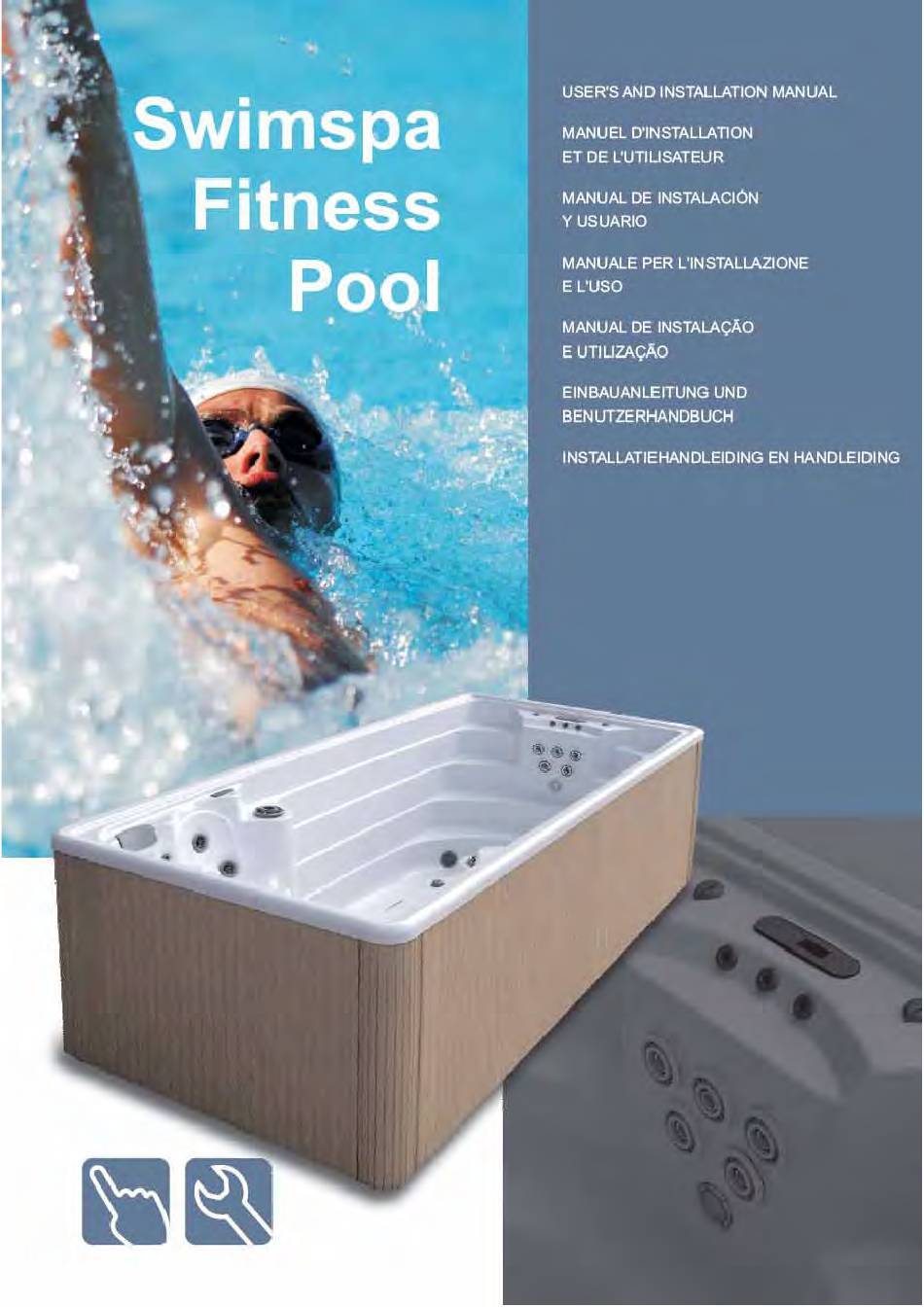

Summary of Contents for Aquaavia SWIMSPA
- Page 2 SPECIFICATIONS SPÉCIFICATIONS ESPECIFICACIONES CARATTERISTICHE SPEZIFIKATIONEN SPECIFICAÇÔES...
- Page 3 ATTENTION - VERY IMPORTANT ENGLISH This equipment cannot bo connected to a normal plug. This equipment requires suitable electrical installation. This should be done by a specialised fitter following the local electrical safety regulations. The electrical input of the Spa should always be protected by a highly sensirive differential. Earthling connection is essential.
-
Page 4: Table Of Contents
User’s and installation manual SWIMSPA – FITNESS POOL English TABLE OF CONTENTS IMPORTANT: SAFETY INSTRUCTIONS ........................6 SAFETY INSTRUCTIONS ............................6 ADDITIONAL SAFETY INSTRUCTIONS: ......................... 7 INSTALLATION & SET-UP..............................8 SELECTING A SITE FOR YOUR POOL ........................8 ELECTRICAL REQUIREMENTS & CONNECTION....................10 CHECKLIST BEFORE FILLING YOUR POOL...................... -
Page 5: Important: Safety Instructions
User’s and installation manual SWIMSPA – FITNESS POOL English swimming. Lower water temperatures are IMPORTANT: SAFETY not recommended. (Before entering the INSTRUCTIONS pool check the temperature.) b) Since excessive water temperatures have SAFETY INSTRUCTIONS a high potential for causing foetal damage... -
Page 6: Additional Safety Instructions
User’s and installation manual SWIMSPA – FITNESS POOL English 7. WARNING - Risk of Injury. ADDITIONAL SAFETY INSTRUCTIONS: Individuals with infectious diseases should not use the Fitness Pool. 1. WARNING - Risk of Fatal Hyperthermia. a) The use of alcohol, drugs, or medication can greatly increase the risk of fatal 8. -
Page 7: Installation & Set-Up
User’s and installation manual SWIMSPA – FITNESS POOL English Note: Typical indoor surfaces include, but are not limited to: concrete, wood, non-slip tile, or INSTALLATION & SET-UP linoleum. SELECTING A SITE FOR YOUR POOL Outdoor Considerations: When selecting an outdoor site, several things... - Page 8 User’s and installation manual SWIMSPA – FITNESS POOL English Practical examples of right and wrong installations. If you have the inground version of the Swimspa, please follow the next instructions: RIGHT The Spa structure must be fixed on the floor.
-
Page 9: Electrical Requirements & Connection
User’s and installation manual SWIMSPA – FITNESS POOL English Your 220/240 Volt Fitness Pool requires a ELECTRICAL REQUIREMENTS & fused and dedicated 32AMP electrical circuit CONNECTION and a minimum supply wire size of 10 mm. It is important that these circuits are dedicated... - Page 10 User’s and installation manual SWIMSPA – FITNESS POOL English connected to either of these two terminals We strongly recommend that a suitable seal before being removed. cable guide is installed to retain the water tight seal of the control boxes.
- Page 11 User’s and installation manual SWIMSPA – FITNESS POOL English Correct earthing is essential The earthing circuit of the building should always be in perfect condition to guarantee the safety of Spa users. If you have any doubts on this, ensure...
-
Page 12: Checklist Before Filling Your Pool
User’s and installation manual SWIMSPA – FITNESS POOL English the fittings and equipment in the equipment compartment for signs of leakage. CHECKLIST BEFORE FILLING YOUR POOL If a leak is detected, except from fittings Important: The equipment should never be... -
Page 13: Operation
User’s and installation manual SWIMSPA – FITNESS POOL English OPERATION and Light, set the Temperature, the filtration CONTROL OF THE FITNESS POOL cycles and Time. A – Jetstream control D - Colour led push-button (Optional) With the jetstream control you can choose the... - Page 14 Leds colour light (Optional) to stop the pump. If left running, the pump will turn off after 30 minutes. If your Swimspa has a colour leds light, press the button "Light" of the main panel to turn “Blower” Air pump on and off the light.
- Page 15 User’s and installation manual SWIMSPA – FITNESS POOL English the display will show the spa temperature and “TL”. Unlocking the temperature only Press the “Warm” o “Cool” button then “Time” and after “Jets 1” then “Cool”. The “TL” symbol will disappear and the control pad buttons will work again.
-
Page 16: Initial Start-Up
User’s and installation manual SWIMSPA – FITNESS POOL English INITIAL START-UP “FILTER 2” “START TIME” Control System GL2000M3 – Proceed in the same way indicated previously. Main control panel Press “Mode/Prog”, and it will show: Time of day and automatic filter program “PROGRAM”... -
Page 17: Operation Of Jetstream System
User’s and installation manual SWIMSPA – FITNESS POOL English screen. If you press “Mode/Prog” the spa will go to the economy mode directly. Swimspa counter currents In Sleep mode the pool functions as in the Jet strength adjustment Economy mode but the temperature set point is automatically set back 10°C (if you set 30°C... -
Page 18: Auxiliar Control Panel
User’s and installation manual SWIMSPA – FITNESS POOL English Activation of massage Jets Turn the outer ring a quarter anti- clockwise to open the jet. Press “Jets 1” y “Jets 2” and water will start to flow by the jets. Press again this buttons to stop jets. -
Page 19: Screen And Diagnostic Messages Of The Panel
User’s and installation manual SWIMSPA – FITNESS POOL English SCREEN AND DIAGNOSTIC MESSAGES OF THE PANEL The screen of the main panel shows the water temperature and the state of other functions, like: - The running mode, showing “Standard”, “Economy” or “Sleep”. - Page 20 User’s and installation manual SWIMSPA – FITNESS POOL English SENSOR into the Sensor “B” jack is not maintenance service. (The message may appear SERVICE working. briefly situations overheating disappear when the Spa cools). Sensors are out of balance. If If the problem persists, contact your dealer or...
- Page 21 User’s and installation manual SWIMSPA – FITNESS POOL English Troubleshooting PROBLEMS REASONS SOLUTIONS Insufficient flow of Filter is blocked by dirt. Wash the filter. filtered water. The massage pump The cable of the digital control Connect the cable to the board.
-
Page 22: Anti-Freeze Protection
User’s and installation manual SWIMSPA – FITNESS POOL English ANTI-FREEZE PROTECTION MAINTENANCE INSTRUCTIONS If the temperature sensors detect a drop in OF THE SPA temperature to below 6.7ºC, the heating element filter pump will connect automatically to prevent the water... -
Page 23: Maintenance Of Cartridge Filters
User’s and installation manual SWIMSPA – FITNESS POOL English MAINTENANCE OF CARTRIDGE FILTERS Your Swimspa includes one filter (Standard version) or two cartridge filters (Deluxe version). It is advisable to periodically check the condition cartridge filter. recommend to do it once a week if you use your Swimspa very often. -
Page 24: Maintenance Of The Acrylic
Contact your supplier. Fine scratches should be filled using a similar coloured hard wax filler. These can be found If you have a habitual use of your Swimspa, in most hardware stores. change the filter once every 6 months or when you observed it spoilt. -
Page 25: Maintenance In Periods Of Non-Use Or Absence
User’s and installation manual SWIMSPA – FITNESS POOL English Fit the aforementioned plastic spanner in Leave the drain valve open. the front side of the spotlight and turn it Remove the filter cartridge/s from the in order to release its bayonet fastening. -
Page 26: Maintenance Of The Water
User’s and installation manual SWIMSPA – FITNESS POOL English pH ADJUSTMENT MAINTENANCE OF THE WATER A pH index of between 7.2 and 7.6 is The user must pay particular attention to the recommended. maintenance of water. Maintenance will The pH level measures the acidity and... -
Page 27: Use Of Special Products
User’s and installation manual SWIMSPA – FITNESS POOL English BROMIDE TABLETS are a suitable disinfectant The capacity of ozone as a disinfectant is due for the Spa water. This product is placed in to its potential as an oxidizing agent, which the pre-filter and gradually dissolves. -
Page 28: Quick Guide To The Application Of Chemical Products
User’s and installation manual SWIMSPA – FITNESS POOL English QUICK GUIDE TO THE APPLICATION OF CHEMICAL PRODUCTS Reason for Use Amounts per m Frequency of use water pH MINOR SPA Add if the pH level is Add following Analyse the pH daily... -
Page 29: Swimspa Download
User’s and installation manual SWIMSPA – FITNESS POOL English SWIMSPA DOWNLOAD A. SWIMSPA – CONTAINER DOWNLOAD 3.000 kg 41902E EN-V00... -
Page 30: Swimspa - Container Download
User’s and installation manual SWIMSPA – FITNESS POOL English B. SWIMSPA – CONTAINER DOWNLOAD 3.000 Kg C. SWIMSPA – TRUCK DOWNLOAD 3.000 Kg 41902E EN-V00... -
Page 31: Swimspa - Installation
User’s and installation manual SWIMSPA – FITNESS POOL English D. SWIMSPA – INSTALLATION Dimensions: 530 x 234 x 155 cm 13 mm Ø 10 41902E EN-V00... -
Page 32: Service
User’s and installation manual SWIMSPA – FITNESS POOL English SERVICE Before requesting service from your dealer, refer to the Trouble Shooting Guide in this Owner's Manual to determine the necessary coarse of action. If you are not able to solve the problem using the Trouble Shooting Guide, please contact your authorized Portable Fitness Pool Dealer.
