Whelen Engineering Company FastTrax FTF5 Installation Manual page 4

Feed this bundle
thru the side brace
cable entry opening in
the "C" pillar and
through the support
brace until it exits out
of the cable exit open-
ing shown in this pic-
ture. Route the cable
bundle up through the
grommeted hole. Be
sure to pass a mini-
mum of 18" of cable
through this hole and
out onto the roof.
Apply a generous
amount of RTV to the
grommet hole to
completely water-
proof this opening.
Insert the remaining pinned end of the cable bundle through the cable entry opening in the
"C" pillar and down through the "C" pillar until it enters the trunk area of the vehicle. In the trunk,
route the cable bundle towards the ISP8HS. The basic cable path is as shown.
Repeat this entire procedure using a cable bundle consisting of the remaining cables (S1, S3,
S5, S7 and H4) bundled together and routed along the driver-side support brace.
Insert the cable wire terminals into their plug connectors as follows:
Strobe Cable
Pin #1 - RED
Pin #2 - BLACK
Pin #3 - WHITE
The FastTrax™ housing mounting surface will now be prepared.

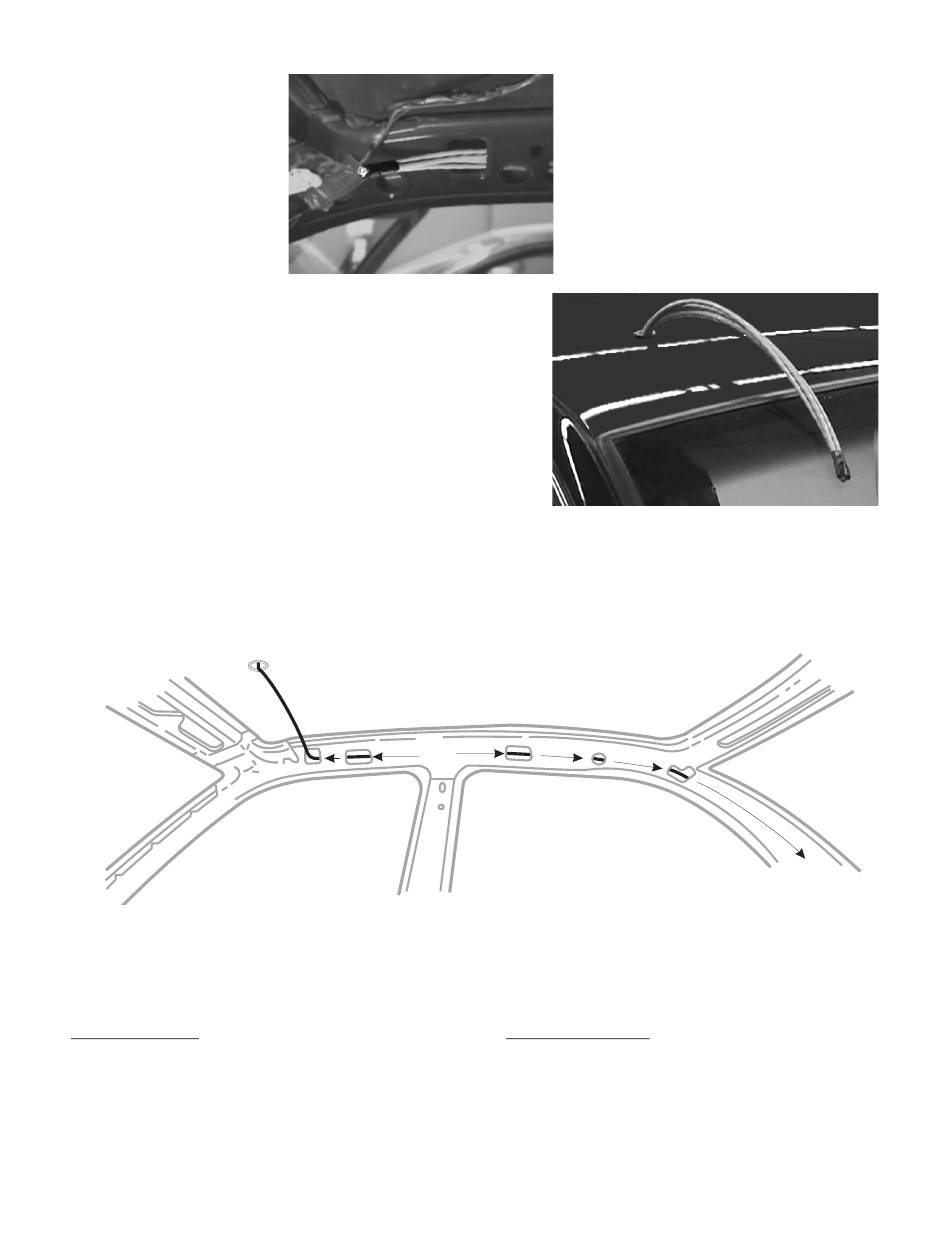

Cable bundle exiting
passenger-side
cable access hole
To
To
Power Supply
Lighthead
Halogen Cable
Pin #1 - WHITE
Pin #2 - NO CONNECTION
Pin #3 - BLACK
Page 4 of 9
Cable bundle exiting
passenger-side
cable exit opening
