Whelen Engineering Company FastTrax FTR3 Installation Manual page 7

A Note On Painting the FastTrax™ Housing...
If painting or re-painting
your FastTrax housing, it is
important to keep in mind
the following information:
• Do not apply paint or
primer to any of the
black-colored area
immediately adjacent
to the clear outer lens!
• Do not apply paint or
primer to the under-
side of the housing.
• Make sure that all sur-
faces to be painted
have been primed
using primer that is
suitable for ABS plas-
tic.
• Be sure to include the
leading edges (mate-
rial thickness) in your
painting surfaces.
FTF3 DIP SWITCH
SETTINGS:
1 2
3 4
0FF OFF
ON OFF
STROBE SPECIFICATIONS
INPUT VOLTAGE - - - - - - - - - - - - - - 12.8 VDC ± 20%
INPUT CURRENT
2 STROBES - - - - - - - - - - - 4.5 AMPS (TYP)
4 STROBES - - - - - - - - - - - 9 AMPS (TYP)
INPUT POWER - - - - - - - - - - - - - - - - 230 WATTS (TYP)
ANODE VOLTAGE- - - - - - - - - - - - - - 450 VDC (MAX)
TRIG. VOLTAGE - - - - - - - - - - - - - - - 150 VDC (MIN)
ENERGY PER FLASH - - - - - - - - - - - 7.9 / 3.8 / 3.8 / 3.8
FLASHRATE - - - - - - - - - - - - - - - - - - 140 CFPM
OUTPUT POWER - - - - - - - - - - - - - - 22.5 WATTS (TYP)
(PER OUTLET)
HALOGEN SPECIFICATIONS
INPUT VOLTAGE - - - - - - - - - - - - - - 12.8 VDC ± 20%
INPUT CURRENT
2 LAMPS - - - - - - - - - - - - - 4.5 AMPS (TYP)
4 LAMPS - - - - - - - - - - - - - 9 AMPS (TYP)
6 LAMPS - - - - - - - - - - - - - 13.5 AMPS (TYP)
INPUT POWER - - - - - - - - - - - - - - - - 230 WATTS (TYP)
OUTPUT VOLTAGE- - - - - - - - - - - - - INPUT VOLTAGE - 1V
ON TIME - - - - - - - - - - - - - - - - - - - - 125 mS (TYP)
OFF TIME - - - - - - - - - - - - - - - - - - - - 125 mS (TYP)
FLASHRATE - - - - - - - - - - - - - - - - - - 120 DFPM ±5%
OUTPUT POWER - - - - - - - - - - - - - - 50 WATTS (MAX)
(PER OUTLET)
Page 7 of 9

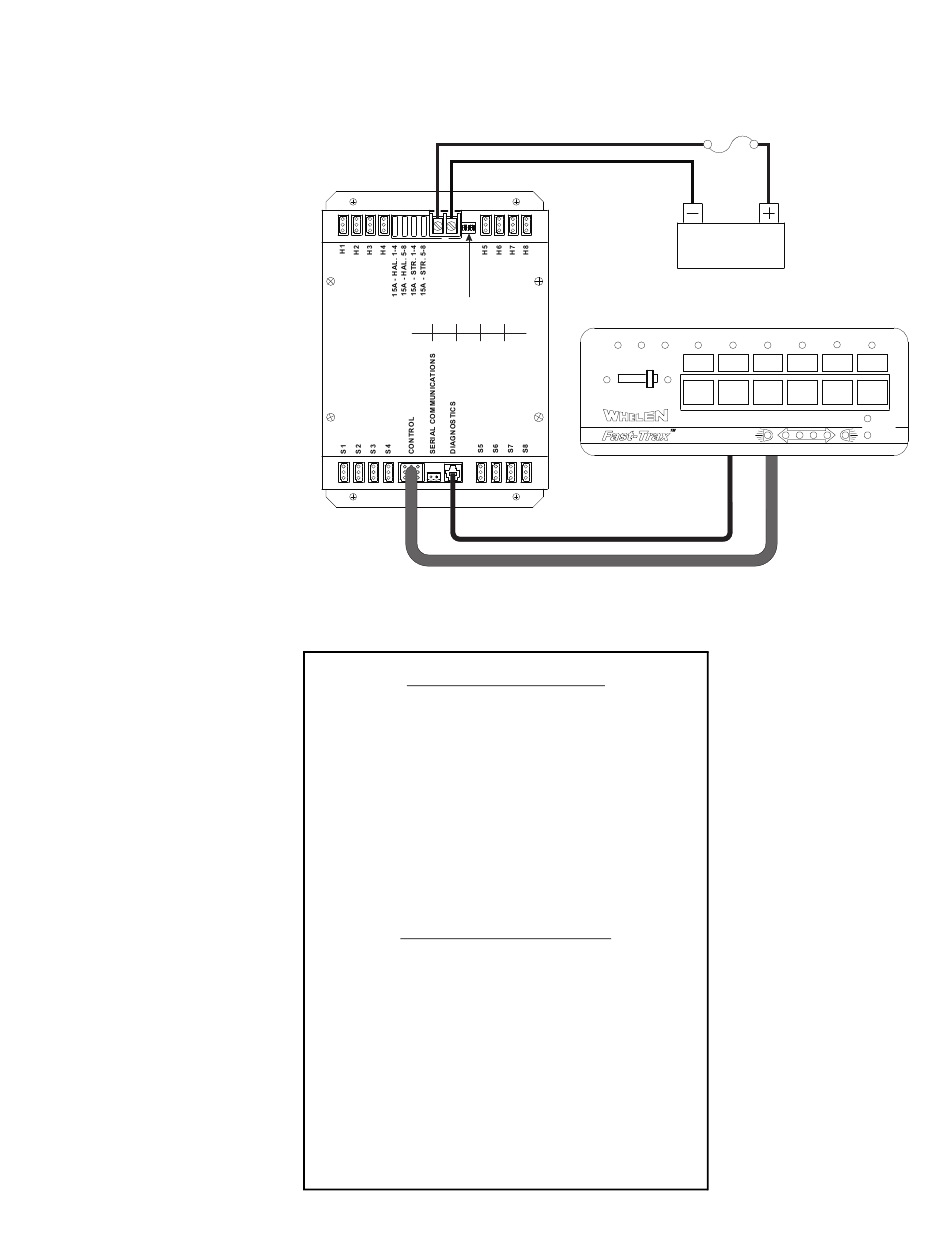

CUSTOMER SUPPLIED
45 AMP FUSE
RED
BLK
12V BATTERY
5
OFF
®
TRAFFIC ADVISOR
STROBE
DIAGNOSTIX DIAGNOSTIX
HALOGEN
