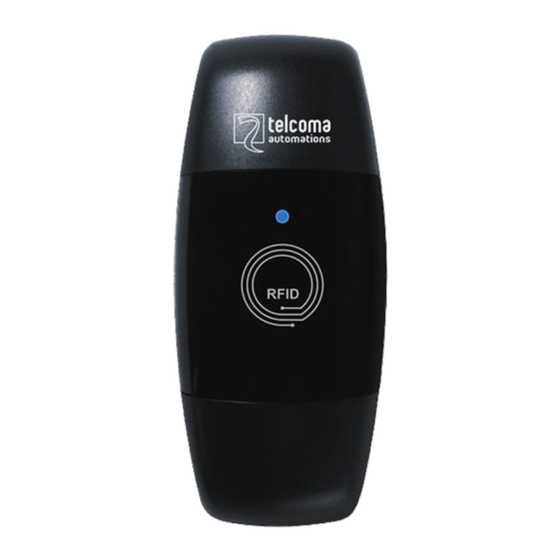

PASSO CARD
LETTORE DI DISPOSITIVI TAG
I
Istruzioni d'uso e di programmazione
LECTEUR DE DISPOSITIFS TAG
F
Instructions pour l'utilisation et la programmation
LECTOR DE DISPOSITIVOS TAG
E
Instrucciones de uso y de programación
TAG DEVICE READER
GB
Operation and programming instructions
TAG-LESEGERÄT
D
Gebrauchs- und Programmierungsanleitung
LEZER VOOR TAG's
NL
Gebruiks- en programmeeraanwijzingen
ISTPASSOCARD
V. 01.2013
RFID
pag. 5
pag. 14
pag. 23
pag. 32
pag. 41
pag. 50
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Telcoma PASSO CARD Series
Summary of Contents for Telcoma PASSO CARD Series
- Page 1 ISTPASSOCARD V. 01.2013 PASSO CARD RFID LETTORE DI DISPOSITIVI TAG Istruzioni d’uso e di programmazione pag. 5 LECTEUR DE DISPOSITIFS TAG Instructions pour l'utilisation et la programmation pag. 14 LECTOR DE DISPOSITIVOS TAG Instrucciones de uso y de programación pag. 23 TAG DEVICE READER Operation and programming instructions pag.
- Page 2 Fig. 1 1 2 3 4 12/24 Vdc/ac LINEA 12V 24V Fig. 2...
- Page 3 Fig. 3 1 2 3 4 5 6 7 8 12/24 OUT1 OUT2 Vdc/ac LINEA 12V 24V 48 mm 22 mm box (external dimensions) 79 mm...
- Page 4 Fig.4 5 6 7 8 OUT1 OUT2 12/24 Vdc/ac...
- Page 5 CHARACTERISTICS In this specific case, an RFID system consists of three fundamental items: 1) one or more transponders (or TAGs) 2) a reading and/or writing device (reader). 3) a data interface or decoder. The PASSO CARD system allows relays to be activated by RFID (Radio Frequency IDentification) by just passing the transponder (CARD) close to the reader.
-
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS PASSO CARD M.U. eader Receiver Power supply Vac/Vdc 12/24 12/24 Consumption (at 24Vac) Relay contacts max. current Relay contacts max. voltage Connection line max. distance Transmission speed baud 38.400 No. of possible memorised codes Max. number of readers on receiver Operating temperature °C... -
Page 7: Installation
INSTALLATION Find a position for the reader which is easily accessible to the user, while the receiver should be installed indoors, in a protected position. Remove the lid of the reader with the aid of a screwdriver (fig. 2) and fix the bottom firmly, in a vertical position (the closing clip must be at the top). - Page 8 second one (optional) may also be added. - USER CARD: this is the tag used to activate the receiver channel. Each CARD sold has a different code, which can only be saved with the aid of the MASTER CARD. Two or more USER CARDS can be copied with the aid of the PRG CARD programmer.
- Page 9 - pass the MASTER CARD over the reader twice - a series of double flashes of the LED on the front, and beeps, will start - pass the new USER CARD to be memorised over the reader; a flash and a longer beep confirm that the code has been acquired* - proceed to memorise more cards, or wait for the LED to stop flashing.
- Page 10 CHANGING THE OUTPUT OPERATING MODE The receiver outputs are able to operate in one of the following modes: PULSE: the relay is activated for about 1 second whenever it reads a card. STEPPING: the first time the card is passed the relay closes the contact and it remains active until the next time a code present in the memory is read.
- Page 11 OPERATION AND SIGNALS Pass the CARD over the reader to activate the devices. If the LED (DET. 1 in fig. 1) goes out for a moment and/or a beep is heard, the CARD is in the memory and the receiver has activated the associated output.
- Page 12 TELCOMA decline any responsibility for possible malfunction and/or damage due to their non-observance. TELCOMA srl reserve the right to make modifications at any time they deem necessary in order to improve the aesthetical and/or functional aspect of the product.
- Page 13 Enquire about the local recycling or disposal systems in compliance with present laws and regulations. EC DECLARATION The undersigned, Ennio Ambroso , legal representative of TELCOMA S.r.l., Address: Via L. Manzoni 11, Z.I. Campidui - 31015 Conegliano (TV) ITALY Declares that the product PASSO CARD,...
- Page 14 Telcoma s.r.l. via L. Manzoni, 11 z.i. Campidui 31015 Conegliano (TV) Italy Tel. +39 0438-451099 - Fax +39 0438-451102 http://www.telcoma.it E-mail:info@telcoma.it...
