Summary of Contents for Rioned Master

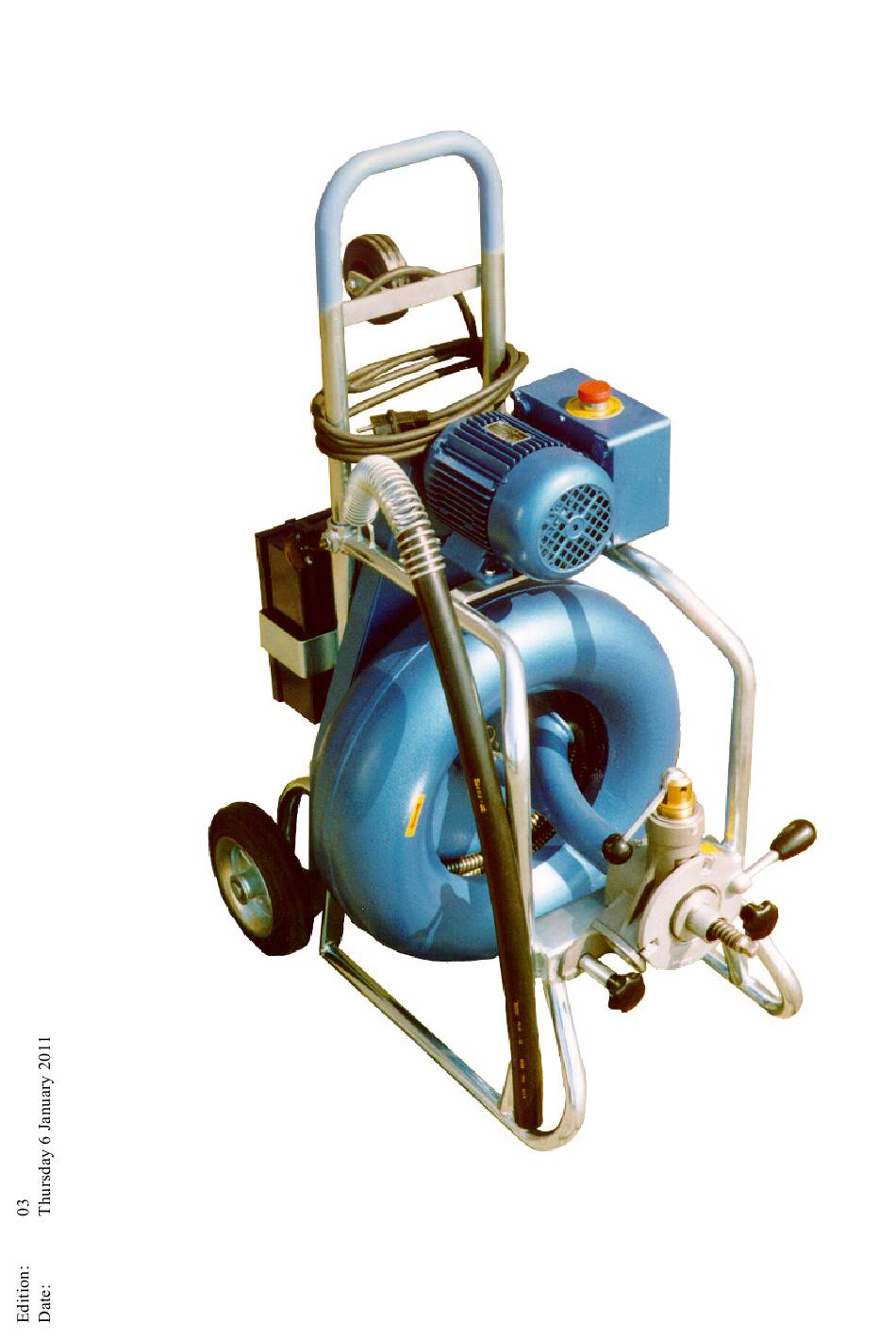

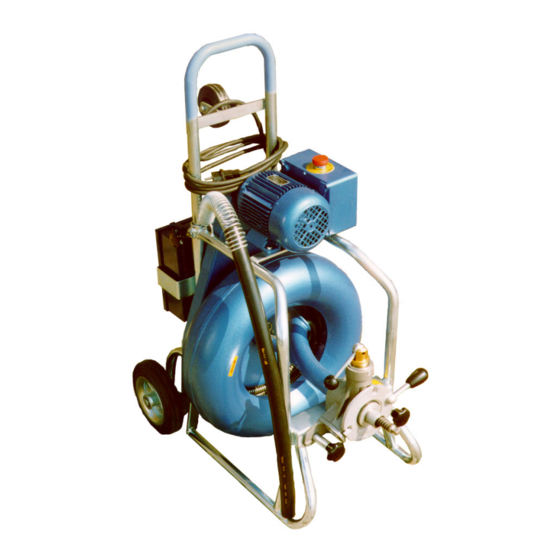

- Page 1 User’s Manual Master RIONED P.O. Box 5070 5004 EB Tilburg The Netherlands Telephone : +31 13 5479100 Telefax : +31 13 5479104...
- Page 2 RIONED. This restriction also holds for the corresponding drawings and diagrams. RIONED has the right to change parts at any time without any prior or direct warning to the client. Also, the contents of this manual can be changed without any prior warning.
- Page 3 Foreword This user’s manual is a manual for the professional user. This user’s manual has the purpose to control the machine in a safety manner and must be saved with the machine. The photos and drawings help you understand the text easier. First the user’s manual gives you an overview of the most important safety aspects.
- Page 4 01/11...
-
Page 5: Table Of Contents
ACCESSORIES ......................... 23 Supplies ........................23 Auxiliaries that can be coupled: ................24 EXPLODED VIEWS ......................27 Exploded view Master....................28 Bill of material Master....................29 APPENDIX......................... 31 EC declaration Of Conformity For Machinery ............31 Sales Managers......................32 Sound level report...................... - Page 6 Safety instructions ..................... 35 INDEX ..........................37 01/11...
-
Page 7: Introduction
INTRODUCTION RIONED wishes to thank you for your purchase of the RIONED drain and sewer-clearing machine. We recommend that you read this manual thoroughly and see that the machine is handled and main- tained in the proper manner. If your machine should give trouble and need servicing, when you want to order parts, or if you have any questions, contact your RIONED dealer. - Page 8 01/11...
-
Page 9: Security
SECURITY Be responsible for other people when you are working with this machine. This manual contains instructions for fundamental conditions that must be followed by use and maintenance of this machine. That is why it is necessary that authorised and qualified personnel must read the user's manual and the user’s manual must always be available with the machine. -
Page 10: Personnel Qualification And Education
Before starting the machine again, you must follow the instructions correctly. 2.10 Making Changes to the machine are only permitted if Rioned has given written authorisation. The use of changes and fabri- original spare parts and accessories are for the safety necessary. Rioned is not responsible for inju- cate spare parts ries or damages if other spare parts are used. - Page 11 If the machine does not work or give troubles, it is forbidden to work further with the machine. Tel- ephone your dealer or the technical department of Rioned Telephone: +31 (0) 13-5479100 This manual contains all the necessary information concerning control and maintenance. If the de- vice is positioned correctly, properly controlled, and regularly maintained, a warranty will be given according to the general conditions of delivery.
- Page 12 01/11...
-
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS General Description (symbol) Unit Type : Master Total length (l) : 0,65 m Total height (h) : 0,80 m Total width (b) : 0,57 m Weight (dry) (m) : 42 kg Spring lengths (l) : 5 m, 10 m, 15 m, 20 m and 25 m... -
Page 14: Motor
Motor Description (symbol) Unit Type : AEG Power (P) : 450 W Voltage and frequency : 230 V, 50 Hz. Number of revolutions : 1300 min Current : 3,7 A Condensator : 16μF / 400 V Security : Thermal Isolation class : IP 54 01/11... -
Page 15: Construction
Starting button (Green) Stop button (Red) Rotation direction left (Black) Feed unit Guide tube Spring guidance tube Metal case Support wheel Frame Tyres Transport grib Lobe knob for Transport grib Emergency stop Drum Illustration 4.1 Spring cleaning device Master 01/11... - Page 16 01/11...
-
Page 17: Control
Fasten the lobe knob. Overturn the spring machine by means of the handle. Now you can move the spring machine. The support wheel can be used when you want to lay down the Master and drive somewhere under! 5.2 Controls Lobe knob (See Illustration 4.1 B page:... -
Page 18: Before Unblocking
5.3 Before unblock- Couple a spring with a diameter of 16 mm onto the standard spring. Loosen the pressure knob (See Illustration 4.1 C page: 15). Press the green press button. Keep the handle upwards. Fasten carefully the pressure knob. Now the spring gets fed into the spring drum. - Page 19 Illustration 5.4.2 Right manner of working: Hand on handle and spring guidance tube. Feed the spring in the drain that has to be cleaned ( Illustration 5.4.2). Check if the pressure knob is loose. Press the green start button (See Illustration 4.1 D page: 15).
- Page 20 When there is any resistance in the pipe, you must stop feeding in the spring immediately. Pull the handle upwards. Then move the spring several times back and forwards at the place of the blockage. By feeding the spring into the drum, move the handle completely upwards. Place the machine ±...
-
Page 21: Maintenance
MAINTENANCE Warning! Always stop the engine and take the plug out of the wall socket before serving or repairing the machine. 6.1 General The machine is maintenance free, except the feed Unit. Use only original spare parts (See Chapter 8 Exploded Views page: 27). Clean regular the feed unit housing. -
Page 22: Maintenance Schedule
6.4 Maintenance Description Interval schedule Cleaning the feed unit : Every time before using the machine and by strong pollution. Checking pressure rollers : Once a month. Change by wastage. Cleaning the body of the machine : Weekly or by strong pollution. Lubrication moving parts : Every 50 hours or at least ones every 6 months. -
Page 23: Accessories
ACCESSORIES 7.1 Supplies Inlet guide tube: To guide the spring on difficult places. Ordernumber: 10.160.001.000 Metal case. Ordernumber: 13.500.100.001 Spring drum empty. Ordernumber: 13.300.001.025 Repair and quick couplings: To connect springs or to repair broken springs. Ordernumber: 12.300.017.300 (16 mm) Anti-oxidation-spray. -
Page 24: Auxiliaries That Can Be Coupled
7.2 Auxiliaries that Retrieving hook: can be coupled: To remove obstacles from pipes. For example: cloth, rags, napkins, sheets, etc. Ordernumber: 12.600.410.560 (22x4) Ordernumber: 12.600.410.561 (16 mm) 4-blade drill and 6-blade drill: To mill pipes that are clogged with frying fat. Ordernumber: 12.600.410.580 (40 mm) Ordernumber: 12.600.410.581 (50 mm) - Page 25 Root cutter: To saw tree roots. Ordernumber: 12.600.420.583 (65 mm) Ordernumber: 12.600.420.584 (90 mm) Ordernumber: 12.600.420.585 (125 mm) Funnel drill: For long bended pipes. Ordernumber: 12.600.410.540 (16 x 2,5 small) Ordernumber: 12.600.410.541 (22 x 4 big) Pointed head: For pipes cocked with lime or uric stones. Ordernumber: 12.600.410.595 (16 mm) 01/11...
- Page 26 01/11...
-
Page 27: Exploded Views
EXPLODED VIEWS 01/11... -
Page 28: Exploded View Master
8.1 Exploded view Master. 01/11... -
Page 29: Bill Of Material Master
8.2 Bill of material Master P o s . O r d e r n u m b e r N u m b e r D e s c r i p t i o n 3 1- 0 3 5 - 2 14 - 0 2 5... - Page 30 01/11...
-
Page 31: Appendix
RIOR B.V. / RIONED Of Conformity For Centaurusweg 45, Tilburg, The Netherlands, Machinery Herewith declares that: Spring cleaning machine Master, • is in compliance with the Machinery Directive (2006/42/EC, 2006/95/EG); • is in conformity with the provisions of the following other EEC directives: 2004/108/EG •... -
Page 32: Sales Managers
D.Maas / H. de Laat Area Sales Manager Centaurusweg 45 5015 TC Tilburg Tel.: +31 13-547 91 00 Fax: +31 13-547 91 04 REPAIR THE NETHERLANDS Rioned Centaurusweg 45 5015 TC Tilburg Tel.: +31 13-547 91 00 Fax: +31 13-547 91 04 01/11... -
Page 33: Sound Level Report
9.3 Sound level report Results of the sound level measurements “MASTER”. Tools: Realistic 42-3019 sound level meter Accuracy: ± 2 dB (A) at a sound level of 114 dB (A) Frequency range: 500 - 10.000 Hz, curve A Response: Slow Measuring positions “MASTER”... -
Page 34: Electric Schema
9.4 Electric schema 01/11... - Page 35 9.5 Safety instructions Warning: When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following. Read all these instructions before attempting to operate this product and safe these instructions.
- Page 36 Stay alert. Watch what you are doing. Use common sense. Do not operate tool when you are tired. Check damaged parts. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it would operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mount- ing, and any other conditions that may affect its operation.
- Page 37 ....10 6-blade drill ...... 24 responsible ......9 injuries ......10 retrieving hook ....24 insulation ......10 rioned ........ 2 iron pipes ......24 accessories ......10 adhesives ......10 asbestos ......9 sales managers ....32 looking glasse .....9 security covers ....
- Page 38 01/11...
