Cautions
1.
Make sure power is removed or turned off before installing product.
2.
This product must be installed in accordance with the applicable
installation code by a person familiar with the construction and
operation of the product and hazards involved.
3.
The product must be installed in accordance with the National
Electrical Code and all applicable local codes. Proper grounding is
required for safety.
120W Fixture
Knuckle Slip
Fitter
Mounting
Surface Mount: Use Mounting Bracket Dimensions or use specified mounting bracket to mark position on mounting surface.
•
Drill holes for mounting fixture and one for passing power cord through.
Place power cord through designated hole into mounting surface. Align mounting bracket with corresponding holes, secure
•
bracket to surface using hardware rated for weight of fixture.
If applicable, move adjustable brackets to desired angle and secure.
•
Pole Mount: Make sure pole is suitable for fixture mounting. Place fixture onto pole and secure using properly rated hardware.
•
If applicable, move adjustable brackets to desired angle and secure.
•
After fixture is securely mounted, connect supply line to fixture power cord. Connections must made within mounting pole or
•
within mounting bracket when applicable.
Eye of photocell must face approximately North. See Photocell Orientation Instructions for simple orientation procedure.
•
2017

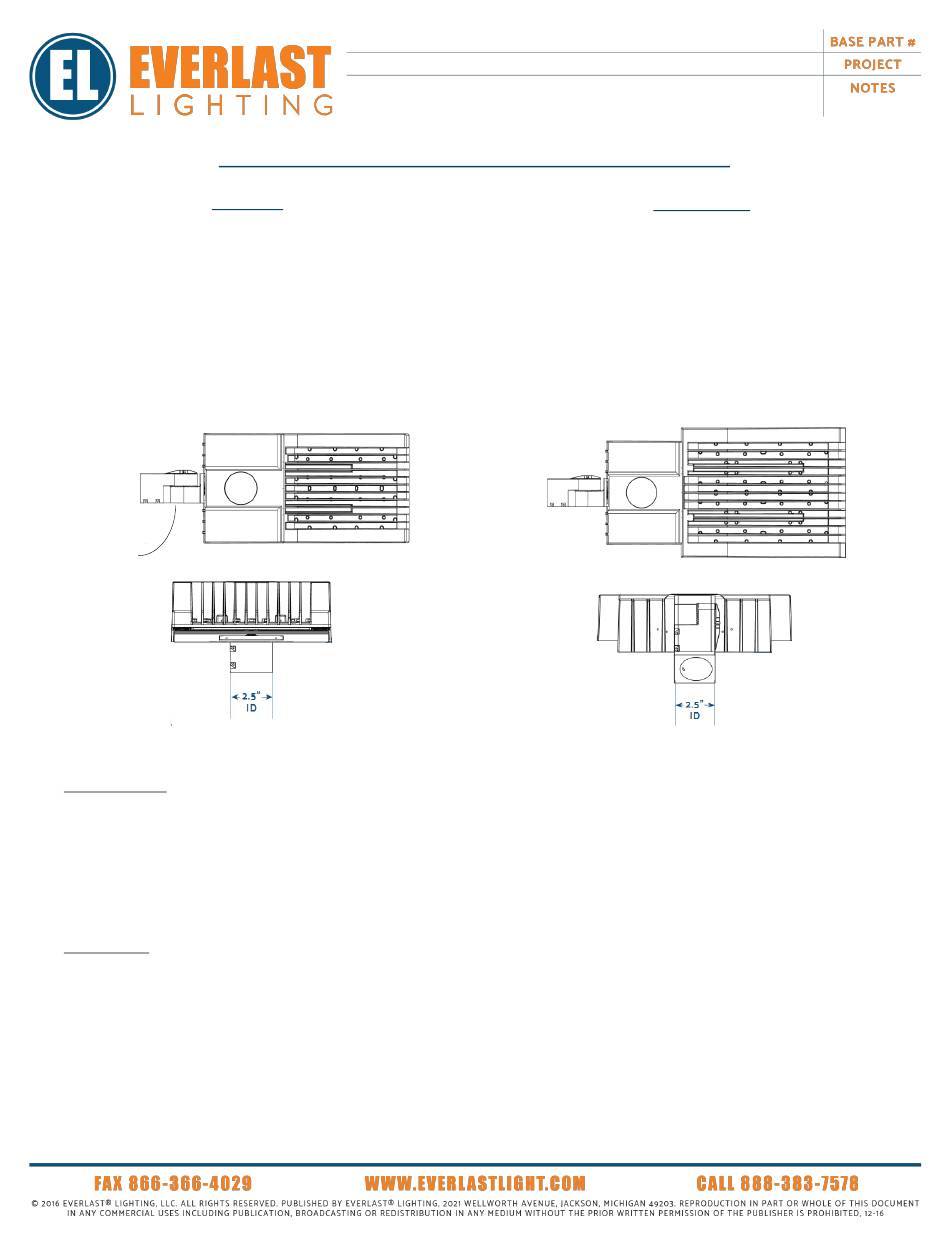

Victory Series Installation Instructions
(Top View)
(Back View)
Précautions
1.
Veillez à ce que le pouvoir est supprimé ou désactivé avant
d'installer le produit.
2.
Ce produit doit être installé conformément au code d'installation
en vigueur par une personne familière avec la construction et
l'exploitation des produits et des risques impliqués.
3.
Le produit doit être conforme au Code électrique National et tous
les codes. Raccordée à la terre est nécessaire pour la sécurité.
240W & 350W Fixture
(Top View)
(Back View)
1
