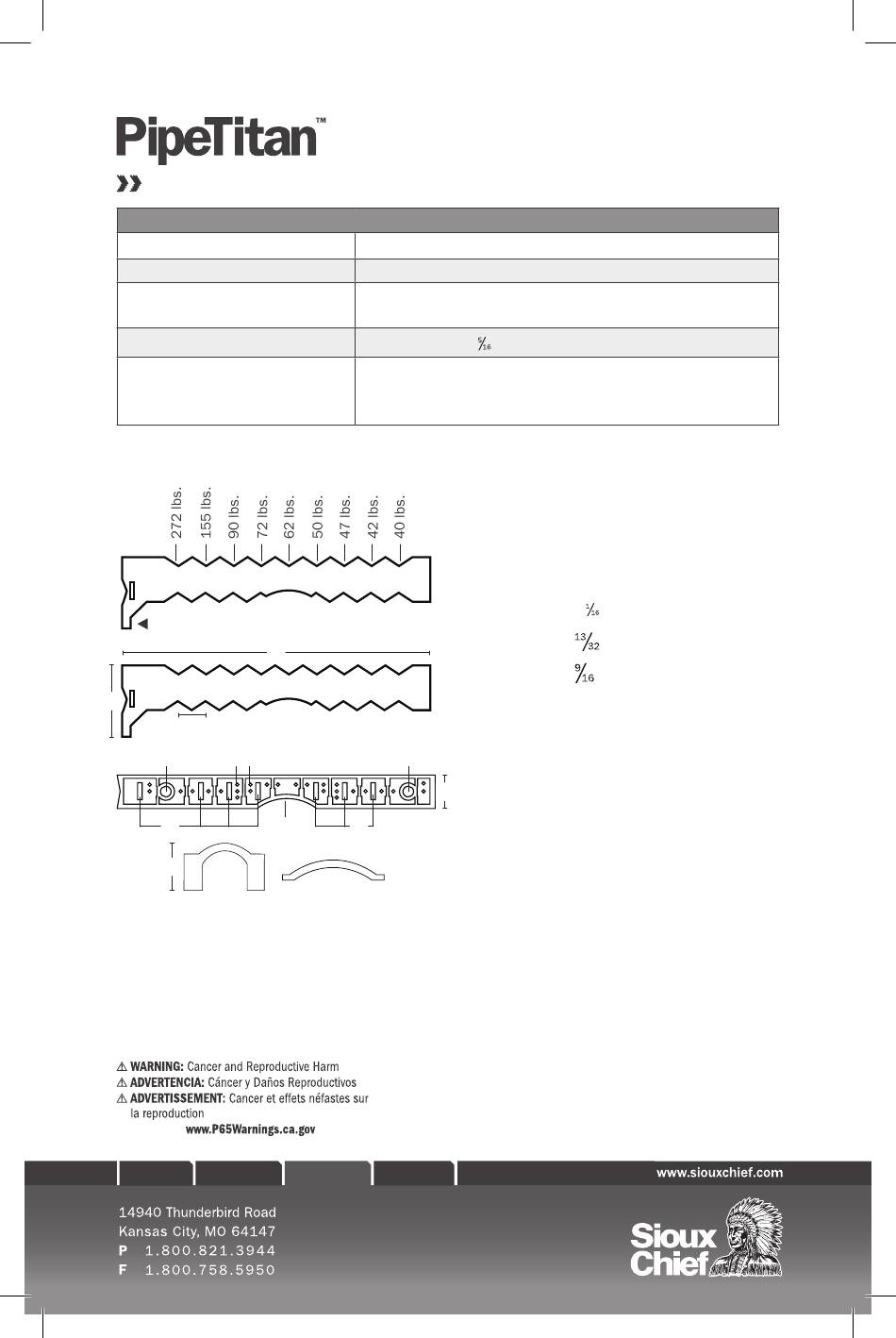

Universal Bracketing System
Specifications
Standard Green Bracket (570 series) ABS, U.V. stabilized
Standard Clamp & Strap
Flame Retardant Red Bracket,
Clamp & Strap (572 series)
Screws
Stainless Steel Bands
Safe Working Load
½ failure load at 72°F
When suspended from foot end
A
B
Bracket
C
M
F
G
H
I
Strap
Installation Instructions
1. Secure bracket to wall, stud or vent pipe with stainless steel band or clamp.
Or, suspend bracket overhead using two ⅜" threaded rods.
2. Insert 2 screws into each strap.
3. Install strap(s) into bracket channel and push down. Tighten screws securely.
Supply
Drainage
Natural high-density polyethylene
Flame retardant ABS, UL-94 VO
Zinc coated steel, " hex/Phillips head, 2" (strap) and 4" (clamp)
300 series stainless steel: ½" wide × .025, 5" band = 4" max
diameter, 7" band = 6" max diameter
Screw: 410 series stainless, slotted/hex head
Side View
F
D
L
G
Top View
K
Clamp
Support
Specialties
A – 11"
B – 2½"
C – 1"O.C.
D – 1¼"
E – 1 "
F –
"
G –
"
H – 1¼"
– holds ⅝" O.D. – 1" O.D.
I
– ⅜"
J
K – holds ⅜" O.D. – 3½"
L – 1¾"
M – holes for screws
#IS-PIPETITAN 8-19
