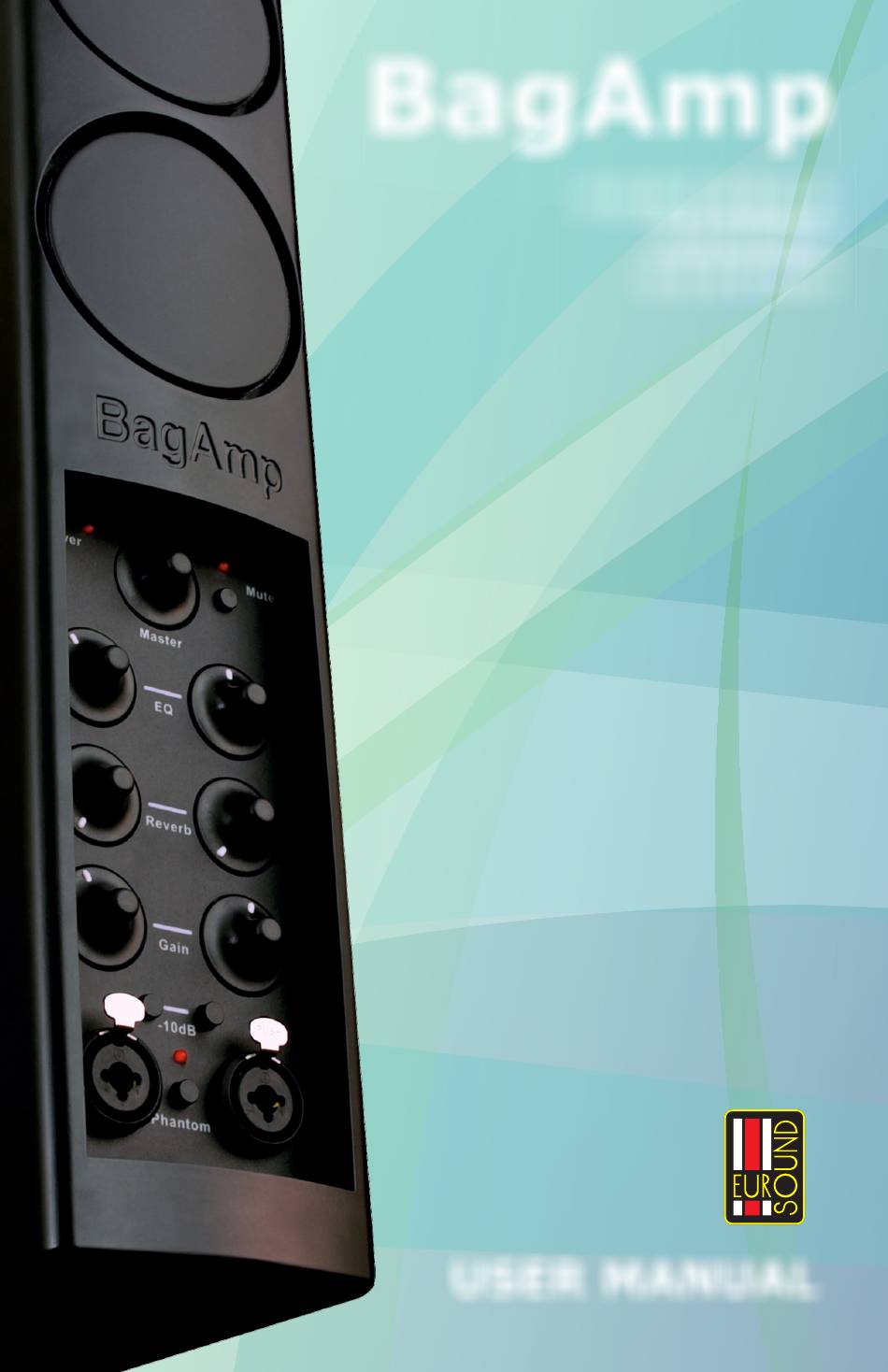

BagAmp
PORTABLE
SOUND
SYSTEM
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BagAmp and is the answer not in the manual?

Questions and answers

Jim Murray
February 22, 2025

can I get a replacement speaker

0
1 comments:
Mr. Anderson
February 22, 2025

The manual does not mention the availability of replacement speakers for the Eurosound BagAmp. It advises servicing by qualified personnel if a speaker is damaged.

This answer is automatically generated

0

Summary of Contents for Eurosound BagAmp

  • Page 1 BagAmp PORTABLE SOUND SYSTEM USER MANUAL...
  • Page 2 General Design BagAmp is a long thin column made from a rugged composite material that contains a preamplifier, a power amplifier, and loudspeakers in this one unit. The preamplifier has two identical input channels that accept instrument...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Your Bag-Amp is made of a very durable polymer composite material. However, extra care should be taken to protect the finish and speakers. These simple tips will help reduce wear and tear on your Bag-Amp. 1. Read all instructions before using. 2.
  • Page 4 INSTALLATION & OPERATION Please read this manual thoroughly before using. INSPECTION Your Bag-Amp was carefully packed at the factory in packaging designed to protect the unit in shipment. Before installing and using your unit, carefully examine the packaging and all contents for any signs of physical damage that may have occurred in transit.

  • Page 5: Controls And Connections

    • Master volume (2) controls the level of the main power amplifier . NOTE: The Bag-Amp can be set to very high sound levels. To protect the system from damage, included is an active protection circuit. At high sound levels this active protection will lower the output until the volume is adjusted.
  • Page 6 (1) POWER ON LED (2) MAIN LEVEL CONTROL Summed output volume adjust (3) MAIN MUTE SWITCH For quick removal of all audio EQ CONTROLS (CHANNELS 1 & 2) Clockwise increases treble Counter-clockwise increases bass REVERB LEVEL (CHANNELS 1 & 2) Controls level of reverb for each channel (6) CHANNEL INPUT GAIN...

  • Page 7: On/Off Switch

    (12) BALANCED XLR LINE OUT (10) LINE OUTPUT LEVEL With separate level control, Control Adjusts volume of for connecting to external XLR line output powered subwoofer or additional audio source LINE OUTPUT LEVEL LINE OUT POWER (11) AC CORD INPUT (13) ON/OFF SWITCH Built-in internal 120V/240V switching power supply...

  • Page 8: Specifications

    SPECIFICATIONS AMPLIFIER AND SPEAKER SYSTEM POWER............250W RMS @ 6 Ω, 1%THD at 1kHz S/N RATIO ..................56.5dB THD ..............≤0.17% @1kHz ≤0.63%@1kHz SPEAKERS ................3” Woofer, 6Ω FREQUENCY RESPONSE ..........100kHz - 18KHz (±3dB) SENSITIVITY @ INPUT & OUTPUT • Mic/Line ....................-37dB • Max Input Level XLR .................-16dBv •...
