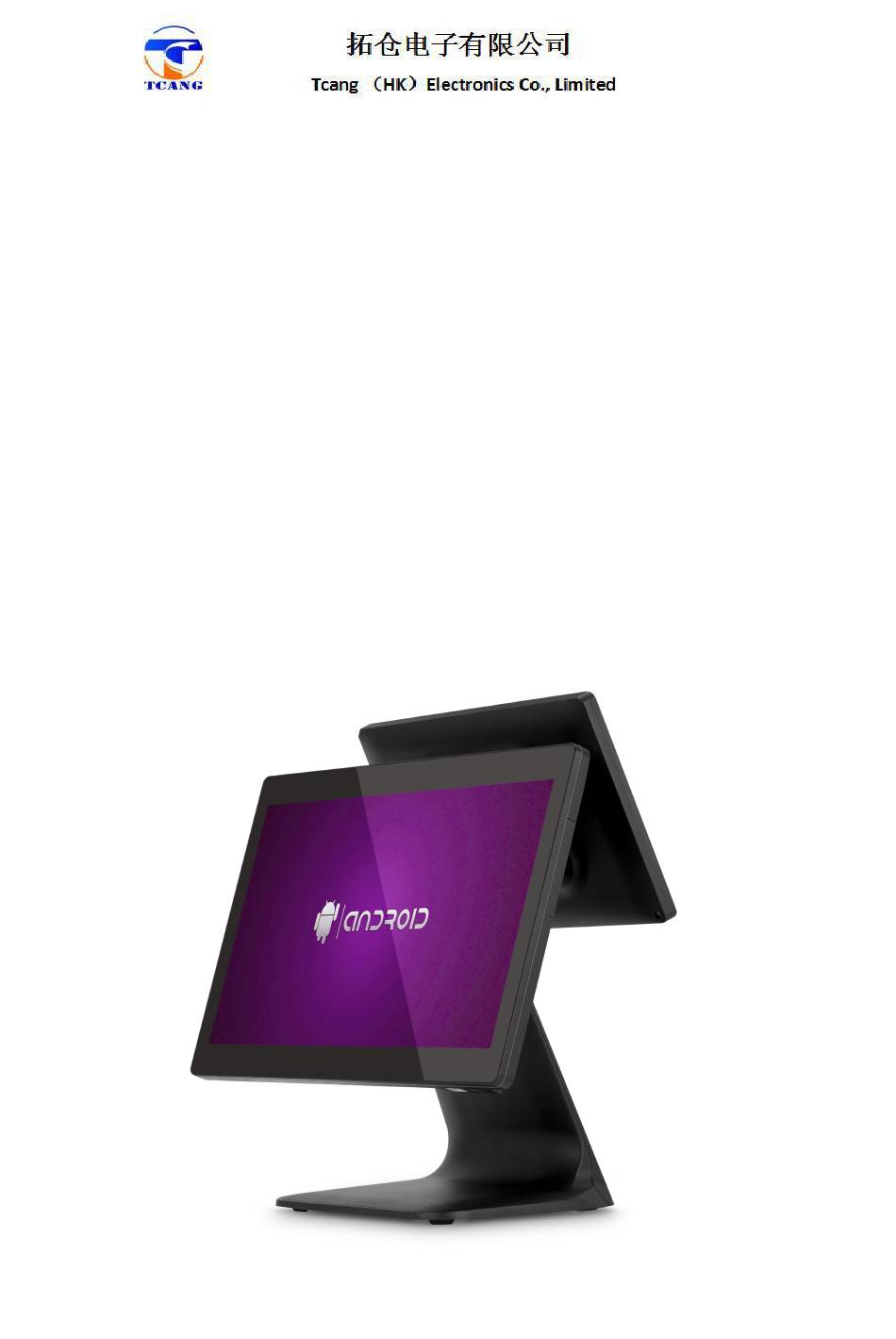

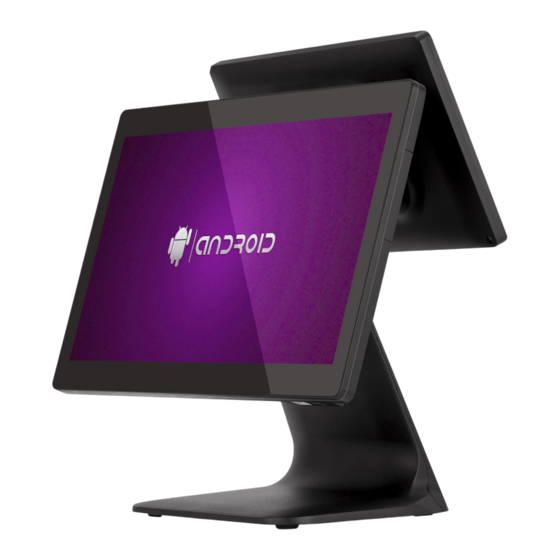

- Page 1 TC-TOUCH-A9 all in one POS machine User Manual v1.1...
- Page 2 In order to help you use into warehouse cash register product, please read carefully the user manual). Product information, please go to the website query: www.tcang.net be sure to read through this safety guide carefully. Product version identification...
-
Page 3: Packing List
If the appearance is damaged or the accessories are missing, please contact your dealers. • TC-TOUCH-A9 all in one POS machine x 1 • Power adapter x 1 •... -
Page 4: Main Specification
2.Specification： A9-Android Main Specification RK 3288 Quad core 1.8G EMMC flash 8G OS Support Android 4.4/5.1 /6.0/7.0 Display LCD display 15.6” LED TFT 1366 X 768 Brightness 350nits Resolution 1366 X 768 Touch screen Multi-point Capacitive touch Screen I/O Port Serial 2*COM port, COM2 is customer display... - Page 5 Second screen 11.6 inch Wi-Fi IEEE802.11b/g Bluetooth Bluetooth 4.0 3 track A9-Windows Main Specification J1900 Quad core 2.0G 2G/ 4G/ 8G Msata 32G/ 64G/ 128G OS Support Window 7/ 8/ 10 testing type Display LCD display 15.6” LED TFT 1366 X 768 Brightness 350nits Resolution...
- Page 6 Storage Humidity 20%~85% RH non-condensing Optional Customer Display 2*20 LCD / 2*20 VFD Second screen 11.6 inch Wi-Fi IEEE802.11b/g Bluetooth Bluetooth 4.0 3 track...
- Page 7 Design display：...
- Page 8 Note: The enclosed drawing is for reference only, please refer to the material object.
- Page 9 Back IO panel： Android TF card DC-IN USB/OTG Audio RJ11 TTYS4 Port Description DCIN Power input port, support 12V power RJ11 Cash drawer port TTYS1/TTYS4 Serial port， （DB9 pin）_RS232agreement，5V/12V output optional Realtek 8111F Gigabit Ethernet Link LED：Green light long, means net is connected Active LED：Orange spark, means data transfer USB2.0*3；OTG*1 Audio...
- Page 10 Windows COM1 AUDIO DC-IN Port Description DCIN Power input port, support 12V power COM1 RS232 agreement, 5V/ 12V output optional VGA display，DB15 pin port Realtek 8111F Gigabit Ethernet Link LED：Green light long, means net is connected Active LED：Orange spark, means data transfer USB2.0*4 Audio ALC662 5.1 Channel audio...
- Page 11 Basic operating instructions： Change 2x20 LCD/ VFD customer display or 11.6 inch second screen: See the attached video tutorial for details. A 9安装顾显. m p 4 Port place please see the following picture: Step： 1. Screw out the 4pcs screw for fixing the stand; 2.
- Page 12 Safety note: • Do not tear the serial number on the main board and the warranty sticker of the agent before installation, or it will affect the warranty period of the product. • Be sure to turn off the power supply and remove the power cord from the socket before installing or adding other hardware devices.
-
Page 13: Warranty
1.Warranty: Your purchase of touch-screen products (including accessories) means that you can obtain 12 months of return of basic parts and labor warranty; 2.No warranty： 1. Failure or damage caused by incorrect installation, storage or use of non-compliant products (including peripheral equipment); 2.
