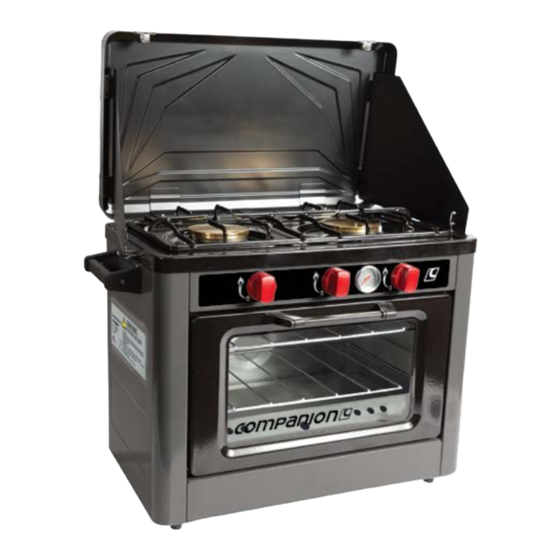

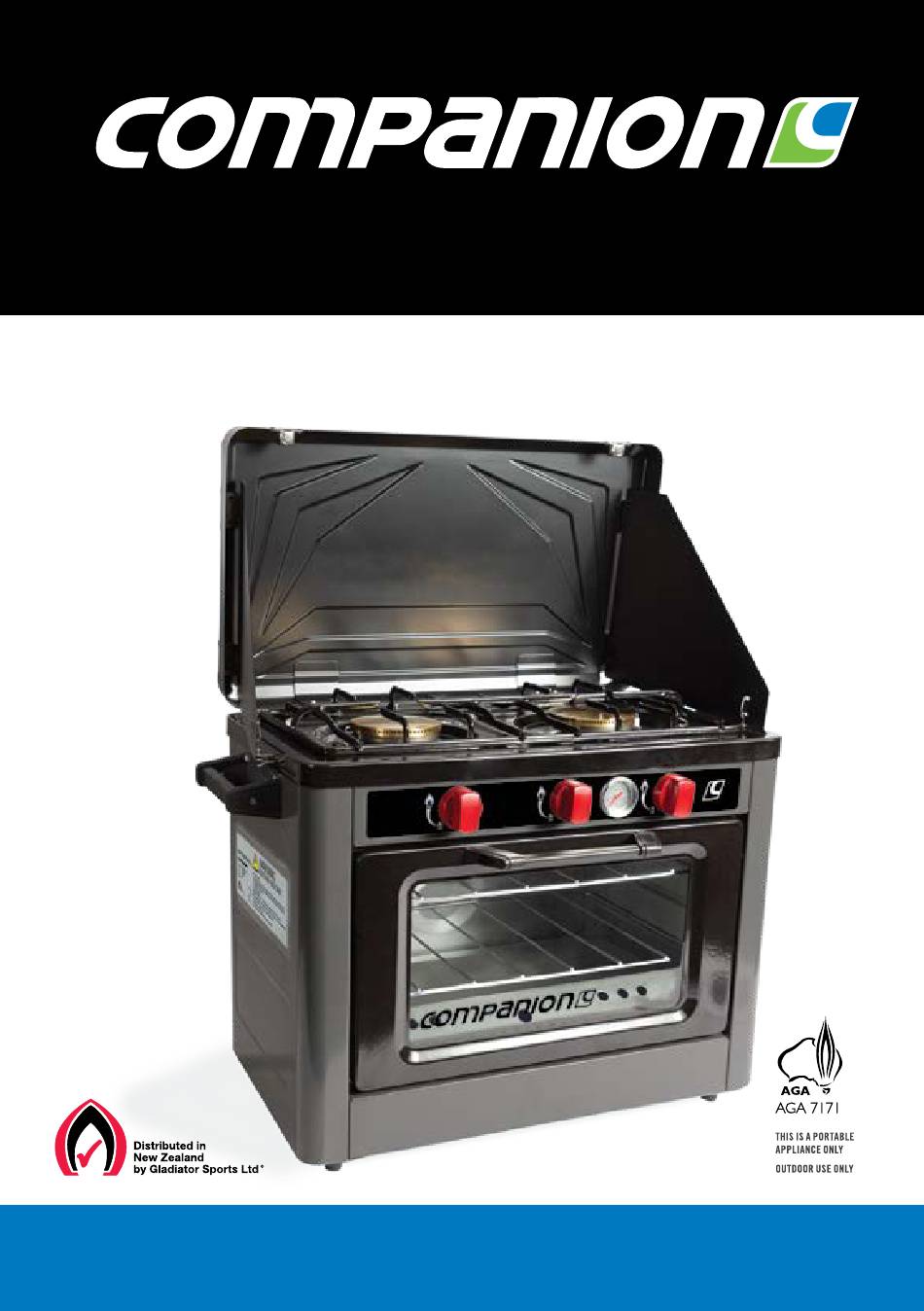

- Page 1 OWNERS MANUAL PORTABLE OUTDOOR GAS OVEN & COOKTOP Part No. CS-01 Australia’s original Outdoor brand...
-
Page 2: General Warnings
IMPORTANT: Read these instructions for use carefully. Familiarise yourself with the appliance before connecting it to a gas container. Keep these instructions for future reference. GENERAL WARNINGS • This appliance shall only be connected to a POL cylinder certified to AS2469 standards. This appliance is designed for outdoor use only and must be operated away from any flammable material or surfaces and materials. -
Page 3: Carbon Monoxide Hazard
• NEVER check for leaks with a flame or pilot light. • Using Companion Gas Leak Detection Spray or soapy water, coat all connections, if bubbles appear turn the cylinder gas control off and retighten the connection before re-testing. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS This appliance shall only be used in an above ground open air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with one of the following: (A) An enclosure with walls on all sides, but with no overhead cover. - Page 5 OWNERS MANUAL UNDERSTANDING YOUR APPLIANCE WIND SHIELD TRIVET BURNER BURNER CONTROL/ BURNER CONTROL/ IGNITION KNOB IGNITION KNOB THERMOMETER OVEN CONTROL/ OVEN IGNITION KNOB OVEN RACK REGULATOR AND HOSE...
-
Page 6: Handle Attachment
HANDLE ATTACHMENT Install side handles as shown. M4 X 12 SCREW (4) M4 FLANGE NUT (4) SIDE HANDLE (2) Install door handle as shown. DOOR HANDLE (1) M4 X 12 SCREW (2) - Page 7 Turn the cylinder gas valve on in an anti-clockwise direction for one full turn and then check the connections for leaks with Companion Gas Leak Detection Spray or soapy water. If a leak is detected turn the cylinder gas valve “Off”...
-
Page 8: Lighting The Stove
LIGHTING THE STOVE Make sure the Control Knob is set to the “OFF” position. Step 1. Depress and turn the Control Knob anti-clockwise until a “click” sound is heard, check that the burner is now alight if so hold the ignition knob in for 10 to 15 seconds then release. -
Page 9: Adjusting Temperature
OWNERS MANUAL LIGHTING BURNER - OVEN Make sure the Control Knob is set to the “OFF” position. Step 1. Open oven door. Step 2. Make sure the Control Knob is set to the “OFF” position. Step 3. Depress and turn the Control Knob anti-clockwise until a “click”... -
Page 10: Turning The Appliance Off
TURNING THE APPLIANCE OFF If the appliance is no longer to be used and to reduce the risk of blocked gas jets caused by excess gas being left in the hose, all remaining gas must be expelled from the hose assembly. Step 1. - Page 11 OWNERS MANUAL TECHNICAL DETAILS AND SPARE PARTS SPECIFICATIONS Part No. CS-01 Description Portable gas oven & cooktop Dimensions 540L x 391W x 458Hmm Weight 15kg GAS JET Burner 0.675mm Oven 0.575mm CONSUMPTION Inlet Pressure 2.75kPa Burner 5.6Mj/hr 111.1g/hr Oven 3.8Mj/hr 75.4g/hr...
- Page 12 Distributed by Companion Brands Bundoora Victoria 3083 www.companionbrands.com.au...
