DAPAudio DVMP-150 Product Manual

Hide thumbs Also See for DVMP-150:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
DVMP-150
ORDERCODE D1132
Highlite International B.V.
Vestastraat 2
6468 EX Kerkrade
The Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVMP-150 and is the answer not in the manual?

Questions and answers

Related Manuals for DAPAudio DVMP-150

Summary of Contents for DAPAudio DVMP-150

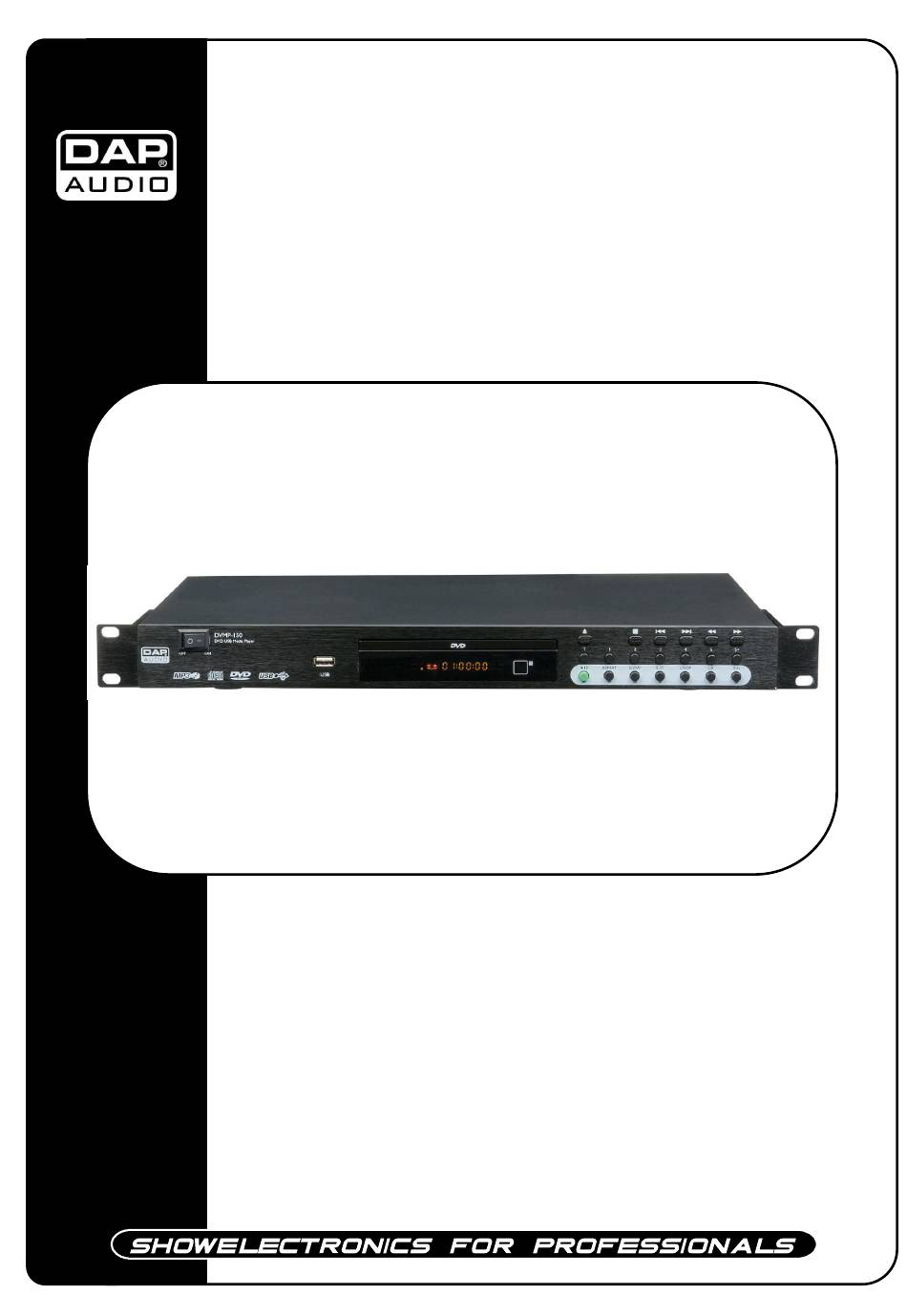

  • Page 1 DVMP-150 ORDERCODE D1132 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
  • Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio DVMP-150 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.

  • Page 3: Table Of Contents

    Dap Audio DAP Audio DVMP-150™ Product Guide Warning ........................................3 Unpacking Instructions ..................................3 Return Procedure ..................................... 3 Safety Instructions..................................... 4 Operating Determinations ................................5 Description of the device ..................................6 Overview......................................6 Frontview ......................................7 Rearview ......................................7 Remote Control ....................................8 Names and functions ...................................

  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP DVMP-150 • User manual Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

  • Page 5: Safety Instructions

    CAUTION! Keep this system away from rain and moisture! Safety Instructions Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before you initial start-up, please make sure that there is no damage caused by transportation.

  • Page 6: Operating Determinations

     If system is dropped or struck, disconnect mains power supply immediately. Have a qualified engineer inspect for safety before operating.  If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your system. Leave the system switched off until it has reached room temperature.

  • Page 7: Description Of The Device

    Description of the device Features The DAP-audio DVMP-150 is a 1 U Karaoke DVD player • Plays all common audio/video formats • Balanced XLR audio outputs • 19” Rack mounts included • IR Remote control included Overview Fig. 1...

  • Page 8: Frontview

    Frontview Fig. 2 1. Power button 11. USB connector 2. Disk holder 12. Display 3. T button 13. Remote Sensor 4. Eject button 14. Play/pause button 5. Direct access buttons 15. Repeat button 6. Stop button 16. Slow button 7. Previous button 17.

  • Page 9: Remote Control

    Remote Control Fig. 4 29. Open/close button 48. Language button 30. Play button 49. Subtitle button 31. Stop button 50. Angle button 32. Direct access buttons 51. Vol - button 33. PBC button 52. Time button 34. OSD button 53. Remain button 35.

  • Page 10: Names And Functions

    Names and functions Below is a description of the functions of the controls. 1. Power switch This is the main power switch. Push to turn the device on. 2. Disc Holder Place the disc in the holder. Push the open/close (45) button to open and close the disc holder. 3.
  • Page 11 43. Video button Push this button to select between Interlace-YUV, TV-RGB, PC-VGA or S-Video 44. Mic button Not functional in the DVMP-150. 47. Step button Pushing this button allows you to step through your frames one frame at a time.

  • Page 12: Installation

    Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connections 1. Turn off the Power (1) switch. 2. Connect the DVMP-150 to your amplifier using the proper cables. CAUTION: Be sure that the power is off, when connecting the cables. Installing batteries 1.

  • Page 13: Operations

    Operations 1. Preparation • When you want to watch a DVD film, switch the TV-set on and select the video input connected to the DVD player. • If you want to listen to audio via your audio installation, switch the audio system on and select the DVD player input.

  • Page 14: Repeat

    14. Program • Push prog (36) to open the on screen program menu. • The DVMP-150 allows you program up to 16 tracks/chapters. • Use the cursor (39/40/59/69) buttons to navigate through the menu. • Use the direct access (5) buttons to insert the desired track/chapter in the selected program number.

  • Page 15: Before Switching Off The Power

    Before switching off the power When you have finished using the DVD player, before switching off the power, be sure that the disc holder (2) has been closed with the open/close (14/51) button. CAUTION: • Do not forcibly close the disc holder when the power is off. •...

  • Page 16: System Setup

    System Setup When you push the Setup (57) button, the setup menu will be displayed. You can select five tabs: A. General B. Audio C. Video D. Password E. Exit When you have entered the setup menu you can use the cursor (39, 40, 59, 60) buttons to navigate and select the desired item.
  • Page 17 3. Video Use the Cursor (30/40/59/60) buttons to select:  Interlace-YUV  TV-RGB  PC-VGA  S-Video 4. TV-Type Use the Cursor (30/40/59/60) buttons to select the format of the TV to which the DVD is connected. You have three options: ...
  • Page 18 7. Default Use the cursor (39, 40, 59, 60) buttons to select restore. Confirm your selection by pushing the enter (41) button. Now the DVMP-150’s default settings will be restored. 8. Resume Power Select the next page using the Cursor (30/40/59/60) buttons and confirm by pushing the enter (41) button.

  • Page 19: Language Setup

    B. Language setup Includes: 1. OSD Language This function allows you to allow you to select a language for the setup menu and for the screen display. You can choose between English, Chinese, German, Spanish, French and Portuguese in this software version.

  • Page 20: Audio Setup

    (30/40/59/60) buttons and confirm by pushing the enter (41) button. 2. Mic Setup This menu item is not functional in the DVMP-150 3. Prologic II This function, allows you to transform your ordinary DVD/CD into surround sound. You can chose between two modes, or switch prologic OFF.

  • Page 21: Video Setup

    D. Video Setup Includes: 1. Brightness Use the cursor (39, 40, 59, 60) buttons to adjust the brightness between 0 and12. 2. Contrast Use the cursor (39, 40, 59, 60) buttons to adjust the contrast between 0 and12. 3. Hue Use the cursor (39, 40, 59, 60) buttons to adjust the hue between -6 and +6.

  • Page 22: Downmix

    5. Sharpness Use the cursor (39, 40, 59, 60) buttons to adjust the sharpness between 0 and 8. E. Downmix In the Downmix menu you are able to select the analog sound format. LT/RT: A kind of Dolby Pro Logic format. It is used when the unit is connected to a Dolby Pro receiver by means of stereo RCA cables.

  • Page 23: Setup Examples

    2. Dynamic range To avoid disturbing the neighbors at night, you can use this function to reduce the sound effects volume without changing the original tone. Use the cursor (39, 40, 59, 60) buttons to adjust the dynamic range between off and full. 3.

  • Page 24: Connection To An Audio System And Tv-Set Using The Component Outputs

    Don’t use a coaxial cable and an optical cable at the same time! Maintenance DAP Audio-CD-Player DVMP-150 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.

  • Page 25: Product Specifications

    Product Specifications Power supply: AC 115/240 - 50/60 Hz Power consumption: 25 Watt Video signal: NTSC/PAL S/N ratio: >92dB Audio output: 2.0 V p-p Video output: 1.0 V p-p Video/picture: MPEG1, MPEG2 Audio: MPEG1, MPEG2, Dolby Digital, DTS, Analog Frequency response: 20Hz - 20 kHz Mic input: XLR balanced, Jack unbalanced Audio output: stereo RCA unbalanced Dimensions: 482 x 56 x 260 mm (LxWxH)
  • Page 26 2013 Dap Audio.
