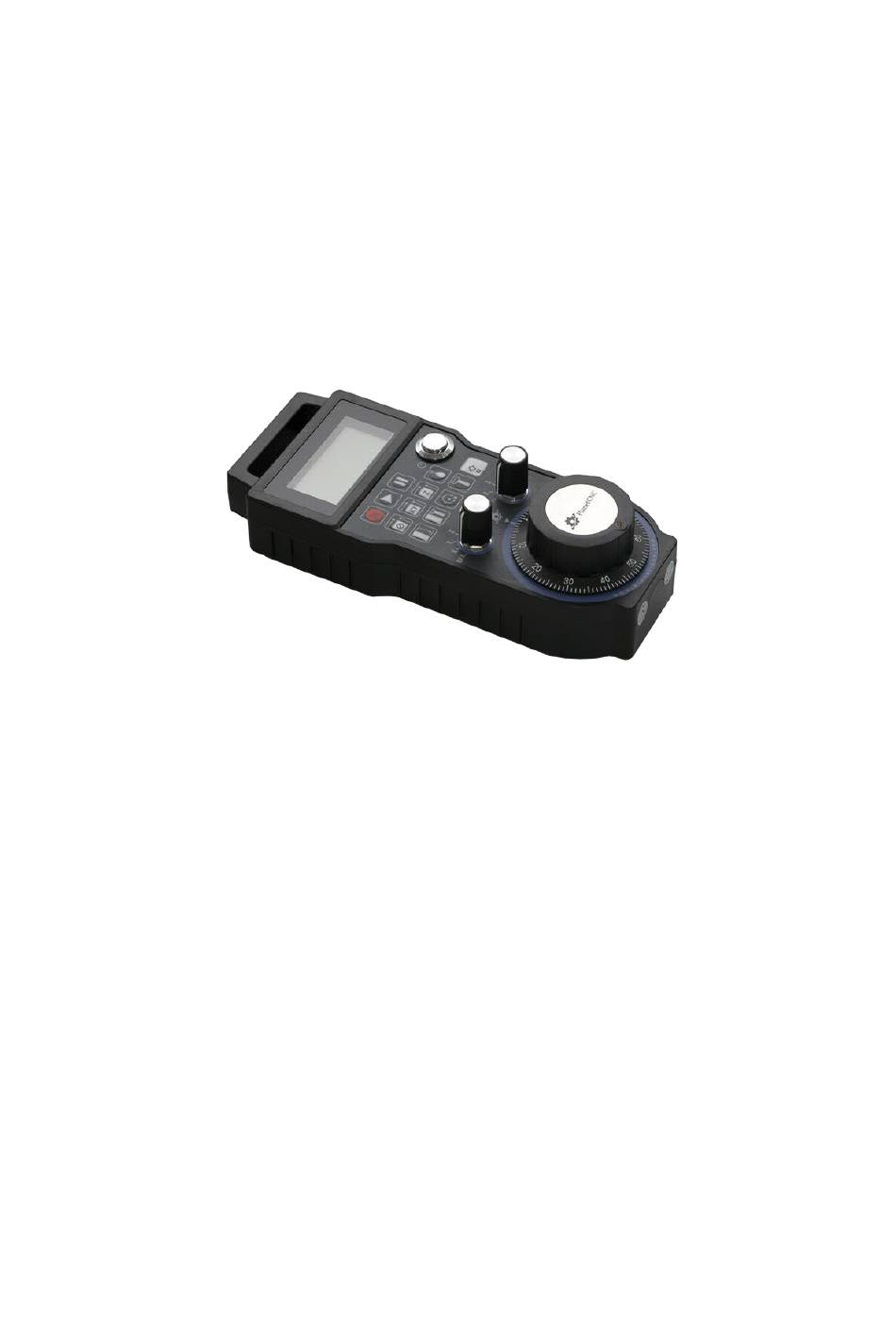

- Page 1 PlanetCNC Wireless handwheel user manual...
- Page 2 -Durable rubber protection guard -Long lasting batteries (Batteries are not included!) -High quality long range easy mountable antenna with detachable cable Kit includes: -Wireless handwheel with rubber guard -Antenna with extension cable -USB dongle transceiver -Metal hanger bracket and screws for mounting...
- Page 3 -Attach cable with antenna and USB dongle. -Connect the USB dongle with your PC's USB port. -Turn ON the handwheel using ON/OFF switch -Launch PlanetCNC TNG sw and check the Jogging/Handwheel settings section. If handwheel is recognized by TNG software, Wireless Handwheel option should be enabled:...
- Page 4 Handwheel button layout:...
- Page 5 Handwheel button functionality: E-Stop button: Initiates E-Stop. Start: Starts program. Pause: Pauses program. Stop: Stops program. Offset zero button: Sets work position offset value to zero. Work position XY zero button: Sets current XY work position to zero.
- Page 6 Work position Z zero button: Sets current Z work position to zero. Flood ON/OFF button: Turns flood ON/OFF. Mist ON/OFF button: Turns mist ON/OFF. Measure Height button: Initiates Measure Height procedure. Measure Tool Length button: Initiates Tool Length measurement procedure. Move To Zero XY button: Initiates Move to Zero procedure.
- Page 7 Home button: Initiates Home procedure. Spindle ON/OFF button: Turns spindle ON/OFF. Cycle button with axis selected: Toggles Machine and Work coordinates. Selects group of axes: X,Y,Z or A,B,C or U,V,W Cycle button with feed override selected: Toggles Feed and Traverse override.
- Page 8 S: Spindle speed override menu. C: Additional info of currently selected jogging mode. Jogging mode select switch: Selects jogging mode from 1-5. Jogging modes are configured in PlanetCNC TNG sw under File/Settings/Jogging/Handwheel. See PlanetCNC TNG user maual for more info.
