JKN WTS-3 Quick Start Manual

WEEKLY PROGRAMMABLE TIME SWITCH

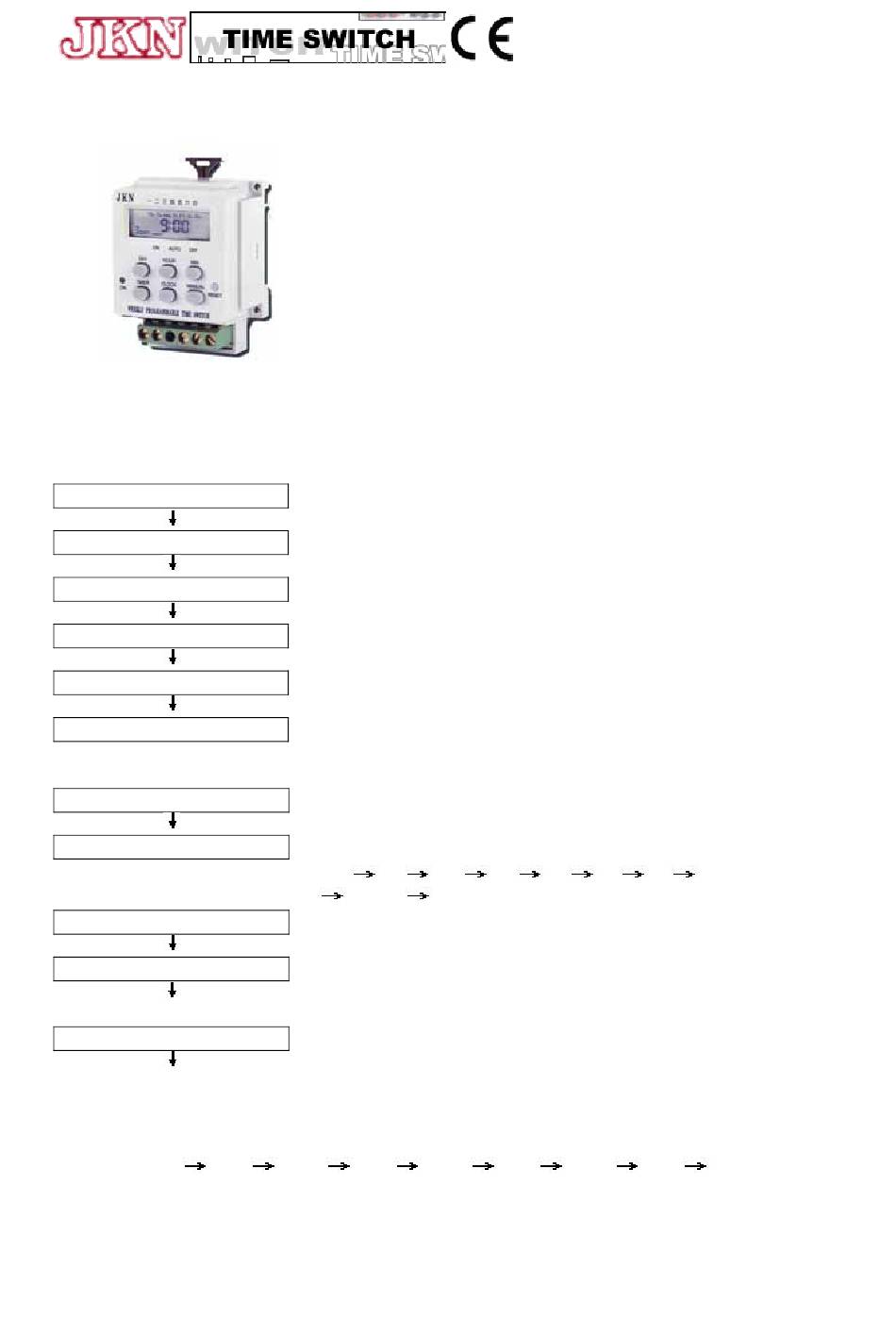

A. SETTING PRESENT DAY AND TIME
press CLOCK + Day
release CLOCK & DAY
press CLOCK + HOUR
release CLOCK & HOUR — The hour will be set.
press CLOCK + MIN
release CLOCK & MIN
B. TO SET PROGRAMS
press TIMER key
press DAY key
press HOUR key
press MIN key
press TIMER again
*Repeat the setting process ( press DAY key)
After program 1 OFF is set completely, press TIMER again to enter program 2 ON setting, and so on,
program 2 OFF
3 ON
There are 6 ON/OFF programs for setting. But if you need only 2 or 3 programs, just ignore the rest
programs.

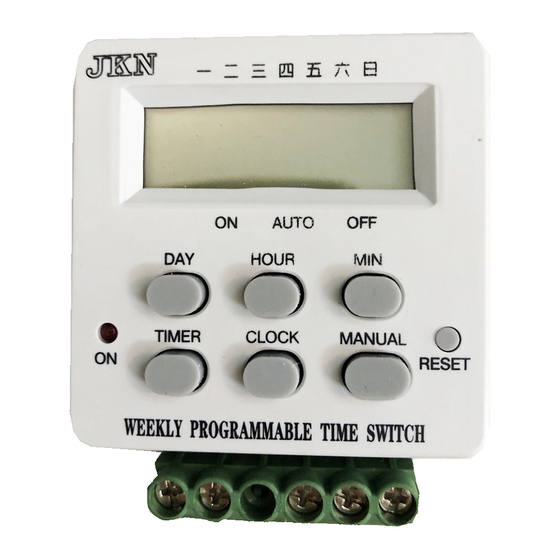

MODEL: WTS-3
FEATURES:
* SIX ON/OFF SETTING
* 10 SETTING DAY FOR CHOICE:
(1)MO (2)TU (3)WE (4)TH (5)FR (6)SA (7)SU (8)MO+TU+WE+TH+FR
(9)SA+SU(10)FROM MO TO SU
MINIMUM SETTING INTERVAL: 1 MINUTE
SUPPLY VOLTAGE: 100-250VAC, 12V, 24V
OUTPUT: 7A 250VAC, 1 CONTACT
MAX. LOAD: 2000VA
INSIDE BATTERY:
NI-CA D*1 PC (JUST FOR CLOCK RUNNING, NOT FOR OUTPUT
ON/OFF SWITCHING
— The day of a week will be changed from MO (Monday) to SU (Sunday).
— The day of a week will be set.
— The hour will shift fast from 0 to 23.
— The minute will shift fast from 0 to 59.
— The minute will be set.
— Enter program mode (Program 1 ON is ready for setting.)
— To select the setting day of a week. There are 10 choices for setting
MO TU WE
SA+SU MO+TU+WE+TH+FR+SA+SU
— Set hour
— Set minute
*Program 1 ON setting has been completed now.
— Program 1 OFF is ready for setting
3 OFF 4 ON 4 OFF
TH FR SA SU
5 ON 5 OFF 6 ON
MO+TU+WE+TH+FR
6 OFF.
