DR. ALFRED MÜLLER
METEOROLOGISCHE INSTRUMENTE KG
R. FUESS
Portable Anemometer AE400
(optional with telescopic mast)
The wind display AE402-D was designed to operate with the combined windsensor AE402
but can be used with the separate wind sensors W400-1 and W400-2 too. Together with its
power pack, a transport case and compass it forms the portable wind measuring equipment
AE400 with large applicability. All single components are designed for rough, external use.
Besides its use as portable reference wind equipment it can be used together with a portable
mast as wind measuring station as well as mounted on motor vehicles or on ships or used as a
permanent land station.
1
Advertisement
Summary of Contents for DR. ALFRED MULLER AE400
- Page 1 AE400 with large applicability. All single components are designed for rough, external use. Besides its use as portable reference wind equipment it can be used together with a portable mast as wind measuring station as well as mounted on motor vehicles or on ships or used as a permanent land station.
- Page 2 DR. ALFRED MÜLLER METEOROLOGISCHE INSTRUMENTE KG R. FUESS Display AE402-D The display is placed in a build-in housing 135 x 135 mm and contains the sensor interfaces, the display-driver, the accumulators and the battery charger. The display can be supplied by any direct voltage between 9 and 15 Volt.

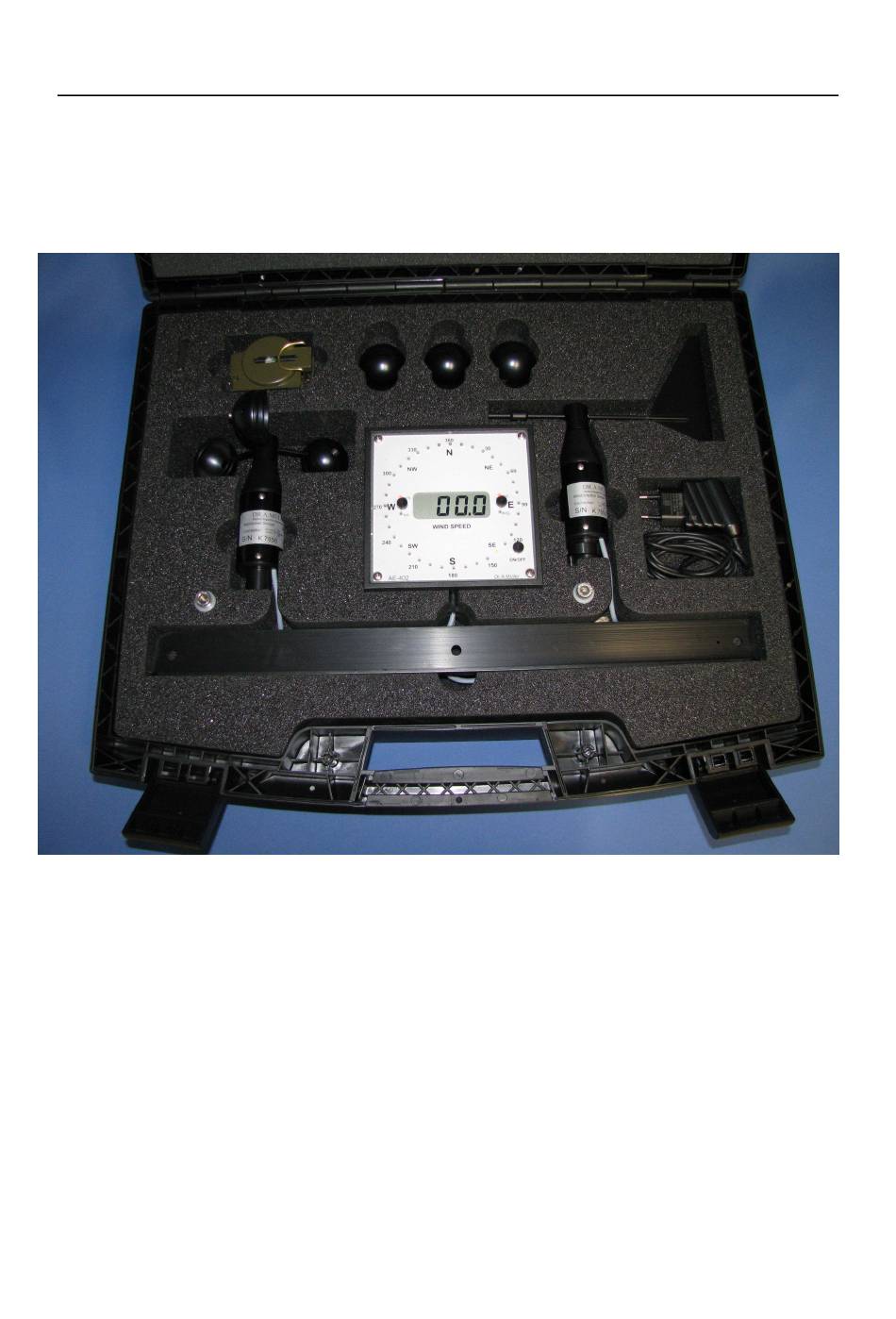

- Page 3 DR. ALFRED MÜLLER METEOROLOGISCHE INSTRUMENTE KG R. FUESS Assambly in case for transportation Wind Display AE402 D Speed sensor W400–1 with 6 m cable Direction sensor W400-2 with 6 m cable Compass Three spare cups for speed sensor Mains adapter Cross arm for speed and direction sensors...
- Page 4 DR. ALFRED MÜLLER METEOROLOGISCHE INSTRUMENTE KG R. FUESS Technical Data: Wind display AE402-D Construction : Robust case from plastic and aluminium, useable as switchboard instrument, circular connectors for input and output Direction Display : 36 luminescence diodes super red Display Range : 10°...360°...
- Page 5 DR. ALFRED MÜLLER METEOROLOGISCHE INSTRUMENTE KG R. FUESS Technical Data: Wind Speed Sensor W400-1 Sensor type : Cup wheel anemometer with dry-reed contact and 4 Alpha magnets Measuring Range : 0...50 m/s rsp. 0...100 kn Accuracy : 3% of measuring value Threshold point : 0.3 m/s Distance per revolution...
- Page 6 DR. ALFRED MÜLLER METEOROLOGISCHE INSTRUMENTE KG R. FUESS Instructions for 1. Putting into Operation and Adjusting of the Wind Direction Sensor Bring the tripod of the mast in a proper position and fix the clamp screw. Mount the cross arm and wind sensors on the not extended mast, insert the sensor cable plug (s) into the display socket (s) and switch the display on.
- Page 7 DR. ALFRED MÜLLER METEOROLOGISCHE INSTRUMENTE KG R. FUESS Telescopic Mast TKM10 The telescopic mast TKM10 is a portable mast made from aluminium with a tripod. It consists of 7 tubes with diameters from 90 mm to 30 mm. To secure the mast against strong wind span rope’s are included.
