- Page 1 SOLAR INVERTER/CHARGER MPPT 4KW-12KW Appliances Air- Washing Fridge conditioning machine...
-
Page 3: Table Of Contents
Table of Contents ABOUT THIS MANUAL ......................1 Purpose ......................... .1 Scope ..........................1 SAFETY INSTRUCTIONS ....................1 INTRODUCTION .......................2 Features ..........................2 Basic System Architecture ....................2 Product Overview ......................3 INSTALLATION .........................4 Unpacking and Inspection ....................4 Preparation ........................4 Mounting the Unit ......................4 Battery Connection ......................5 AC Input/ Output Connection ....................6... -
Page 4: About This Manual
ABOUT THIS MANUAL Purpose This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read this manual carefully before installations and operations. Keep this manual for future reference. Scope This manual provides safety and installation guidelines as well as information on tools and wiring. The following cases are not within the scope of warranty 1. -
Page 5: Introduction
INTRODUCTION This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. -
Page 6: Product Overview

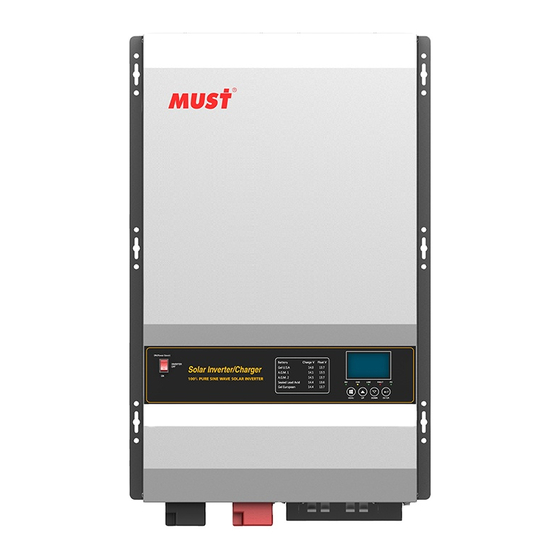

Product Overview INVERTER Solar Inverter Solar Inverter 3 4 5 6 11 12 13 14 1.Power saver on/off switch 2.LCD display 3.Status indicator 4.Discharging/Charging indicator 5.Fault indicator WIFI 6.Function buttons 7.Remote control port 8.BAT - 9.FAN 17 18 19 15 16 10.BAT + 11.WI-FI port 12.USB communication port... -
Page 7: Installation
INSTALLATION Unpacking and Inspection Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package: The unit x 1 User manual x 1 USB cable x 1 Software CD x 1 BTS Line x 1(Option) WIFI Key x 1(Option) -
Page 8: Battery Connection
Install the unit by screwing six screws INVERTER INVERTER Battery Connection CAUTION: For safety operation and regulation compliance, it's requested to install a separate DC over-current protector or disconnect device between battery and inverter. It may not be requested to have a disconnect device in some applications, however, it's still requested to have over-current protection installed. -
Page 9: Ac Input/Output Connection
NOTE: Please only use sealed lead acid battery or sealed GEL/AGM lead-acid battery. 3. Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the bolts are tightened with torque of 2-3 Nm. Make sure polarity at both the battery and the inverter/charge is correctly connected and ring terminals are tightly screwed to the battery terminals. - Page 10 Please follow below steps to implement AC input/output connection: 1. Before making AC input/output connection, be sure to open DC protector or disconnector first. 2. Remove insulation sleeve 10mm for six conductors. And shorten phase L and neutral conductor N 3mm. 3.
- Page 11 PV Connection CAUTION: Before connecting to PV modules, please install separately a DC circuit breaker between inverter and PV modules. WARNING! All wiring must be performed by a qualified personnel. WARNING! It's very important for system safety and efficient operation to use appropriate cable for PV module connection.
- Page 12 PV Wiring Wiring option 1 4-6KW MPPT 80A PV Input Wiring option 2 8-12KW MPPT 100A PV Input Wiring option 3 8-12KW MPPT 200A PV Input Recommended PV module configuration PV Module Spec.(reference) Inverter Model Solar Input Q’ty of modules -260W 24V/80A 3S3P...
-
Page 13: Final Assembly
Final Assembly After connecting all wirings, please put bottom cover back by screwing two screws as shown below. INVERTER Communication Connection Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and follow on-screen instruction to install the monitoring software. For the detailed software operation, please check user manual of software inside of CD. -
Page 14: Operation And Display Panel
Remote control Apart from the switch panel on the front of the inverter, an switch panel connected to the RJ 11 port at the DC side of the inverter thru a standard telephone cable can also control the operation of the inverter. If an extra switch panel is connected to the inverter via "remote control port"... -
Page 15: Lcd Display Icons
LCD Display Icons Function description Icon Input Source Information and Output Information Iindicates the AC information Indicates the DC information Indicate input voltage, input frequency, PV voltage, battery voltage and charger current. Indicate output voltage, output frequency, load in VA, load in Watt and discharging current. Configuration Program and Fault Information Indicates the setting programs Iindicates the warning and fault codes. - Page 16 In battery mode, it will present battery capacity. Load Percentage Battery Voltage LCD Display <1.717V/cell 1.717V/cell~1.8V/cell Load >50% 1.8V/cell~1.883V/cell >1.883 V/cell <1.817V/cell 1.817V/cell~1.9V/cell 50%> Load>20% 1.9 V/cell ~1.983V/cell >1.983 V/cell <1.867V/cell 1.867V/cell~1.95V/cell Load<20% 1.95V/cell~2.033V/cell >2.033 V/cell Load Information Indicates overload. Indicates the load level by 0-24%, 25-49%, 50-74% and 75-100%.
-
Page 17: Lcd Setting
LCD Setting After pressing and holding "ENTER" button for 2 seconds, the unit will enter setting mode. Press "UP" or "DOWN" button to select setting programs. And then, press "ENTER" or "MENU" button to confirm the selection and exit. Setting Programs: Program Description Selectable option... - Page 18 Set the output voltage amplitude, Output voltage (220VAC-240VAC) 50HZ(default) 60HZ Output frequency Solar energy provides power to charge (default) battery as first priority. Solar supply priorit Solar energy provides power to the loads as first priority. Bypass disable(default) Bypass enable Overload bypass: When enabled, the unit will transfer to line mode if overload occurs in battery mode.
- Page 19 Flooded AGM (default) LEAD Battery type Lithium Ion User-Defined If "User-Defined" LI is selected, battery charge voltage and low DC cut-off voltage can be set up in program 17, 18 and 19. 24V model default setting: 28.2V If "User-Defined" LI is selected in program 14,this program can be set up.
- Page 20 Available options for 24V models: 23.0V (default) Setting range is from 22.0V to 29.0V. Increment of each click is 0.1V. Battery stop discharging voltage when grid is available Available options for 48V models: 46.0V (default) Setting range is from 44.0V to 58.0V. Increment of each click is 0.1V.
- Page 21 Battery equalization Battery equalization disable(default) Battery equalization Available options for 24V models:28.8V Battery equalization voltage Available options for 48V models:57.6V Setting range is from 24.0V to 29.2V for 24V model and 48.0V to 58.4V for 48V model. Increment of each click is 0.1V. 60min(default) Setting range is from 5 min to 900min.
-
Page 22: Fault Reference Code
Fault Reference Code Fault Code Fault Cause LCD Indication Fan is locked when inverter is off Inverter transformer over temperature Battery voltage is too high Battery voltage is too low Output short circuited Inverter output voltage is high Overload time out Inverter bus voltage is too high Bus soft start failed Main relay failed... - Page 23 Solar charger current is uncontrollable Inverter grid voltage is low Inverter grid voltage is high Inverter grid under frequency Inverter grid over frequency Inverter over current protection error Inverter bus voltage is too low Inverter soft start failed Over DC voltage in AC output Battery connection is open Inverter control current sensor error Inverter output voltage is too low...
-
Page 24: Warning Indicator
Warning Indicator Warning Code Warning Event Icon flashing Fan is locked when inverter is on. Fan 2 is locked when inverter is on. Battery is over-charged. Low battery Overload Output power derating Solar charger stops due to low battery Solar charger stops due to high PV voltage Solar charger stops due to over load Solar charger over temperature PV charger communication error... -
Page 25: Operating Mode Description
Operating State Description... -
Page 26: Display Setting
Display Setting The LCD display information will be switched in turns by pressing "UP" or "DOWN" key. The selectable information is switched as below order: battery voltage, battery current, inverter voltage, inverter current, grid voltage, grid current, load in Watt, load in VA, grid frequency, inverter frequency, PV voltage, PV charging power, PV charging output voltage, PV charging current. -
Page 27: Table 2 Inverter Mode Specifications
Line mode: Circuit Breaker Output Short Circuit Protection Battery mode: Electronic Circuits Efficiency (Line Mode) >95%(Rated R load, battery full charged) 10ms typical (UPS,VDE) Transfer Time 20ms typical (APL) Output power derating: 230Vac model: When AC input voltage drops to 95V or 170V depending on models, the output power will be derated. -
Page 28: Table 3 Charge Mode Specifications
Low DC Cut-off Voltage @ load < 20% 21.0Vdc 42.0Vdc @ 20% ≤ load < 50% 20.4Vdc 40.8Vdc @ load ≥ 50% 19.2Vdc 38.4Vdc High DC Recovery Voltage 29Vdc 58Vdc High DC Cut-off Voltage 30Vdc 60Vdc No Load Power Consumption 100W 120W 100W... -
Page 29: Table 4 General Specifications
Charging algorithm for lead acid battery Charging algorithm for Lithium battery Table 4 General Specifications 10KW 12KW INVERTER MODEL Safety Certification Operating Temperature Range 0°C to 40°C Storage temperature -25°C~ 60°C Dimension (D*W*H), mm Net Weight, kg... -
Page 30: Trouble Shooting
TROUBLE SHOOTING LCD/LED/Buzzer Explanation / Possible cause Problem What to do LCD/LEDs and buzzer Unit shuts down will be active for 3 The battery voltage is too low 1. Re-charge battery. automatically during seconds and then ( < 1.91V/Cell) 2. Replace battery. startup process. - Page 32 SOLAR INVERTER/CHARGER 420-00355-01...
