Summary of Contents for Wido WD030120350

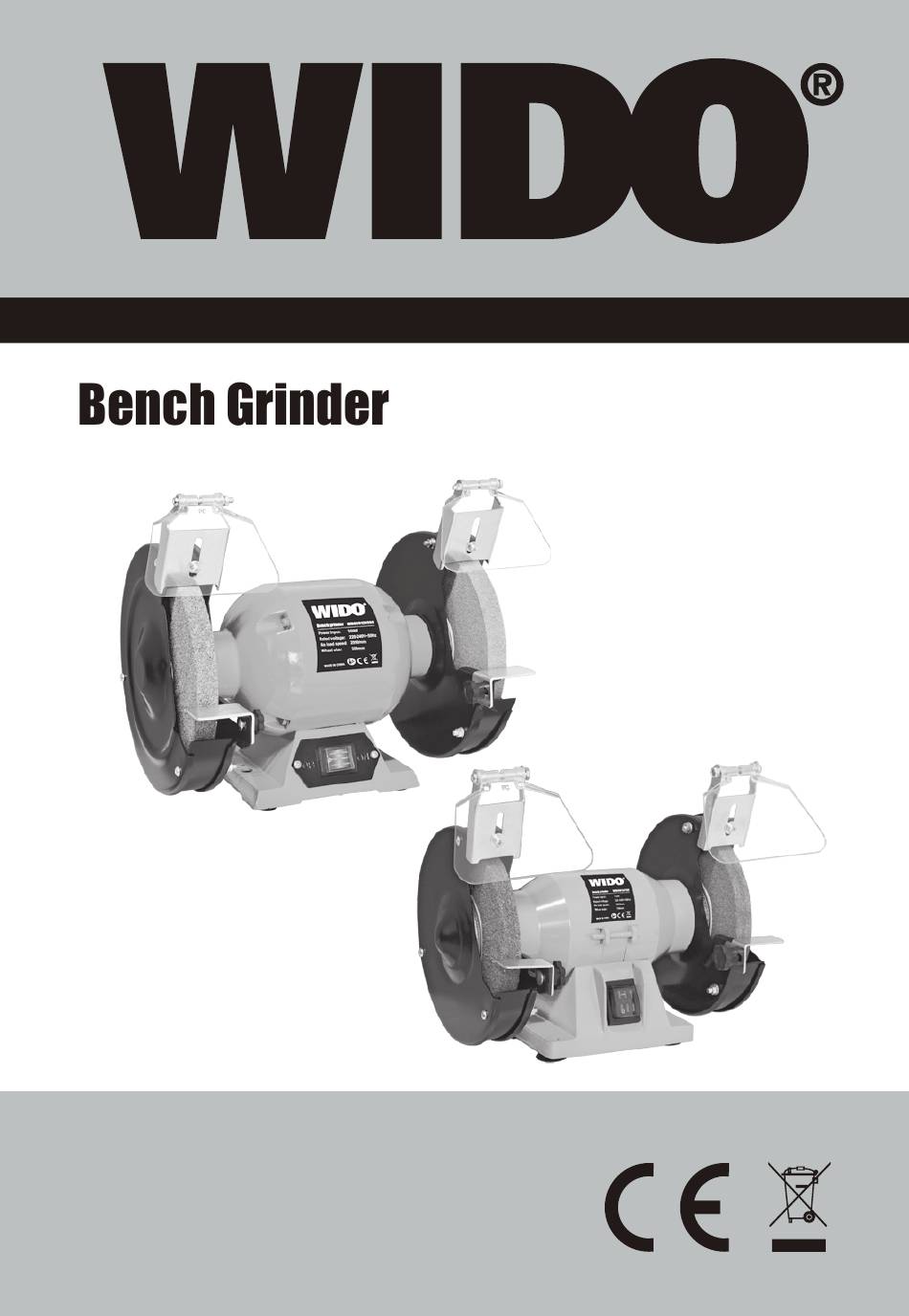

- Page 1 WD030120150 WD030120350 150W/350W...
- Page 2 WD030120150/ WD030120350 Thank you for purchasing a WIDO product. We are confident that you will appreciate the quality of the product and you will be entirely satisfied with your purchase. Please read carefully the user safety and operating instruction on how to operate this product correctly within safety...
- Page 3 WD030120150/ WD030120350 ≤1.5mm...
-
Page 4: Component List
150W/350W BENCH GRINDER COMPONENT LIST 1) On/off switch 2) Tool rest locking knob 3) Tool rest 4) Eye shield 5) Spark deflector 6) Wheel guard 7) Grinding wheel 8) Grinding wheel flange Outer grinding wheel flange Grinding wheel locking nut 11) Base 12) Mounting holes NORMAL ACCESSORIES... -
Page 5: General Power Tool Safety Warnings
150W/350W BENCH GRINDER GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 6 150W/350W BENCH GRINDER f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 7: Important Note
150W/350W BENCH GRINDER 11) Always use proper guard with grinding wheel. A guard protects operator from broken wheel fragments. 12) Always use eye shields, making sure they are properly adjusted and secured. 13) Keep spark deflectors close to the wheel and readjust inward as the wheel wears. 14) Check that the tool rests are properly adjusted before commencing use. -
Page 8: Technical Data
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice TECHNICAL DATA Model WD030120150 WD030120350 Voltage 110-120V AC 220-240V AC 110-120V AC 220-240V AC... -
Page 9: Operating Instructions
150W/350W BENCH GRINDER OPERATING INSTRUCTIONS Note: Before using the power tool, read the instruction manual carefully. 1. Intended use The machine is intended for sharpening tools such as drill bits and chisels or grinding small metal parts. It is not suitable for grinding heavy sheet metal parts. It is not suitable for grinding soft substance such as wood, plastic, lead, magnesium and light alloys. - Page 10 150W/350W BENCH GRINDER 5. Mounting grinder to workbench 1) The grinders are supplied with 4 rubber mounts which assist in reducing the transmission of vibration. If grinder is to be used in a permanent location, it is strongly recommended that the grinder fastened securely to a firm supporting surface such as a stand or workbench using mounting holes.
- Page 11 150W/350W BENCH GRINDER 9. Grinder adjustments During the life of the grinder some adjustments are required to maintain a safe working environment. Please ensure the following: 1) Always adjust the eye shields to the most comfortable and most effective angle to suit the task being performed.
-
Page 12: Maintenance
150W/350W BENCH GRINDER MAINTENANCE Warning: Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. 1. Regularly check that all the fixing screws are tight. They may vibrate loose over time. 2. Blowing dust and grit out of the wheel guards using compressed air is a necessary regular maintenance procedure. - Page 13 150W/350W BENCH GRINDER EXPLOSIVE VIEW OF WD030120150...
- Page 14 150W/350W BENCH GRINDER PART LIST OF WD030120150 DESCRIPTION Q’TY DESCRIPTION Q’TY Grinder Wheel Locking knob Screw Screw Screw Spring washer Eye shield bracket Base Washer Screw Spring washer Cable clamp Cable protector Eye shield Fixed plate Bearing Left tool rest Rotor Left guard Stator...
- Page 15 150W/350W BENCH GRINDER EXPLOSIVE VIEW OF WD030120350...
- Page 16 150W/350W BENCH GRINDER PART LIST OF WD030120350 DESCRIPTION Q’TY DESCRIPTION Q’TY Screw Right tool rest Left tool rest Tooth washer Washer Wheel flange Lock knob Nameplate of wheel Switch panel Grinder Wheel Screw Lift guard Switch Rubber feet Base plate...
- Page 17 WD030120150/ WD030120350...
- Page 18 WD030120150/ WD030120350...
- Page 19 WD030120150/ WD030120350...
- Page 20 MADE IN CHINA Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com...
