Summary of Contents for Oypla 3604

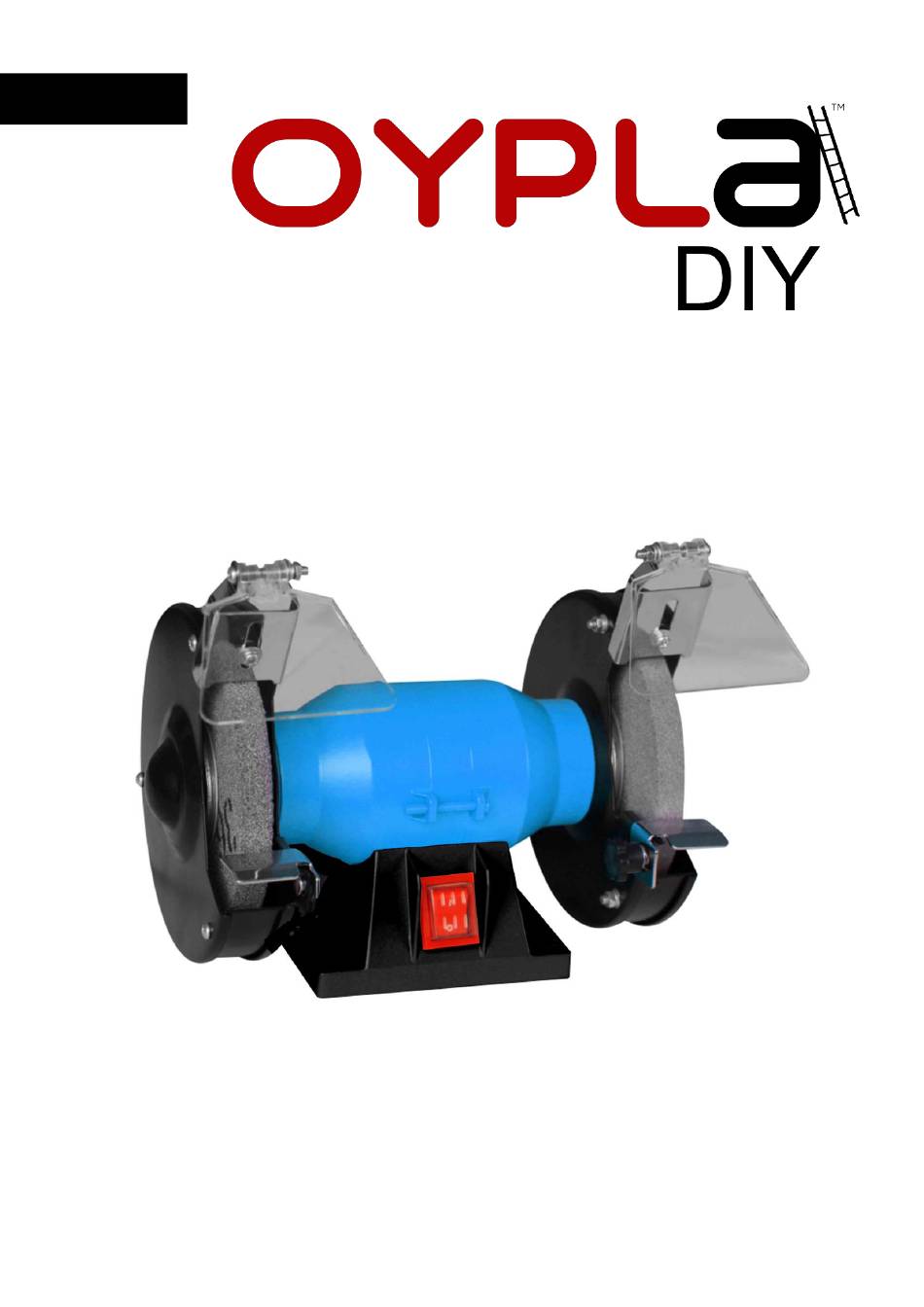

- Page 1 User Manual Bench Grinder USER MANUAL Model No: 3604...
-
Page 2: Safety Instructions
Make sure the product is off, unplugged from the socket and been left for five minutes to remove the risk of electrical shock. • If the product is damaged or has any defects, please contact cservice@oypla.com USER MANUAL Model No: 3604... -
Page 3: Operating Instructions
Operating Instructions 1. On/Off Switch 13. Inner Flange 5. Transparent Screen 9. Mounting Screw 2. Grinding Wheel 6. Workplace Support 10. Nut 3. Wheel Guard 7. Adjusting Screw 11. Spindle Nut 4. Spark Guard 8. Mounting Hole 12. Outer Flange Mounting the Bench Grinder Replacing a Grinding Wheel The grinder always must be... - Page 4 Mounting and Adjusting the Spark Guard You must regularly adjust the spark guards in order to compensate the wear of the grinding wheels. 1. Mount the spark guard (4) to the wheel guard (3) using the screw (9). 2. Adjust the distance between the spark guard and the grinding wheel (2) to as close as possible, with a maximum of 2mm distance.
- Page 5 Please retain a copy of all instructions for future consultation. Imported into the EU by Oypla.com LLP, Uxbridge, UB8 2FX Environmental Protection Products bearing the symbol shown above means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste.
