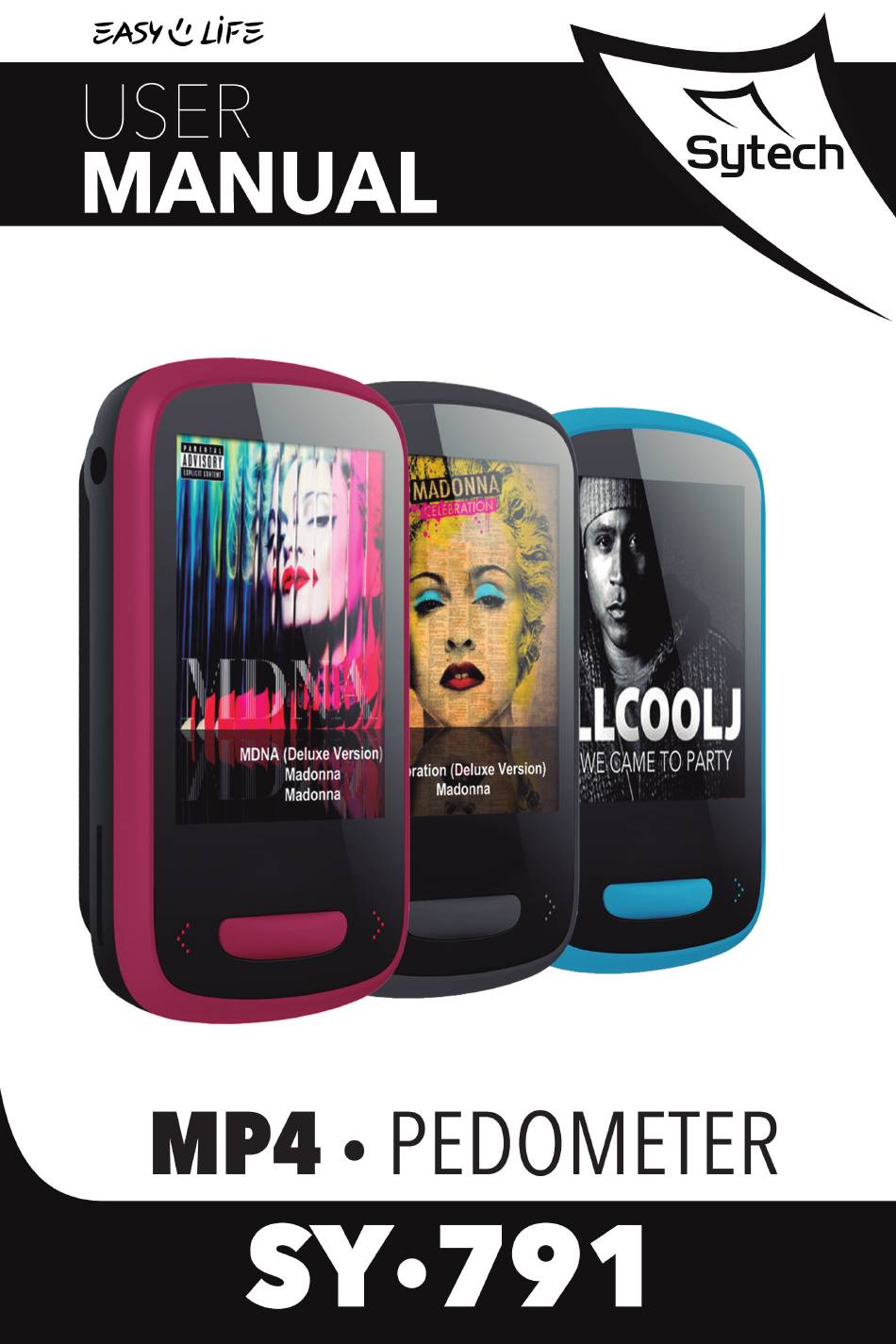

Sytech SY-791 User Manual

Mp4 pedometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SY-791 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sytech SY-791

Summary of Contents for Sytech SY-791

  • Page 2 WELCOME Thank you for purchasing the new Bluetooth MP4 media player 8GB SY-791. Read this manual before using this product and heed the warnings listed below. Keep this manual in a safe place for future reference.
  • Page 3 Caution This manual contains important safety measures and information on the correct use of the device. Therefore it must be read carefully before using the device, in order to avoid any unexpected accidents. ◆Do not place the player in areas with high levels of dirt, moisture or temperature, (Especially vehicles with closed windows in summer).

  • Page 4: Package Content

    ◆ Do not disassemble the player. Do not use alcohol, solvents or benzene to clean the surface of the device. ◆ Do not use the player in areas where use of electronic devices is forbidden (such as airplanes). ◆ Do not use the player while driving or walking, to avoid road accidents.
  • Page 5 Player device description...

  • Page 6: Basic Operation

    Basic Operation Turn ON/OFF To turn ON, hold the “ ”button for about 2 seconds To turn OFF, hold the “ ”button for about 2 seconds Reset the device If the device freezes, malfunction or does not turn off, reset the device by pressing the "RESET" button located at the rear of the device.

  • Page 7: Charge The Battery

    Charge the battery Battery level indicator The battery icon in the upper right corner of the unit shows the amount of battery charge. This icon also indicates that the device is charging. When the battery is fully charged, the charge level icon will present 3 bars.
  • Page 8 or a USB charger (not more than 5v DC and 300mAh). If you press "M", a charging battery icon will be displayed. The player will take approximately 4 hours to fully charge. Pressing the "M" will display a full battery icon.
  • Page 9 OPERATING MODES Pedometer This MP4 player can be used as a pedometer while you listen to your favorite music, radio, etc. To use this mode, enter the pedometer function and press "Play" (Start). Then go to the radio or music mode and start playback. Now you can listen to your favourite music while the MP4 player counts your steps.
  • Page 10 Select “Pedometer” option in the Main Menu: Press " " to enter into Step counter mode. Press " " to start Press " " to stop the Step counter Enter to (History, Walk, Run) Menu Press one of the buttons “ ”...

  • Page 11: Music Playback

    Note: When the Pedometer mode is active, Auto Power Off function won’t be available ("Settings" --- "Auto Off") Music Playback Select “Music” option on the Main Menu: Press " "to enter into Music Mode. Play/Pause Press“ ”button to play or pause the music playback.

  • Page 12: Volume Adjustment

    Fast Reverse/Fast Forward Hold down “ ”to rewind a track, or hold down “ ”to fast forward. Volume adjustment Press "Volume +" or "Volume -" to increase or decrease the volume Select a music file Press "M" to enter the current folder listing. Press "M"...
  • Page 13 Press " "to select YES or NO Press " "to confirm the selection. Press "M" until you return to the Main Menu. Exit “Music” Mode Press "M" until you return to the Main Menu. ！！You can select some music options, if applicable: Select "Settings"...
  • Page 14 Repeat Mode Function Only once Play a track only once Repeat once Repeat a single track once File once Play all tracks in the subfolder once. Repeat File Repeat all tracks in a selected subfolder. All once Play all tracks in order once Repeat all Play all the tracks...
  • Page 15 EQ (equalizer) settings You can select different EQ modes: Normal, Rock, Pop, Classic, Bass, Jazz, and EQ User modes (You can customize this option in "User EQ Settings"). Bluetooth Connecting to Bluetooth Select the "Bluetooth" option in the main menu...
  • Page 16 Press " "button to enter into Bluetooth mode. The device will automatically search for a nearby “Bluetooth Speakers” or “Bluetooth earphones” Please follow the on screen instructions to perform the desired actions. Connect to a scanned Bluetooth device Press “ ”to connect to a Bluetooth speaker or Bluetooth earphones.
  • Page 17 Exit Bluetooth mode Press "M" until you return back to the Main Menu. Pairing troubleshooting If the MP4 player does not pair with your device under Bluetooth mode, press down “ " to close the connection and turn off your external BT device.
  • Page 18 Play Music in Bluetooth Mode Once the MP4 player is paired to your Bluetooth speaker or Bluetooth earphones, you can exit the “Bluetooth” menu and return to the main menu. If you were already playing music, you will now hear it on the Bluetooth speaker. If this is not the case, please enter into the music menu and select the music you wish to playback.
  • Page 19 Delete a Bluetooth device Select a Bluetooth device with “ ”, Hold down the "Volume -" button to delete a Bluetooth device. A window will appear on the screen prompting "Delete Device? Press “ ” to select YES or NO Press “...
  • Page 20 Note: The Bluetooth function is incompatible with the rest of the options such as: (Record, Navigation, FM, etc...)
  • Page 21 Recording From the main menu select "Record" option Press “ ” to enter into Recording Mode. Start/Stop Recording Press “ ” to start/stop a recording Save File Press "M" to save the file. (It will be recorded into the "Memory FLASH" under the "VOICE"...
  • Page 22 Press "M" to select the "Voice" folder. Enter and choose the desired file recording and play it. Exiting the "Record" mode Press "M" until you return to the main menu. !!! Before using this function, you can adjust the settings from the main menu. Select "Settings"...
  • Page 23 Press “ ”to enter into Navigation Mode. Select files Press “ ”and select from the options of Flash or Micro SD files. (Insert a TF card first with music files, up to 32GB, previously must be formatted in FAT32) Press“ ”to access the files.
  • Page 24 Exiting the "Navigation" mode Press "M" until you return to the main menu. !!! Navigation is a resource manager that can help to organize all files stored in the device. From here you can manage these files at ease. In addition, it lets you select and play files directly from this option.
  • Page 25 Channel Search Press “ ” to start searching up/down channels. Hold down “ ” or “ ” to start an automatic scan of all available stations. Open Subfolder Press “ ” to open a subfolder (Manual), (Preset), (Memory), (Clear) and (Automatic), Save Station Press “...
  • Page 26 Press “ ” or “ ” to select the station you wish to delete. Press “ ” to confirm (A dialogue box appears” Delete channel?”) Press “ ” to select YES or NO Press “ ” to confirm the selection. Automatic Search Press “...
  • Page 27 Note: In the FM mode, the earphone is used as antenna. Keep the earphone cable extended to get a better reception. E-Book Select “Attachment” function on the Main Menu. Press “ ” to enter on “Attachment” mode. Select “Text” option Select text File Press “...
  • Page 28 If there are no text files on the Flash memory or in the micro SD, a message will appear: “No file!” Delete File Select the file to delete and hold down the “Volume -" button. A dialogue box will appear: “Delete file?” Press “...
  • Page 29 Save Favorite text Visit the desired text page Press “ " to open “Favorites” Press “ ” or “ ” to select the desired position. Press “ ” to save the actual page. Read Favorite text Visit any text Press “ ”...
  • Page 30 Photo Select “Attachment” function on the Main Menu. Press “ ” to enter on “Attachment” mode. Select “Photo” option Select Photo file Press “ ” and select from the options of Flash or Micro SD folders with BMP and JPEG photo files (first insert TF card up to 32GB formatted in FAT32) Press “...
  • Page 31 Delete File Select the file to delete and hold down the “Volume -” button. A dialogue box will appear: “Delete file?” Press “ ” to select YES or NO Press “ ” to confirm the selection. Play Photo Press “ ”...

  • Page 32: Video Player

    Exit Photo Mode Press “M” until you return to the main menu. Supported photo formats: BMP and JPEG. Video Player Select the “Attachment” function on the Main Menu. Press “ ” to enter the “Attachment” mode. Select “Video” option Select a video file Press “...
  • Page 33 previously converted to AVI with the supplied converter. Press “ ” to access to the AVI video files. (If there are no files in a subfolder press "M" to return to the previous list). If there are no video files on the Flash memory or in the micro SD, a message will appear “No file!”...
  • Page 34 Fast Rewind/Fast forward Hold down“ ” button to fast rewind and hold down “ ” button to fast forward Adjust volume Press "Volume +" or "Volume -" buttons to increase/decrease the volume Exit “Video” mode Press “M” until you return to the main menu. Note: The MP4 player can only playback AVI video format (Pixels: 160*128).
  • Page 35 AVI Conversion Tool Select "AVI Conversion Tools" and follow the steps to install AVIConverter 1.1.6 version: A disk icon with the name "AVI Converter" appears, open it and a blue window will appear. 1- To select the video we want to convert to AVI extension: Click "Add", another window will open on the "Conversion Setting"...
  • Page 36  Save: Press and it will change color.  Close: Click. 2- Then we see an entry on the main screen: AVIConverter 1.1.6:  Convert Now: Press to convert the file to .AVI, ("Progress" will be activated until 100% of the conversion is completed).
  • Page 37 Settings From the main menu press "Settings" Press “ ” to enter into Setting Mode Time/Date Settings Select “Time” Press “ ” to enter into Time screen Press “ ” to select an element Press “volume+/volume –“to adjust it. Press “ ”...
  • Page 38 Press “ ” and select "light time" (You can choose how long after the last usage should the screen turn off) Press “ ” to confirm the settings. (Press “M” to return to the previous menu). Screen Brightness Settings Select “Display“. Press “...
  • Page 39 Language Settings Select “Language “. Press “ ”to enter in Language Press “ ” and select your language. Press “ ” to confirm the settings. (Press “M” to return to the previous menu. System Information Select “System“. Press “ ”to enter in System Press “...
  • Page 40 Custom Values settings Select “System“. Press “ ”to enter in System Press “ ”choose Custom Values Press “ ” to confirm the settings. A dialogue box will appear: “Disable?” Press “ ” to select YES or NO Press “ ” to confirm the selection. (Press “M”...

  • Page 41: Lock Function

    “Lock” Function Hold "M" to enter into "lock" mode. (Closed padlock image appears). This feature allows you to keep the operating mode and to protect the current configurations, even though if by mistake any other button has been pressed. To deactivate the lock hold down "M" until you see an open padlock on the screen.

  • Page 42: Specifications

    Specifications Display: 1.8” TFT display 65K real color Resolution: 160 x 128 Pixels Internal memory: 8GB Flash Micro SD: Supports up to 32GB Audio format: MP3, WMA, FLAC MP3 bitrate: 8Kbps-320Kbps Data rate: Reading: 4mbps Writing: 1mbps Recording format: Video Format: AVI (Use the converter tool) Picture format: JPEG, BMP...
  • Page 43 Power supply: 3.7V/ 300mAH Polymer-ion lithium battery Working time: Video aprox. 5 hours Audio: aprox: 20 hours Operating temperature: 5 ℃ to 40 ℃ (Under power saving mode) WIN SE, ME, 2K, XP, VISTA, WIN7,8,10, IOS Weight: 28,5g Dimension: 63 x 39 x 11mm. (H/L/D)

  • Page 44: Declaration Of Conformity

    Tel.: 902 430 967 Fax: 91 8864285 NIF: B83254763 Country of Manufacture: China Description: MP3/MP4 Player Sytech® SY-791 complies with the following directives: CE Standard: Directive 2004/108/EC ROHS Standard: Directive 2011/65/UE on Restriction of Hazardous Substances Signed: Ajeet Nebhwani Utamchandani...
