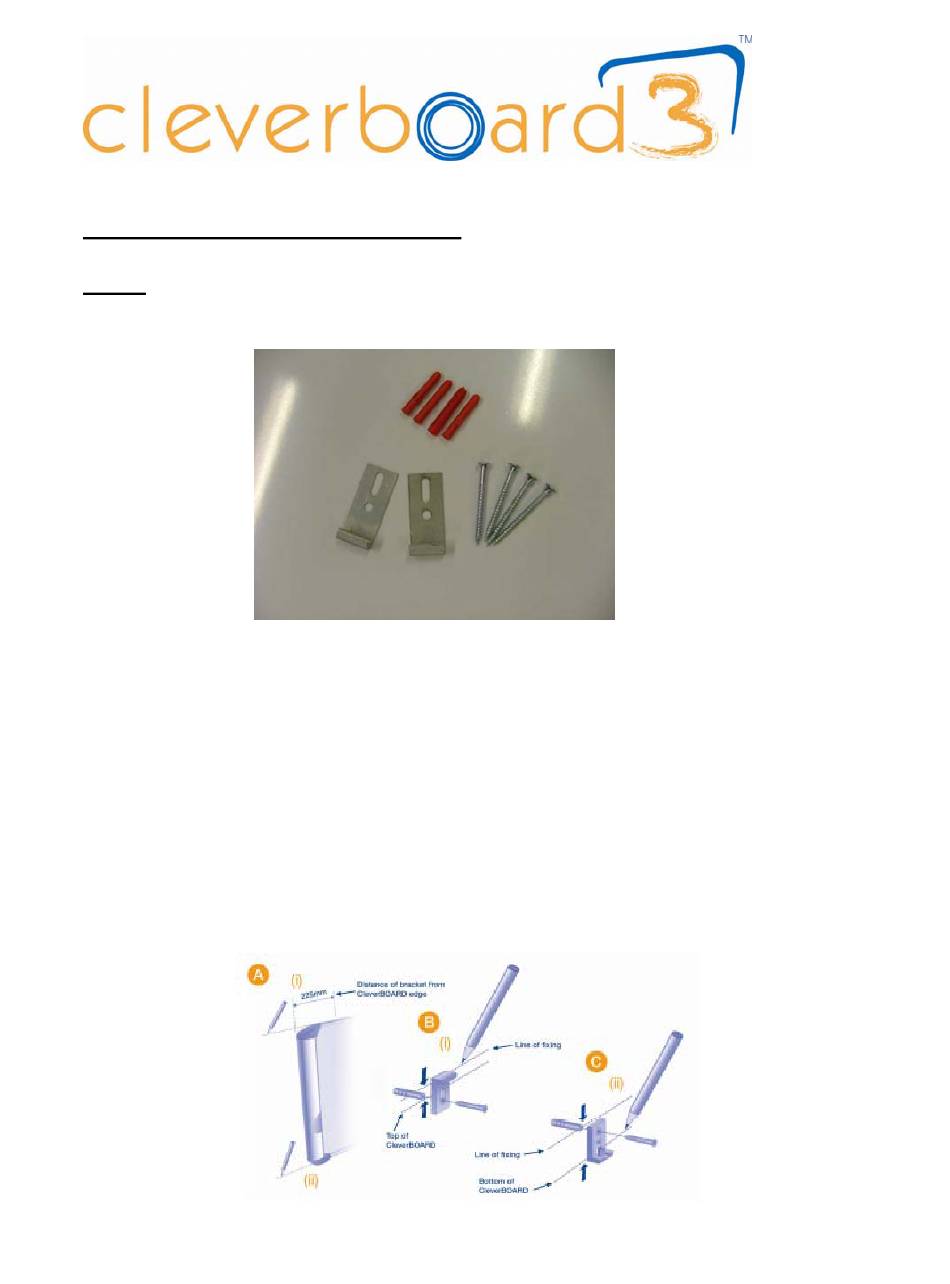

INSTALLATION INSTRUCTIONS
Note : The screws and rawl plugs supplied are to be used for mounting the unit
to brick / concrete walls only.
• Pencil mark the top and bottom of the Cleverboard as desired on wall, Fig
A.
• Fix brackets as shown in Figs B and C.
• Lift Cleverboard onto lower brackets, Fig D
• Push the top of the board towards the wall until it is vertical as in Fig D.
• Then push down the top brackets until they "click" onto the top of the
board, Fig E
• The Cleverboard is now securely wall mounted
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Clevertouch Cleverboard 3
- Page 1 INSTALLATION INSTRUCTIONS Note : The screws and rawl plugs supplied are to be used for mounting the unit to brick / concrete walls only. • Pencil mark the top and bottom of the Cleverboard as desired on wall, Fig •...
- Page 2 DETERMINING THE OPTIMUM HEIGHT OF THE BOARD The Cleverboard needs to be positioned at a height that is comfortable for the user to operate at. The board needs to be reachable by the user in all corners. If there is to be just one user then ask him or her to reach up with their hand and take a note of the highest position that they can comfortably reach...this is the position of the top of the board.
