These instructions detail how to install a SmartRG SR505n DSL modem and router with Weave's
network. Please contact Weave Support at any point in time, if the instructions do not make
sense or you are not getting the same results as the pictures.
Please note, you may have received your modem but your internet will not work until Weave
Networks has correctly connected you to the network. Please make sure you have received an
email or a call from a Weave staff member saying your internet is now connected before
attempting the below.
Step 1

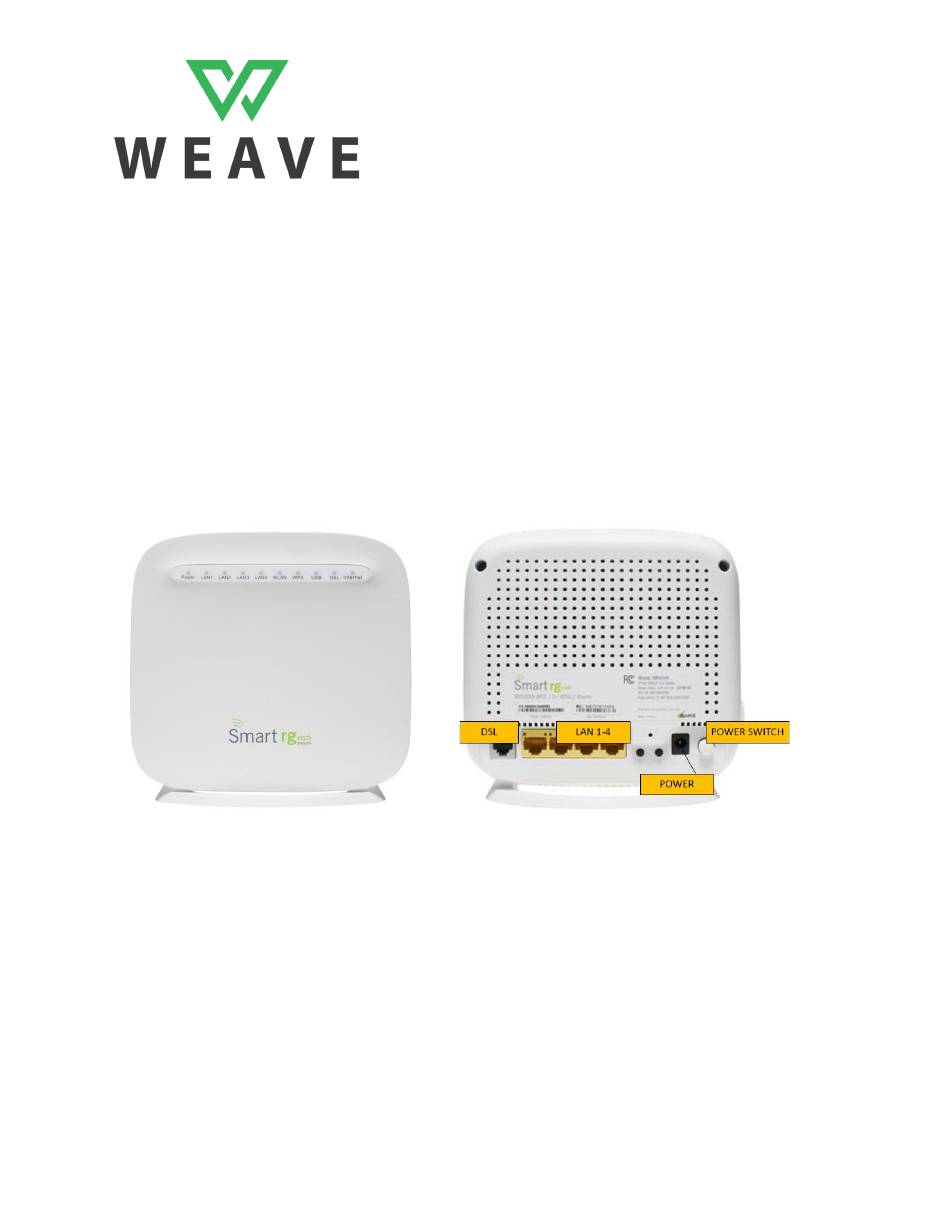

Unbox the SmartRG SR505n modem (or if you have your own modem). It should look like the
picture above.
www.weavenetworks.com
15
Weave VDSL Modem Setup Guide -
SmartRG SR505n
Revised: 2019-07-31
1-587-415-2900
support@weavenetworks.com
1
Page
/
Advertisement
Summary of Contents for Weave SmartRG SR505n
- Page 1 Weave staff member saying your internet is now connected before attempting the below. Step 1 Unbox the SmartRG SR505n modem (or if you have your own modem). It should look like the picture above. 1...
- Page 2 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 2 Take the phone cable, it should look like the cable pictured. Step 3 Plug one end of the phone cable into the wall socket. You will find these normally in your living room or bedrooms where a home phone can be connected.
- Page 3 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 5 Power on the modem. You can achieve this by connecting the power into the modem and then connect it to a wall power socket. Step 6 Make sure the power switch is on.
- Page 4 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 7 Wait up to 5 minutes, then the lights on the modem should now show the following: Power Solid Green LAN 1 - 4 Black (Not on) WLAN Black (Not on)
- Page 5 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 9 On the computer that is physically connected to the modem (from Step 8). Enter into the address bar at in your web browser. Click on M anage Gateway h ttp://192.168.1.1...
- Page 6 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 10 Click on the A dvanced Setup menu, then on the W AN Service sub-menu. Select the R emove checkbox on the p pp0.1 interface listed on W AN Service Setup...
- Page 7 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 13. On the P TM Configuration page, select the following: Latency : Select both ● Path0(fast) ● Path1(interleaved) ● ● Apply/Save Step 14. Back on the W AN page, click on ...
- Page 8 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 15. On the W AN Service Interface page, select p Configuration tm0/(4_1_1) from the drop-down menu and click N ext 8 www.weavenetworks.com 1-587-415-2900 support@weavenetworks.com Page...
- Page 9 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 16. On the W AN Service Configuration page, ensure the following: PPP over Ethernet (PPPoE) is the active WAN service type chosen, ● Ensure Service Description shows as p ppoe_4_1_1...
- Page 10 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 17. On the P PP Username and Password page, enter your DSL username (format xx000@weavenetworks.com) and your DSL password into the PPP Username and PPP Password fields respectively. Enter: w eavenetworks@frontier1.net ...
- Page 11 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 18. Ensure E nable Firewall , E nable NAT are checked. Ensure E nable is not checked. N ote on SIP SIP: Although we've found that most most ●...
- Page 12 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 19. Click on Next twice on the R outing - Default and D NS Server Gateway Configuration pages to skip to the W AN Setup - Summary...
- Page 13 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 20. Click and on W ireless menu link. From the Wireless - - Basic Page... Set the S SID to your preferred WiFi name to broadcast. ●...
- Page 14 Weave VDSL Modem Setup Guide - SmartRG SR505n Revised: 2019-07-31 Step 21. Click on the S ecurity link, under the W ireless Menu option. Set the N etwork Authentication to W PA2-PSK ● Set the W PA passphrase...
