LightSense
Specifications
PSWO Input Voltage . . . . . . . . . . . . .9-12VDC, 50mA minimum
AC-DC adapter (provided)
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120VAC, 60Hz
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9VDC, 50mA

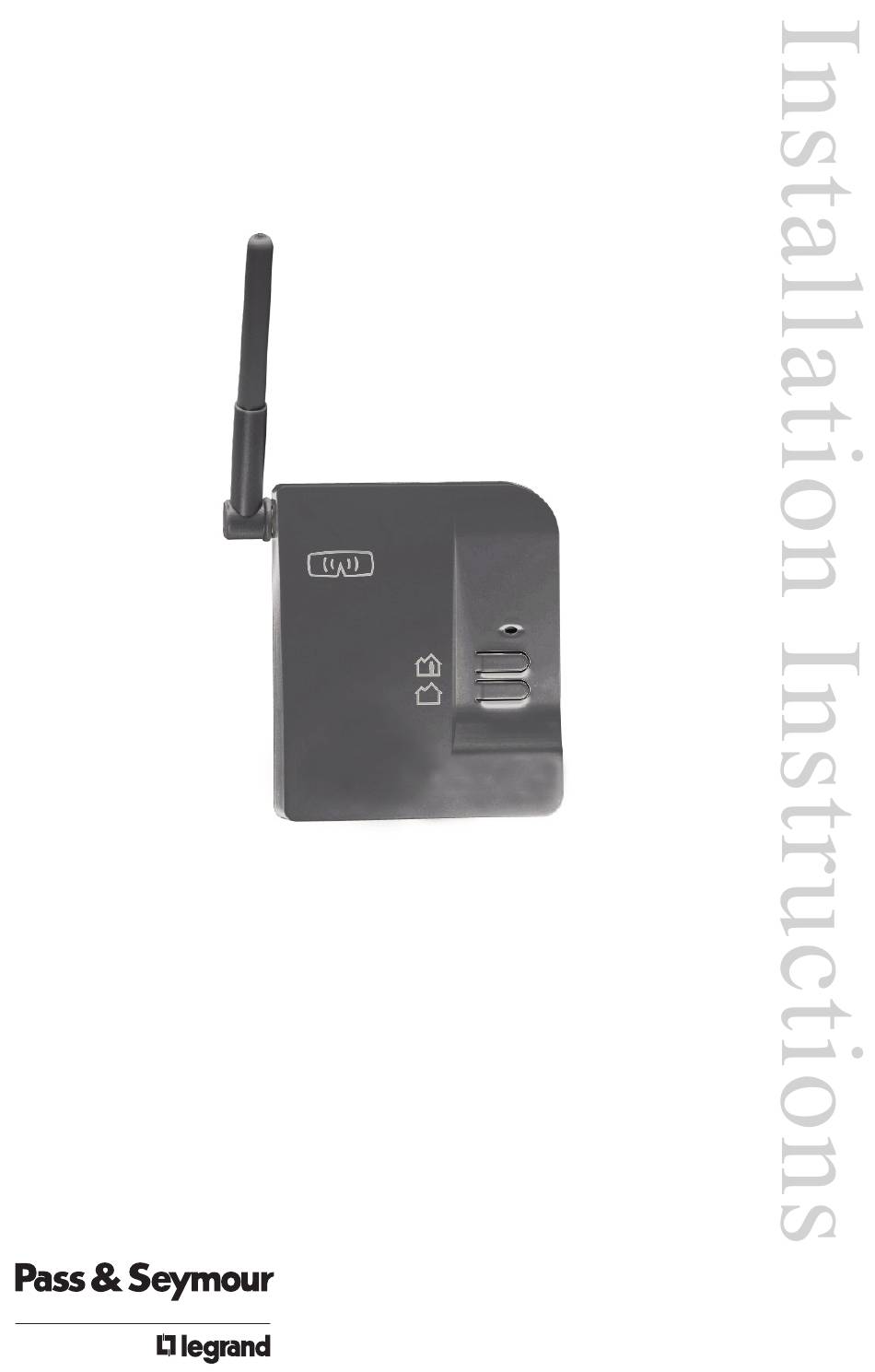

PSWO
Wireless Repeater
™
Syracuse, NY 13221-4822
www.passandseymour.com
Patents pending
800.223.4185
Advertisement
Table of Contents
Related Manuals for LEGRAND Pass & Seymour PSWO LightSense
Summary of Contents for LEGRAND Pass & Seymour PSWO LightSense
- Page 1 PSWO LightSense Wireless Repeater ™ Specifications PSWO Input Voltage ... . .9-12VDC, 50mA minimum AC-DC adapter (provided) Input ....... .120VAC, 60Hz Output .
-
Page 2: Unit Description
LightSense wireless control system, including setting up scenes and presets. Instructions for installation and use are included with the relevant LightSense wireless devices. Application support information, the Specification Guide and the LightSense Installation Guide are available at the Pass & Seymour/Legrand website, www.passandseymour.com. Call 800.223.4185 for Technical Support... -
Page 3: Installation
INSTALLATION 1. Locate the repeater in a central location, taking into consideration both the horizontal and vertical space in the home. In a 2-story plus basement home, a good position may be on the first floor atop a kitchen cabinet. Do not locate the PSWO Wireless Repeater close to any device that may cause interference or behind large metal objects that can block radio reception. - Page 4 SET HOUSE ID All LightSense™ wireless devices installed in the same home must acquire the same unique House ID before use. This process is known as house binding. Each LightSense wireless device is bound to all other LightSense wireless devices in the house. IMPORTANT: Because the repeater increases the range of the LightSense wireless system, it is very important to make sure the repeater is installed and powered before setting the House ID using any other LightSense wireless...
-
Page 5: Operation
OPERATION Wireless Range Boost Once the repeater is bound to the house, it automatically receives and retransmits all wireless LightSense™ network traffic in the house, effectively doubling the range of all devices sharing the same House ID. Occupancy Emulation The repeater stores a 7-day record of actual network traffic. It constantly keeps it up to date to account for seasonal variations in lighting use. -
Page 6: Advanced Operation
ADVANCED OPERATION Assigning Occupancy Emulation to a House Scene You can assign the repeater’s occupancy emulation function to a LightSense™ House Scene button. This is very convenient, especially if the repeater is installed in a hard to reach area. 1. From a wireless house scene controller (PSWCH or PSWRH), press until its LED begins flashing (about 2 seconds). -
Page 7: Troubleshooting
CLEANING Clean using a cloth dampened only with water and a little mild detergent. Use of solvents or hydrocarbon-based cleaners may cause permanent damage. TROUBLESHOOTING During Set House ID, the LED is not flashing on some Wireless LightSense™ devices. • If LED is solid green before initiating House ID binding: The device already has another House ID. -
Page 8: Fcc Notice
• Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by Pass & Seymour/Legrand could void your authority to operate this equipment. LIMITED FIVE YEAR WARRANTY Pass & Seymour will remedy any defect in workmanship or material in Pass & Seymour products which may develop under proper and normal use within five years from date of purchase by a consumer: (1) by repair or replacement, or, at Pass &...
