Magnum Industrial MI-99265 Assembly And Installation Instructions

Mounting hardware

required for installation
(not included)
• 4 hex head bolts
• 4 flat washers
• 4 hex nuts

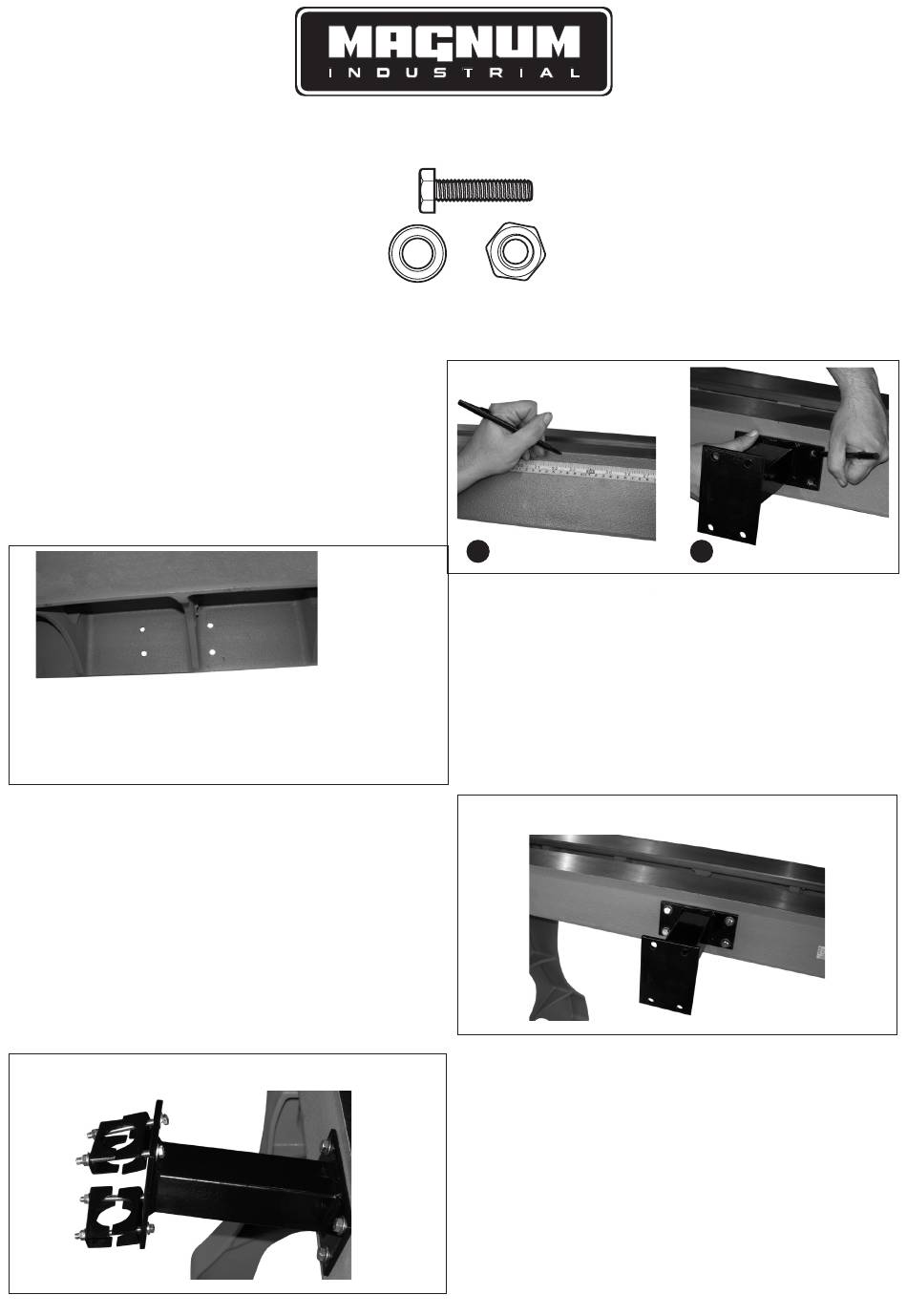

ASSEMBLY AND INSTALLATION INSTRUCTIONS
1. Mark the center of the lathe bed (A) and place
the main mounting bracket roughly centered
against the bed to mark required hole placement
(B).
Note: Before drilling through the lathe bed, verify
that non of the holes line-up with the inner ribbing
(re-inforcement) in the bed casting. If so, move hole
placement slightly left or right to avoid drilling into
the ribs.
3. Secure the mounting bracket to the lathe bed
using your hardware (not supplied).
MI-99265 LATHE GUARD
4x
4x

STEP 2

STEP 4

Select bolts that will
fit 9 mm (3/8")
mounting holes.
4x

STEP 1

A.
2. Drill 4 pilot holes using a small diameter bit.
Change to a larger bit to match the size of the
bolts used, and drill out the 4 mounting holes in
the lathe bed.

STEP 3

4. Using the 4 long bolts with matching nuts and 2
washers per bolt, install the 2 column clamps
to the mounting bracket as shown.
B
