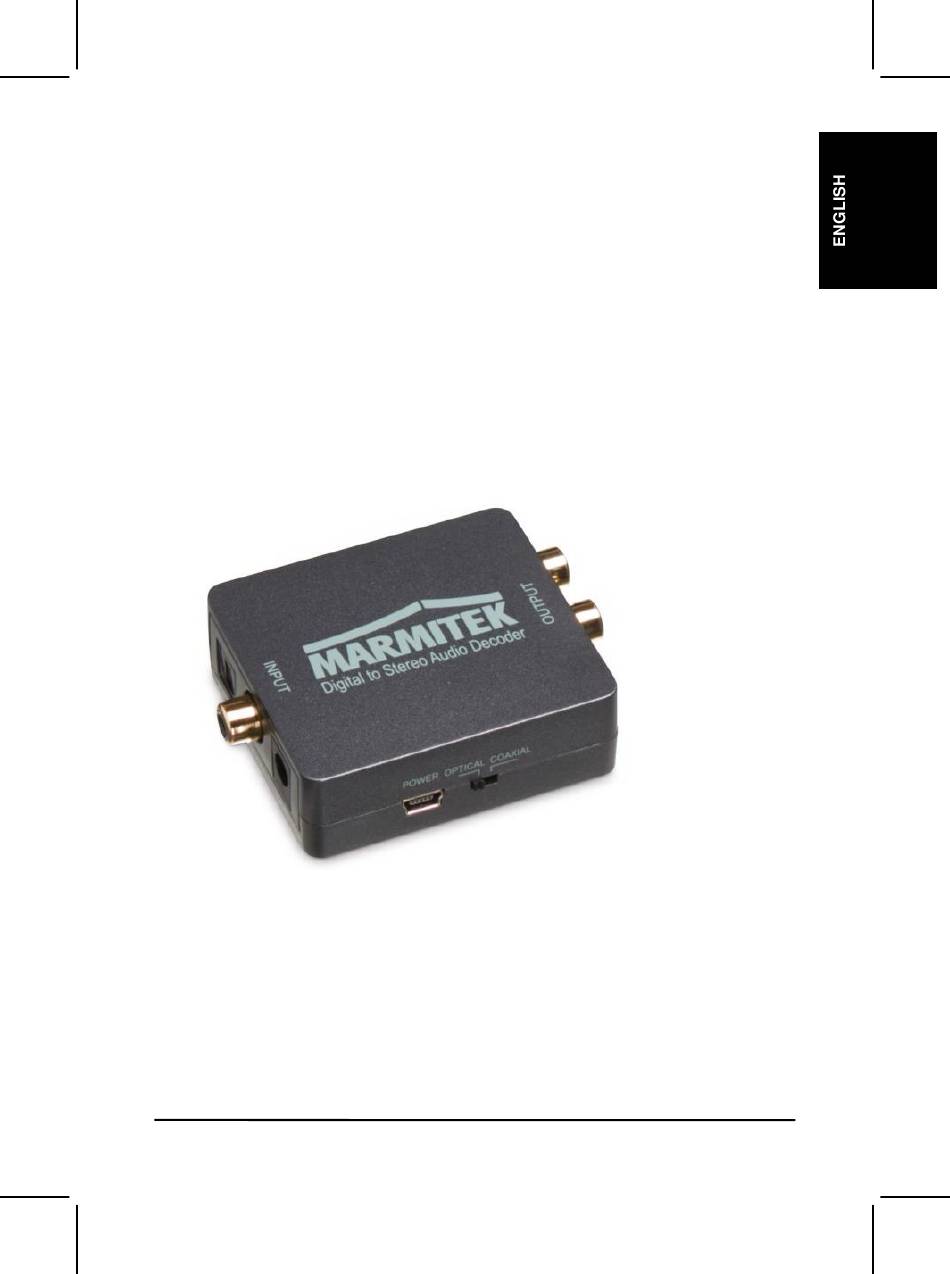

- Page 1 CONNECT DA51 Connect DA51...
- Page 2 © MARMITEK...
-
Page 3: Table Of Contents
Connecting to your audio amplifier ......7 Power Supply ............7 Connection diagram ............8 Product details ..............8 Technical specifications ..........8 Frequently asked questions (FAQs) ........9 Notification ................. 9 Declaration of conformity ........... 9 Recycling ..............10 Copyrights ............... 10 Connect DA51... -
Page 4: Safety Instructions
Improper use, self-installed modifications or repairs will void any and all warranties. Marmitek does not accept any product responsibility for incorrect use of the product or use other than for which the product is intended. Marmitek does not accept liability for any consequential damage other than the legal product responsibility. -
Page 5: Your Product

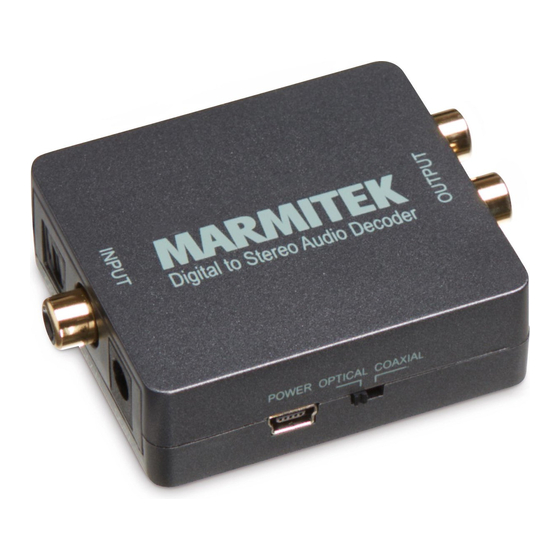

Your product Introduction Congratulations on your purchase of the Marmitek Connect DA51. This digital TV audio to stereo audio decoder enables you to send digital audio from your TV to your analogue audio amplifier. Ideal if your analogue audio amplifier has no digital audio inputs. The Marmitek Connect DA51 is very easy to install. -
Page 6: Product Overview
Product overview Toslink optical connector Coax connector Power connector USB power connector Optical/Coaxial input select switch Headset connector LED power indicator Stereo line out © MARMITEK... -
Page 7: Getting Started
Connecting to the digital source (e.g. TV) Connect the Toslink/optical cable or coaxial cable of your TV (or other source) to the Connect DA51's 'optical' (1) or 'coaxial' (2) input. Set the input select switch (5) to 'optical' or 'coaxial', depending on the input selected above. -
Page 8: Connection Diagram
2-channel LPCM, 32KHz, 44.1KHz, 48KHz, 96KHz sample frequencies Dolby Digital 5.1 DTS-ES6.1 ≥120db Signal to noise ratio: Channel Separation Audio R/L: ≥85db Frequency response: (20Hz ~ 20KHz) +/- 0.5db Dimensions (H x W x D): 20x55x72 mm Weight: 40 grams © MARMITEK... -
Page 9: Frequently Asked Questions (Faqs)
Please go to www.marmitek.com Notification Declaration of conformity Hereby, Marmitek BV, declares that this Connect DA51 is in compliance with the essential requirements and other relevant provisions of the following Directives: Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility. -
Page 10: Recycling
Copyrights Marmitek is a trademark of Pattitude B.V. Connect DA51™ is a trademark of Marmitek B.V. All rights reserved. Every effort has been made to ensure that the information in this manual is accurate.
