Uniq Display 15½

User manual

version 1.0.0

Table of Contents

Need help?

Do you have a question about the Uniq Display 15" and is the answer not in the manual?

Questions and answers

Summary of Contents for ELCOM Uniq Display 15"

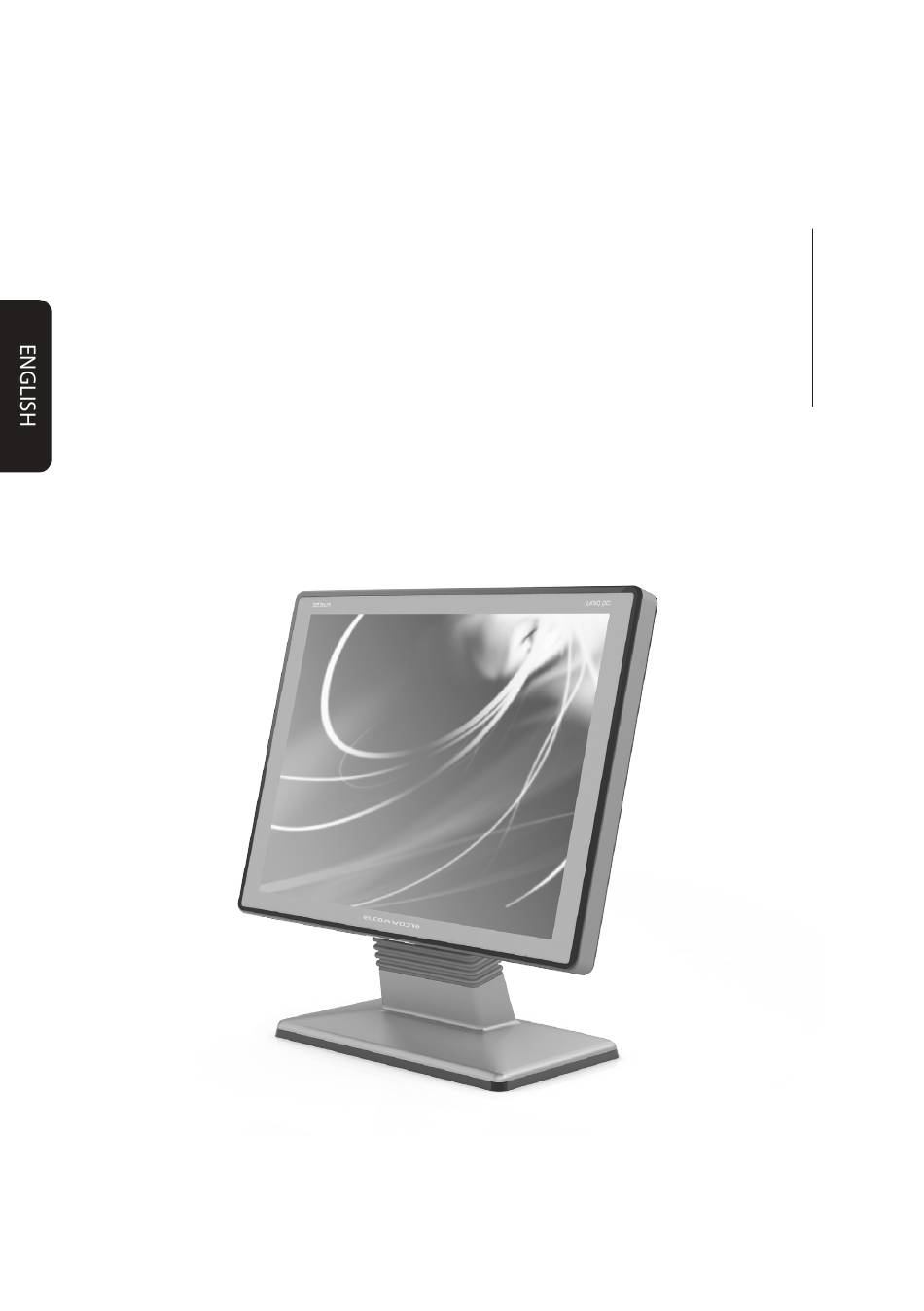

Page 1 Uniq Display 15½ User manual version 1.0.0...
Page 2: Table Of Contents
Uniq Monitor contentS introDuction ........................18 important notice ............................18 ProDuct DeScriPtion ......................19 Parts of the display, basic features ......................19 uSing the Device ........................22 remote control ............................22 Turning On and Off ......................22 Menu ..........................23 Working with menus ......................24 Switching the display brightness ....................24 connecting to a computer and configuration ..................24 Installing the touch panel drivers ....................25 Windows ........................25...
Page 3: Introduction
Introduction introduction Thank you for choosing the Uniq Display. Please read this user manual before you begin using the equipment in order to become familiar with its features and functions. Also keep this user manual for future use. It will help you solve problems that may arise.
Page 4: Product Description
Product description Product deScriPtion PartS oF the DiSPlay, baSic FeatureS The Uniq Display is a strudy computer display. The high-quality production and wide possibilities for use make the Uniq Display a unique solution for your business. The Uniq Display is designated mainly for commercial operations, private and public institutions, or for the medical sector as a surrogate imaging and optical device in environments with high demands on air quality and environment sterility.
Page 5 Product description Figure 1.2. basic features and controls – tube holder variant flexible leg 30° remote control sensor TUBE holder table 1.1. Parameters Type of display TFT LCD (TN) Diagonal width 15½ Screen resolution 1024 x 768 Aspect ratio Touchscreen display resistive / capacitive / capacitive vandalproof (optional) Touch panel operating system Windows XP/Vista/7, Mac OS X, Linux...
Page 6 Product description Figure 1.3. connectors - table and wall mount variant cable holder power connector USB of the touch panel Figure 1.4. Description of connectors for tube holder variant power connector of the touch panel...
Page 7: Using The Device
Using the device uSing the device remote control Note: Remote control should be pointed so that its front end (IR LED) aimed towards the remote control sensor on Uniq Display. The controls are sufficiently sensitive to the captured commands reflected from the walls and surrounding objects.
Page 8: Menu
Using the device menu Uniq Display has built-in menu to adjust picture parameters, the source of video signal and the language of the menu. If a source of the video signal is not connected to the Uniq Display, the menu can not be displayed. Figure 2.2.
Page 9: Working With Menus
In order to control the computer using Uniq Display’s touch panel, after connecting the USB cable it is necessary to install and calibrate the drivers supplied on the CD. Drivers can also be downloaded from the website www.elcom.eu. Driver installation and calibration is described in the following chapters.
Page 10: Installing The Touch Panel Drivers
In the following steps choose where to install the driver files and wait for the completion of the installation. linux and other supported operating systems From the website www.elcom.eu download and, as necessary, compile and install the drivers from source following instructions which are attached to them.
Page 11: 4-Point Calibration
Using the device 4-Point calibration During calibration, the symbol of a cross with a circle will gradually appear in each corner of the display. For proper calibration, it is necessary to hold down the center of the symbol until it turns blue. In this way you ensure the setting of the exact value of position for the pressing point on the display.
Page 12: Setting Up The Touch Panel
Using the device Setting up the touch panel In the Touchkit Configure Utility window on the “Setting” tab you can change the touch settings described below. Figure 2.6. tab for other settings of the touch screen display table 2.2. the meaning of the individual functions on the tab for setting the touch screen panel Beep sound feedback of the panel touching Beep On Touch...
Page 13: Mounting Options
Note: For placing a Uniq Display on a wall it is possible to achieve a larger angle of the display tilt by rotating its leg by 180°. Only an ELCOM service center is authorized to pefrorm this operation. There are other, less common, solutions for mounting the panel, such as mounting on a tube holder or using a standardized VESA mount.
Page 14: Placement On A Vertical Surface (Wall) For Standard Stand
Mounting options Placement on a vertical surface (wall) for standard stand You’ll find in the packaging of the Uniq Display a number of 4 × 16 mm self-tapping screws. For anchoring the panel, it’s enough to place two screws horizontally at a distance of 176 mm from each other (you can use the supplied drilling stencil to properly place the holes for screws).
Page 15 Mounting options You can alter the position of the rotated base by loosening the four screws from the bottom of the base and by setting the required angle of rotation. For assuring the position, it is necessary to fasten the screws back and thus anchor the base to the table.
Page 16 This manual was not subject to any language revision. This manual or any part of it may not be copied, reproduced or otherwise distributed without the consent of the company ELCOM, spoločnosť s ručením obmedzeným, Prešov. All rights reserved. © 2012, ELCOM, spoločnosť s ručením obmedzeným, Prešov...
