Summary of Contents for Golden Motor BAC-601 LCD

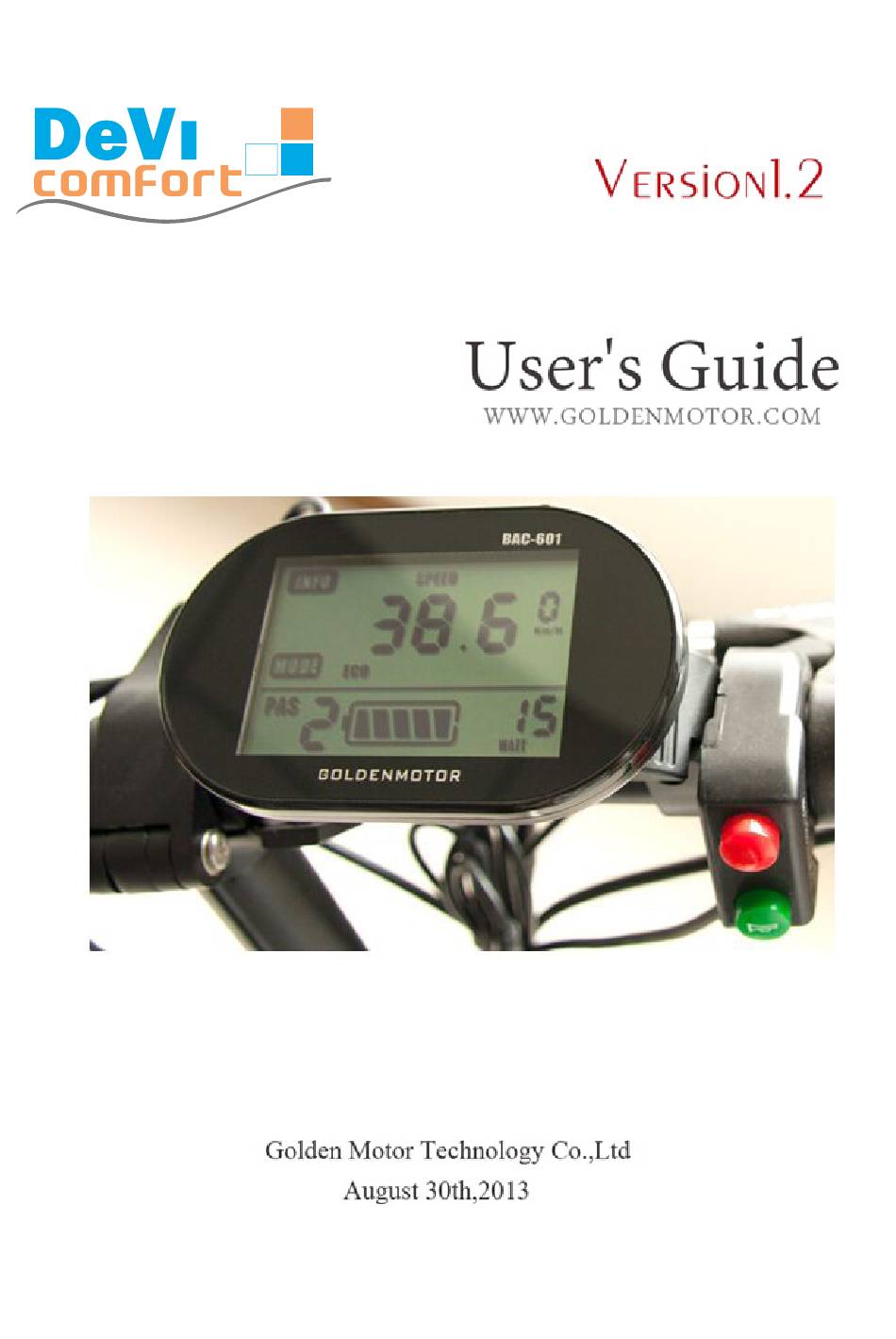

- Page 1 BAC-601 LCD (MP4/SPM4)
- Page 2 In order to better operate your electric vehicle, please read the user’s guide carefully before using BAC-601 LCD(MP4/SMP4).We will lead you how to use BAC-601LCD in most simple language aging from hardware installation to settings of LCD. At the same time we...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 REAL PICTURE AND SIZE 2 ATTENTION 3 INSTALLATION 4 FUNCTION OVERVIEW AND BUTTON DEFINITION 4.1 LCD Function 4.2 LCD Display Interface 4.3 Button Definition 5 OPERATION INSTRUCTIONS 5.1 On/Off 5.2 Interface Display Instructions 5.3 PAS Levers 5.4 PAS Mode 5.5 Battery Guage 5.6 Outputting Power Display... -
Page 4: Real Picture And Size
1 Real Picture and Size... -
Page 5: Attention
BAC-601LCD (MP4/SP4) User’s Guide 2 Attention Avoid the bump. Only waterproof film is for LCD and do not tear it,otherwise it will affect the LDC waterproof performance. When LCD do not work ,please go to vehicle repairing shope or dealer shop for help and repair it. 3 Installation Fix the LCD to the vehicle handlebar and adjust it for appropriate perspective.Only when the vehicle is power off,connect the LCD to the MP4 controller ,then... -
Page 6: Lcd Display Interface
BAC-601LCD (MP4/SP4) User’s Guide 4.2 LCD Display Interface Current Driving Time Max Speed Current Mileage Backlight Cumulative Mileage Average Speed Real-time Speed Unit Display PAS Levers Display Error Code Power Rates PAS Mode Battery Guage 4.3 Button Definition There are three buttons:UP,MODE,DOWN 5 Operation Instructions 5.1 On/Off On:Turn on the power then the LCD start to work... - Page 7 BAC-601LCD (MP4/SP4) User’s Guide TRIP TIME (current driving time h); ODO ( total cumulative mileage km). Current Average Speed km/h Real-Time Speed km/h Current Max Speed km/h Current Max Speed km/h Current mileage km Cumulative mileage Current Driving Time...
-
Page 8: Pas Levers
BAC-601LCD (MP4/SP4) User’s Guide 5.3 PAS Levers When LCD is on,short press"UP"or "DOWN" button switching the electric vehicle PAS levers and changing the vehicle's outputting power. There is 0- 5 levers for option: 0:No power 5:The highest lever When LCD is on ,PAS lever is at "0" by default. Here is the 0-5 levers for your reference: .. -
Page 9: Outputting Power Display
BAC-601LCD (MP4/SP4) User’s Guide 5.6 Outputting Power Display LCD will display the outputting power of electric vehicle,the unit is "W" .Display mode can be checked at the lower right corner of the display shown in following picture. 5.7 Backlight on Long press “UP+MODE”button,backlight on .Then again long press “UP+MODE”... -
Page 10: Unit Display
BAC-601LCD (MP4/SP4) User’s Guide 5.8 Unit Display Speed and mileage display under metric and imperial units shown in following pictures. Mileage under imperial Mil Mileage under metric km Speed under imperial Mil Speed under metric km/h 5.9 Error Code Display When the electric vehicle system fails,LCD will automatically display the error code.Error code definitions shown in the following figure. -
Page 11: Setting Up Instructions
BAC-601LCD (MP4/SP4) User’s Guide Only after the failure has been ruled out,LCD can exit the error display screen.The electric vehicle can not continue driving when the failure appear. 6 Setting Up Instructions 6.1 Preparations before LCD on Make sure all the plugs is well connected and turn on the electric vehicle battery power. -
Page 12: Save Settings Parameters
Q:I can not turn on the LCD,why ? A:Check whether the LCD plug connectors is well connected to the controller corresponding key. Q:How to handle when LCD display error code? A:Go to repairing shop for professional help. Golden Motor Technology Co.,Ltd www.goldenmotor.com sales@goldenmotor.com Mobile:86 519 81004118...
