- Page 1 CAM1095 Inspection Camera Kit 22mm Inspection Camera Kit - 22mm Please read these instructions completely before operating this system. OPERATOR’S MANUAL...
-
Page 2: Table Of Contents
Battery Specifications __________________________________________________ 12 Trouble Shooting Guide ________________________________________________ 12 No Picture AND No Lights _______________________________________________ 12 Picture BUT No Lights _________________________________________________ 12 Bad or Grainy Picture __________________________________________________ 12 Not Recording ________________________________________________________ 13 Camtek’s Limited Warranty _____________________________________________ 14 Notes ________________________________________________________________ 15... -
Page 3: Safety Symbols
CAM1095 Inspection Camera Kit 22mm SAFETY SYMBOLS the equipment in unexpected situations. In this operator’s manual and on the product, safety • Stay alert, watch what you are doing and use symbols and signal words are used to communicate common sense when operating equipment. Do important safety information. -
Page 4: Servicing And Repairs
CAM1095 Inspection Camera Kit 22mm • Use only accessories that are recommended by chemicals can cause serious burns, as well as the manufacturer for your equipment. Accesso- damage the cable. Neutralize or remove corro- ries that may be suitable for one piece of equip-... -
Page 5: Standard Equipment

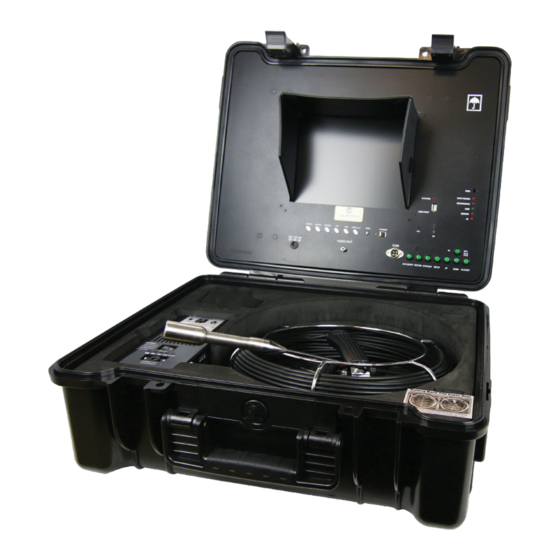

CAM1095 Inspection Camera Kit 22mm SYSTEM COMPONENTS Standard Equipment • Camera Reel Inspection Camera Kit 22mm includes: The Camera Head, the Cable Reel and Frame and the Monitor • Camera Head Control Unit. • Camera Skids • Remote control • Patch lead •... -
Page 6: Camera Head
CAM1095 Inspection Camera Kit 22mm Camera Head The camera head has adjustable LEDS and an ad- vanced-design, scratch-resistant sapphire Lens. This, coupled with the stainless-steel housing al- lows the camera to withstand repeated stresses and impacts in normal operating environments. - Page 7 CAM1095 Inspection Camera Kit 22mm • The user can also charge the battery while using the device in the following way: • plug the Charger to the wall AC socket and the other end to the jack on the Battery and connect...
-
Page 8: Performing A Pipe Inspection
• Do not force the pushrod or exert excessive force. This could damage the camera or push- Camtek Inspection System in Use rod. • When pulling the pushrod, keep clear of any WARNING... -
Page 9: Removing Camera Head From The Reel
Do not bend or The following accessories have been designed damage these connectors, use the black end to function with the Camtek Inspection Camera cap to cover when not in use or leave the cam- Kit 22mm. -
Page 10: Recording Time Limit
CAM1095 Inspection Camera Kit 22mm • Press record to start the recording, the Video Recording Format RECORDING Red LED light will come on. • The default video recording resolution is 640*480. One-hour recording will take up stor- • In recording, press the RECORDING button... -
Page 11: Fast Forward And Rewinding
CAM1095 Inspection Camera Kit 22mm • When you enter “play video” mode, the set will Video Software Installation (may be required display all the available video files on the screen. for older computers) • Generally, the recorded videos can be played •... -
Page 12: Battery Specifications
Disconnect main power and contact sources, such as a power station, etc. Check the the Camtek service department. cable for possible breaks or intermittent open circuits by flexing the cable. Remove the cam-... -
Page 13: Not Recording
• Check whether the inserted USB is formatted correctly. • Check that the USB Stick hasn’t been locked. Disconnect the main power source and contact Camtek service department. WARNING Please note: USB Drives might need to be for- matted on a computers prior to use, please fol-... -
Page 14: Camteks Limited Warranty
This warranty is made in place of all other warranties, express, statutory or implied, including those of merchantability and of fitness for purpose. CAMTEK shall not be responsible for any incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. -
Page 15: Notes
CAM1095 Inspection Camera Kit 22mm Notes... - Page 16 08 8122 0469 sales@camtek.net.au www.camtek.net.au...
