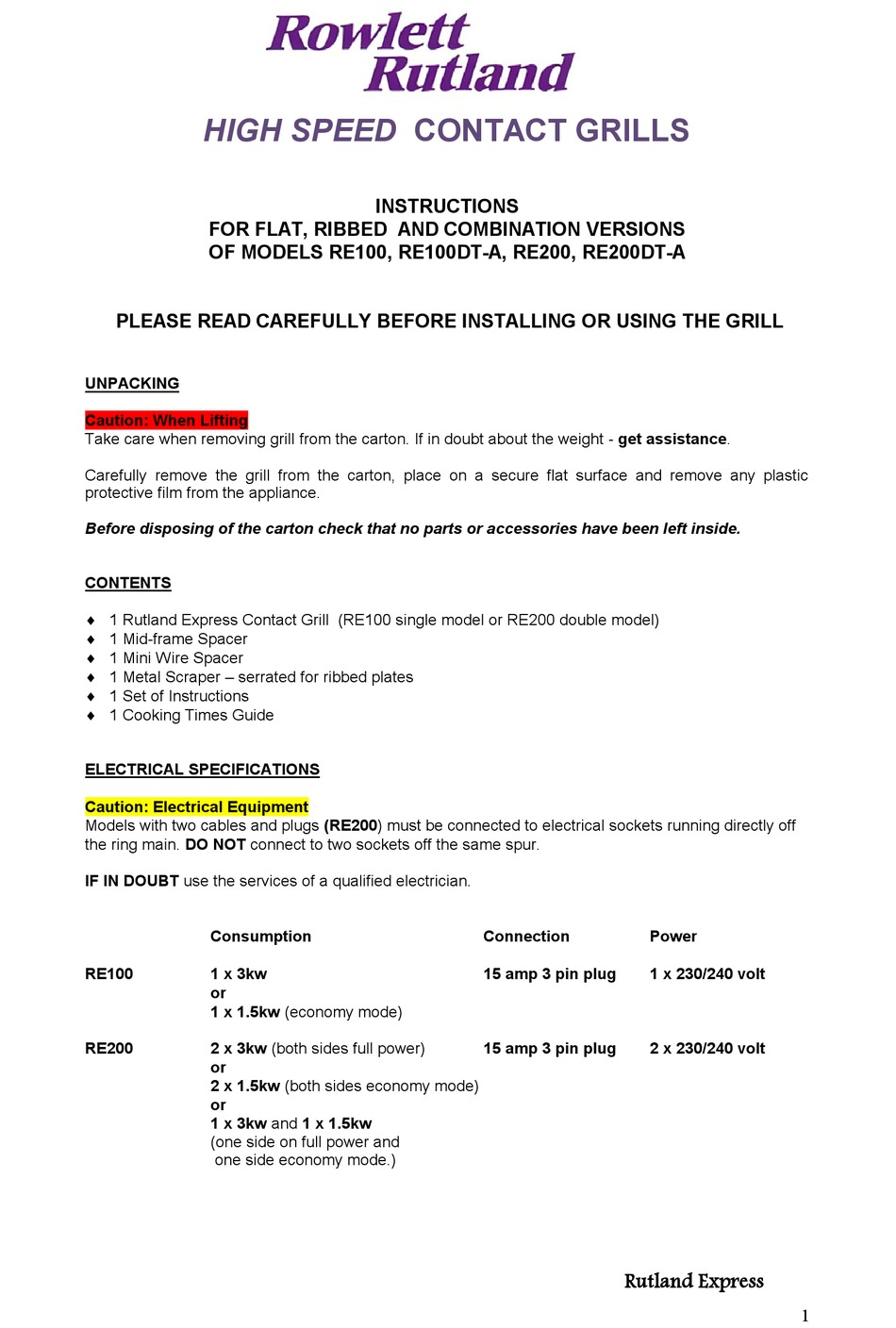

Rowlett Rutland RE100 Instructions Manual

High Speed CONTACT GRILLS
FOR FLAT, RIBBED AND COMBINATION VERSIONS
OF MODELS RE100, RE100DT-A, RE200, RE200DT-A
PLEASE READ CAREFULLY BEFORE INSTALLING OR USING THE GRILL

UNPACKING

Caution: When Lifting
Take care when removing grill from the carton. If in doubt about the weight - get assistance.
Carefully remove the grill from the carton, place on a secure flat surface and remove any plastic
protective film from the appliance.
Before disposing of the carton check that no parts or accessories have been left inside.
CONTENTS
 1 Rutland Express Contact Grill (RE100 single model or RE200 double model)
 1 Mid-frame Spacer
 1 Mini Wire Spacer
 1 Metal Scraper – serrated for ribbed plates
 1 Set of Instructions
 1 Cooking Times Guide

ELECTRICAL SPECIFICATIONS

Caution: Electrical Equipment
Models with two cables and plugs (RE200) must be connected to electrical sockets running directly off
the ring main. DO NOT connect to two sockets off the same spur.
IF IN DOUBT use the services of a qualified electrician.
Consumption
RE100 1 x 3kw
or
1 x 1.5kw (economy mode)
RE200 2 x 3kw (both sides full power)
or
2 x 1.5kw (both sides economy mode)
or
1 x 3kw and 1 x 1.5kw
(one side on full power and
one side economy mode.)
INSTRUCTIONS
Connection
15 amp 3 pin plug
15 amp 3 pin plug
Power
1 x 230/240 volt
2 x 230/240 volt
Rutland Express
1
