Summary of Contents for Motionwise UP-110

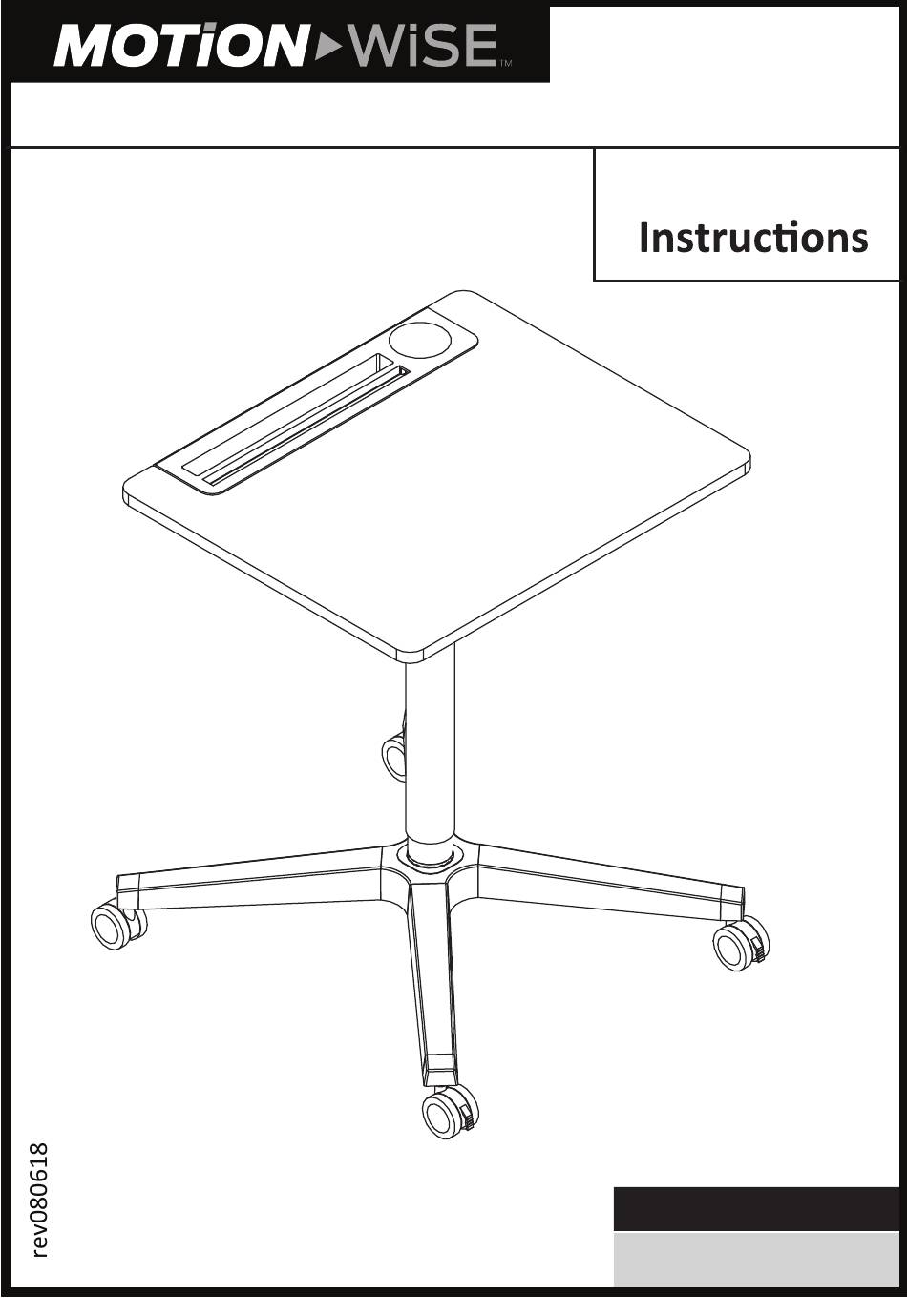

- Page 1 Model No. UP-110 Manual Height Adjustable Desk Assembly Customer Service: 1-888-770-8078...
- Page 2 TABLE OF CONTENTS ....03 Components............................04 Assembly............................05 Warranty............................09...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS WARNING! FAILURE TO COMPLY WITH OR OBSERVE ALL ASSEMBLY, SAFETY AND OPERATING INSTRUCTIONS AND WARNINGS REGARDING THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS BODILY INJURY. TO ASSURE SAFER OPERATION: Assure that everyone who uses this product is informed of the contents of this manual. - Page 4 COMPONENTS M6x15 M6x12 M8x15 M6x20 Page 4...
- Page 5 ASSEMBLY Insert desk support leg (2) into desktop base (3) making sure the desk adjustment lever is pulled through the support base Guide the desk adjustment lever cable onto the base pre-drilled path. Insert 4 (F) screws and fasten with Allen wrench supplied (K).
- Page 6 ASSEMBLY the back of the desktop support base. Place desktop (4) onto the support base. Use M6x15 fasteners (D) to secure table top to support base. Use M6x12 fasteners (E) to secure the adjustment lever onto D X8 Page 6...
- Page 7 ASSEMBLY Place desk upside down to place the foot. Insert ring (5) to the leg (2) then insert the foot to the leg slot C X3 Page 7...
- Page 8 ASSEMBLY washers then insert caster and use wrench to secure. Two casters have locking mechanisms (7) place A X4 L X4 Page 8...
-
Page 9: Warranty
WARRANTY WARRANTY been used and maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. In the event of this, the Page 9...
