Renssi RCM-25 Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

RCM-25 INSTRUCTIONS
Jobsite Health & Safety is a first priority matter here at
Renssi®. To extend this priority to our customers and end-
users, we have created this extensive Safety Manual for you to
rely on when working with our products.
SAFETY INFO
READ BEFORE USE OF TOOL
06/2019
KEEP FOR THE FUTURE USE!
WARNING!
These instructions are for your own, personal
safety. Always make sure that you have read
and understood these instructions carefully
before using Renssi® Tools.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCM-25 and is the answer not in the manual?

Questions and answers

Summary of Contents for Renssi RCM-25

  • Page 1 06/2019 KEEP FOR THE FUTURE USE! Jobsite Health & Safety is a first priority matter here at Renssi®. To extend this priority to our customers and end- WARNING! users, we have created this extensive Safety Manual for you to These instructions are for your own, personal rely on when working with our products.
  • Page 2 RCM-25...
  • Page 3 CONTROL UNIT RCM-25 CONTROLS Emergency STOP button Main voltage indicator Main switch Speed controller Direction switch Emergency STOP reset button...

  • Page 4: Table Of Contents

    2.2.0 Electrical Safety 2.3.0 Personal Safety 2.4.0 Power Tool and Use 3. INSTALLING THE RCM-25 4. OPERATING THE RCM-25 5. TURNING OFF THE RCM-25 6. MAINTENANCE 7. ATTACHMENTS 8. NOTES To watch practical demonstration videos, or to download a digital copy of this manual, please visit http://renssi.com/en/downloads...

  • Page 5: Introduction

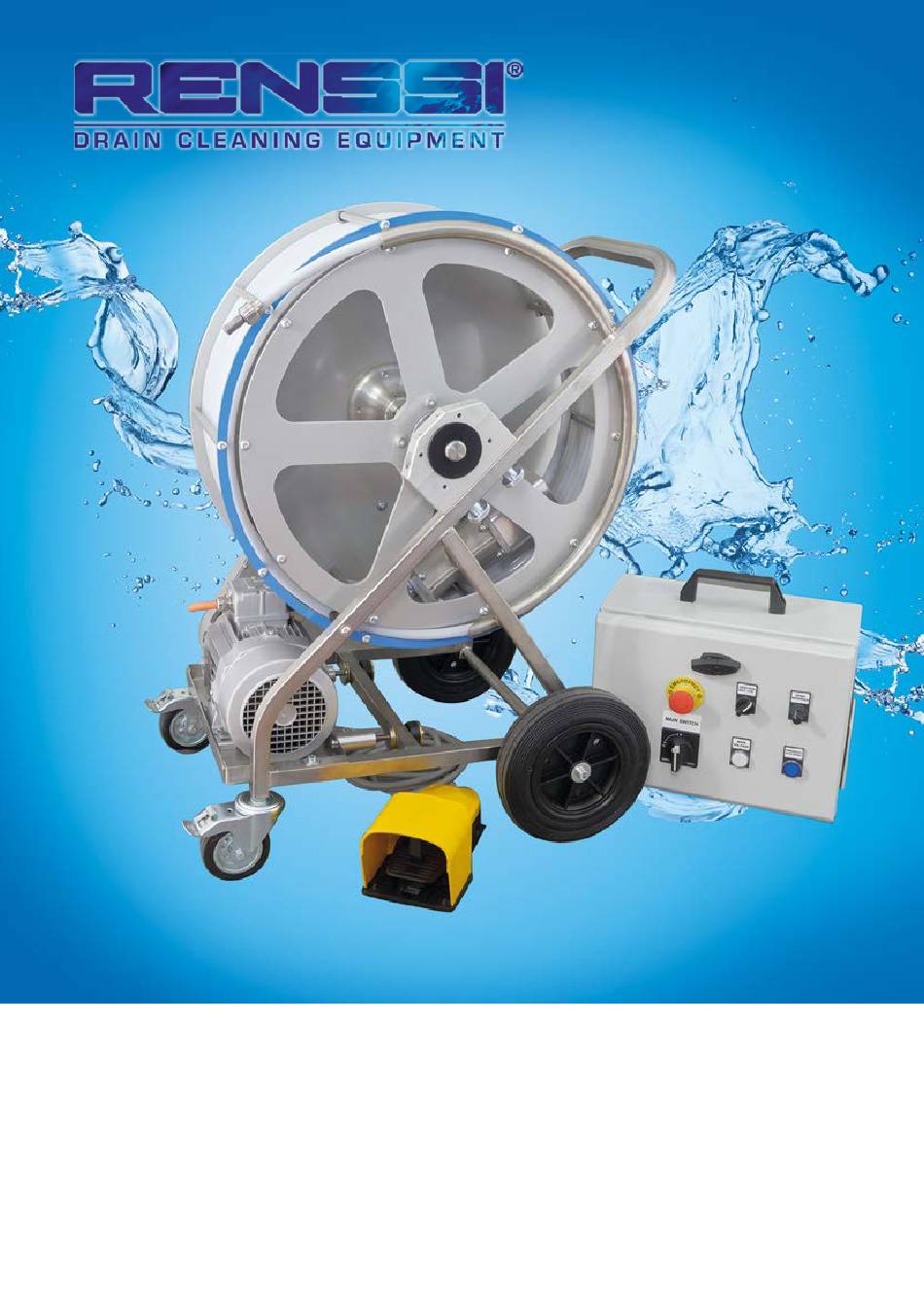

    RCM-25 MODEL INFORMATION RCM-25 unit is intended to be used in cleaning sewer pipes and reinstating after relining process. Before a successful relining process, the pipe needs to be well cleaned. RCM-25 unit is designed to rotate a cable with a cleaning or cutting tool at the end of the cable.

  • Page 6: Work Area Safety

    2.1.0 WORK AREA SAFETY 1. Keep work area clean and well lit. Cluttered or dark areas invite accidents. 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. 3.

  • Page 7: Personal Safety

    2.3.0 PERSONAL SAFETY 1. Stay alert, be careful and use the power tool with caution. Do not use the power tool when you are tired or under the influence of alcohol or drugs. Losing concentration for a moment can cause serious personal injury. 2.

  • Page 8: Power Tool And Use

    2.4.0 POWER TOOL AND USE 1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. 2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

  • Page 9: Installing The Rcm-25

    1. Connect the control unit to the motor with the orange 6 pin cable. 2. Connect the foot pedal to the control unit. 3. Connect the power cord to the control unit. 4. Make sure that the power cord plug matches the power outlet. 5. Plug the RCM-25 unit to the power outlet.

  • Page 10: Operating The Rcm-25

    WARNING! Improper use of the machine can cause serious damage. 1. Use the Renssi® equipment always on a solid surface to prevent equipment from falling. 2. Press the Emergency STOP-button. 3. Turn the Main switch to power ON the unit.

  • Page 11: Turning Off The Rcm-25

    5. TURNING OFF THE RCM-25 1. Press the Emergency STOP-button. ( Blue light will turn off ) 2. Turn the Main switch to power OFF the unit. 3. Unplug the RCM-25 unit from the power outlet. 4. Disconnect all the cables.

  • Page 12: Maintenance

    6. MAINTENANCE BEFORE ANY WORK ON THE MACHINE ITSELF, PULL THE MAINS PLUG. Inspect the machine regularly for any loose or damaged components. Inspect the cable and it’s cover for any damages. Replace when required. (RCM-3025) For safe and proper working, always keep the machine and ventilation slots clean. Ensure that all the bolts are tight and that no bolts are missing.

  • Page 13: Attachments

    7. ATTACHMENTS SAFETY REGULATIONS FOR ELECTRICAL EQUIPMENTS IN LOW-VOLTAGE POWER INSTALLATIONS 1. General endangerings 5. Electric connection These safety regulations are valid in connection with the operating and The connection is to be realized only by maintenance instructions of the product and they are to be observed qualified skilled persons and in released strictly.

  • Page 14: Notes

    8. NOTES...
  • Page 16 Renssi Finland Oy Jousitie 6 20760 Kaarina FINLAND info@renssi.fi www.renssi.com/en WE ARE ON FACEBOOK! CHECK OUT OUR PROFILE: https://www.facebook.com/Renssi-Finland-Oy...
