Anglerfish Creative Lighting TRIGGER V3.0 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

U
G
SER
UIDE
A
T
V3.0
NGLERFISH
RIGGER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIGGER V3.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Anglerfish Creative Lighting TRIGGER V3.0

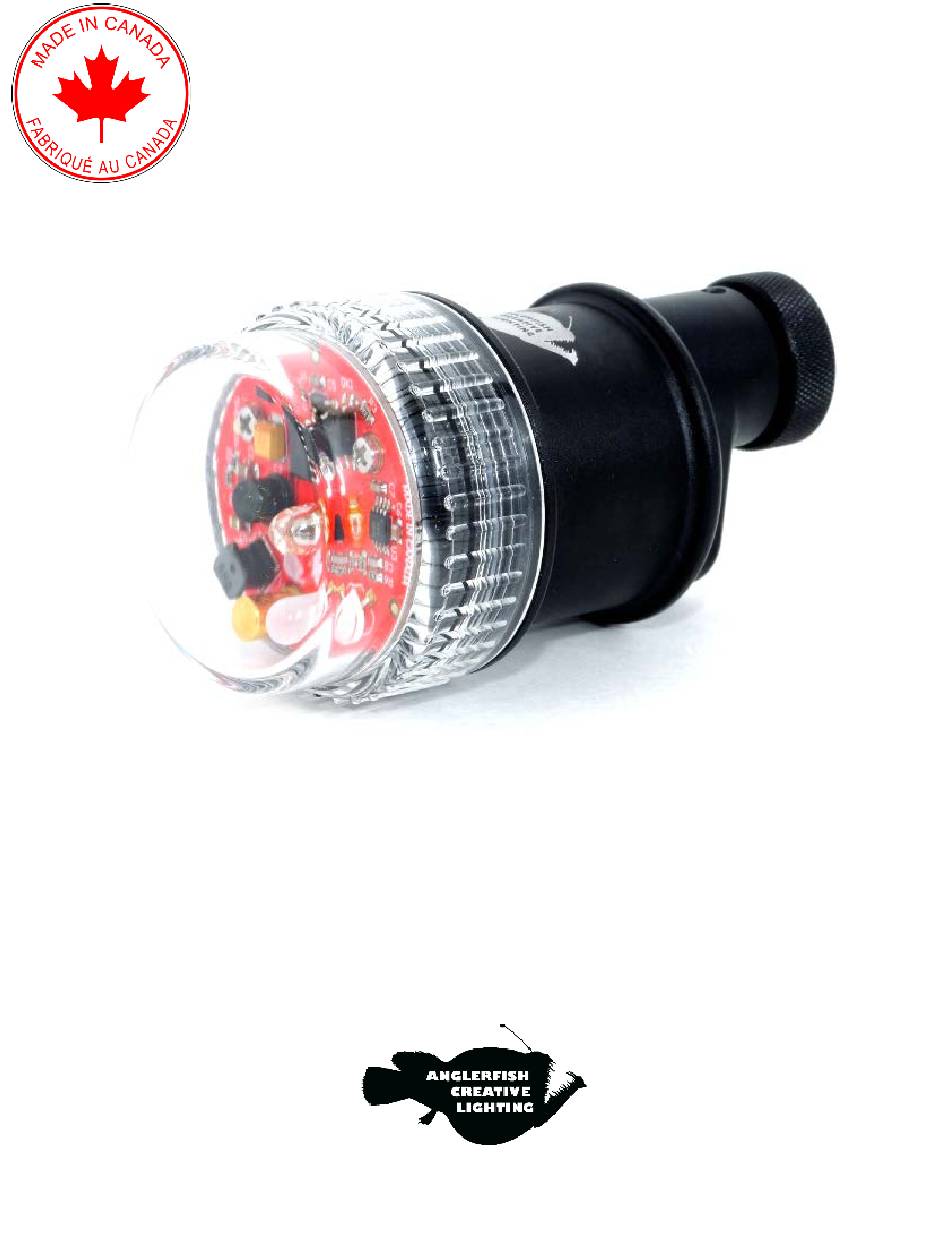

  • Page 1 UIDE V3.0 NGLERFISH RIGGER...
  • Page 3 Revision Sheet EVISION UMBER ESCRIPTION 2016 RAFT 2017 SSUED FOR PRINT 2017 V2.0 PDATED FOR REV2 JAN 2018 V3.0 PDATED FOR p.ii Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...

  • Page 4: Table Of Contents

    Table of Contents TABLE OF CONTENTS............I QUICK START ..............1 FEATURES ................2 OPTICAL SYNC CABLE ............ 2 ELECTRONIC SYNC CABLE ........... 3 TURNING ON ............... 4 TURNING OFF ..............6 LOW BATTERY INDICATOR .......... 6 CARE & MAINTENANCE ..........6 REPLACING BATTERY ............

  • Page 5: Quick Start

    Quick Start Make sure you have all the items listed below: 1. Anglerfish Trigger V3.0 2. Nikonos bulkhead cap 3. Opera�on manual, user guide 4. Clear acrylic dome cover 5. CR2 Batery (included and installed) 6. Op�cal or electrical sync cable (not included*) *You will need an op�cal sync cable or an electronic flash...

  • Page 6: Features

    Features A. Menu LED (Red, Blue, Purple) B. Flash sensors C. Nikonos bulkhead c/w cap D. Sea & Sea type op�cal bulkhead Velcro �e groove Cover Optical Sync Cable The Anglerfish Trigger can trigger a remote strobe via an op�cal bulkhead. The op�cal bulkhead is located on the back of the trigger.

  • Page 7: Electronic Sync Cable

    virtually any strobe including ones without electronic sync cable connec�vity. Be sure to use high quality mul�-core 613 fiber op�c cable with Sea & Sea plug. Cheaper, low quality single strand cables will result in high atenua�on of light and reduc�on in the trigger’s performance.

  • Page 8: Turning On

    with a Nikonos 5 pin connector. Prior to each use, make sure the o-rings are free of any sand or debris and that they are lubricated with the manufacturer’s recommended silicon Turning On lubricant. The Anglerfish Trigger is equipped with an accelera�on switch that is used to turn the unit on or off.
  • Page 9 Once a large enough impact has occurred, the menu LED will purple then light up momentarily. Shortly a�er, the LED will blue blink twice in to indicate subsequent impacts are required to fully turn on the unit. By impac�ng the trigger twice more, the trigger turns on.

  • Page 10: Turning Off

    Turning Off To turn off the trigger simply follow the same procedure as Low Battery Indicator required for turning on the unit. If the trigger’s batery power is low, the trigger’s menu LED will blink blue for five cycles and the trigger will enter the sleep mode.

  • Page 11: Troubleshooting

    out the batery cradle. Make sure the batery is placed in a correct orienta�on. The batery cradle has a notch in the botom and will only fit in a correct orienta�on inside the housing. Batery Housing Notch Only use CR2 batery. Any other batery may damage the Troubleshooting trigger circuit.
  • Page 12 Menu LED Blinking Red and Blue: blue If the menu LED blinks upon start up or during opera�on this means that the batery voltage is low and that batery needs to be replaced. Op�cal Trigger not Working: If the op�cal trigger does not trigger the remote strobe, remove the fiber op�c cable from the unit and inspect the small high power LED inside the op�cal bulkhead.
  • Page 13 Single core cables are prone to failure and will not func�on properly with the Anglerfish Trigger. In some situa�ons, salt and dart accumulates on the surface of the remote strobe’s op�cal bulkhead. Inspect the bulkhead for debris, salt or fouling. Cleaning the inside of both the remote strobe and the trigger op�cal bulkheads with rubbing alcohol and Q-Tips will ensure maximum light transmission and op�mal preperformance.

  • Page 14: Specification

    Speci�ication Parameters Value Opera�ng Temperature 0 - 40°C Batery Type, Capacity CR2, 700-850mAh Sleep Mode Opera�ng Time 400 days (full batery) Compliance On Mode Opera�ng Time ~60 hrs (blue mode) Weight, Dry (Submerged) ~100 grams (-30 grams) Anglerfish Trigger: Anglerfish Trigger is constructed from electrical components and parts that are RoHS compliant.
  • Page 15 QA/QC Check List PCB Tes�ng & Inspec�on  Menu Func�on and Program Test  Op�cal Trigger Circuit Test  Electrical Trigger Circuit Test  Hydrotest (980 kPa)  Serial No. p.11 Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...
