- Page 2 ELBC2000 Electric Brake Controller Remote Control Interface Elecbrakes Pty Ltd The Elecbrakes remote control has been engineered to provide the user with a PO Box 3593 simple user friendly in car controller. When connected to the ELBC 2000 devices, Wamberal NSW 2260 the remote will provide the user with an interface to operate manual override, change the brake response settings and brake programs.
-
Page 3: Table Of Contents
Contents Remote Interface Pg. 5 Active Display Screen Charging the Remote Shut Down Mode Sleep Mode Activating Remote from Sleep Mode Selecting Program Changing Program Display/Change Forward Brake Responses Display/Change Minimum Brake Responses Display/Change Reverse Brake Responses Manual Override Warranty... - Page 4 Remote guide...
-
Page 5: Remote Interface

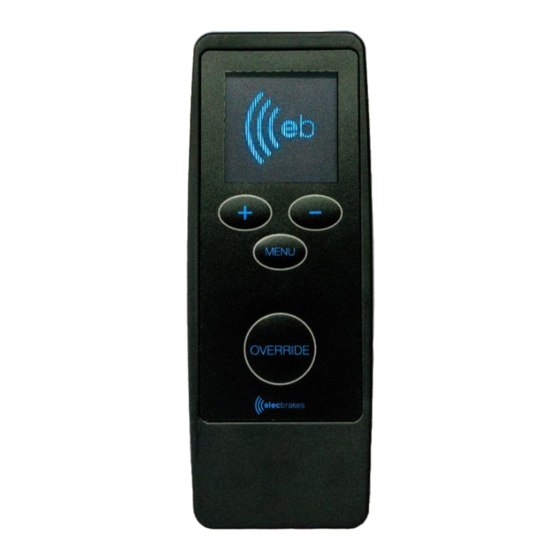

Remote Interface Battery Indicator 2. Display Screen 3. Increase Button 4. Decrease Button 5. Menu Button 6. Manual Override elecbrakes.com... -
Page 6: Active Display Screen
The remote display screen allows When powered up the screen 2. Once completing its start up the the user to identify the active state displays the Elecbrakes logo. remote will automatically start to of the remote. search for a device. The screen will display as searching. - Page 7 3. When connected to an ELBC 2000 the screen will 4. When braking in the vehicle the remote will indicate display a tick and active program will be displayed. red that the trailer is performing a brake response. elecbrakes.com...
-
Page 8: Charging The Remote
02. Charging the Remote 03. Shut Down Mode • The remote comes with a USB charging • The remote can be shut down by depressing the cable and a 12v socket plug. increase and decrease buttons simultaneously. • Connect the cable to the charging port •... -
Page 9: Sleep Mode
1 minute. The screen will turn off. • When connected to an ELBC 2000 the remote will not go into sleep mode. elecbrakes.com... -
Page 10: Selecting Program
06. Selecting Program • Press Menu Button once to display active program. • Active program number displayed (1 – 5) in the on-screen display. • Program name displayed at top of screen. Remote Guide... -
Page 11: Changing Program
07. Change Program • From the active screen press the menu button. • Active program displayed. • Use increase or decrease buttons to scroll through programs. elecbrakes.com... -
Page 12: Display/Change Forward Brake Responses
08. Display/Change Forward Brake Responses • Push menu button twice • Forward response displayed • Use Increase(+) and Decrease(-) buttons to change brake response Note: Forward Response should be fine tuned when doing >50km/h and moderately pressing brake pedal. Remote Guide... -
Page 13: 09, Display/Change Minimum Brake Responses
Note: Minimum Response should be fine tuned when doing 25kmh and lightly pressing brake pedal 10. Display/Change Reverse Response • Press Menu button 4 times • Reverse Response displayed • Use Increase(+) and Decrease(-) buttons to change brake response elecbrakes.com... -
Page 14: Manual Override
11. Manual Override Button Manual Override allows the driver to apply brake response on the trailer’s brakes only. The Remote has a pressure sensitive button, the harder you press the stronger the brake response. Remote Guide... - Page 15 When you take your finger off the manual override button the brakes will release. The screen will display as connected. elecbrakes.com...
