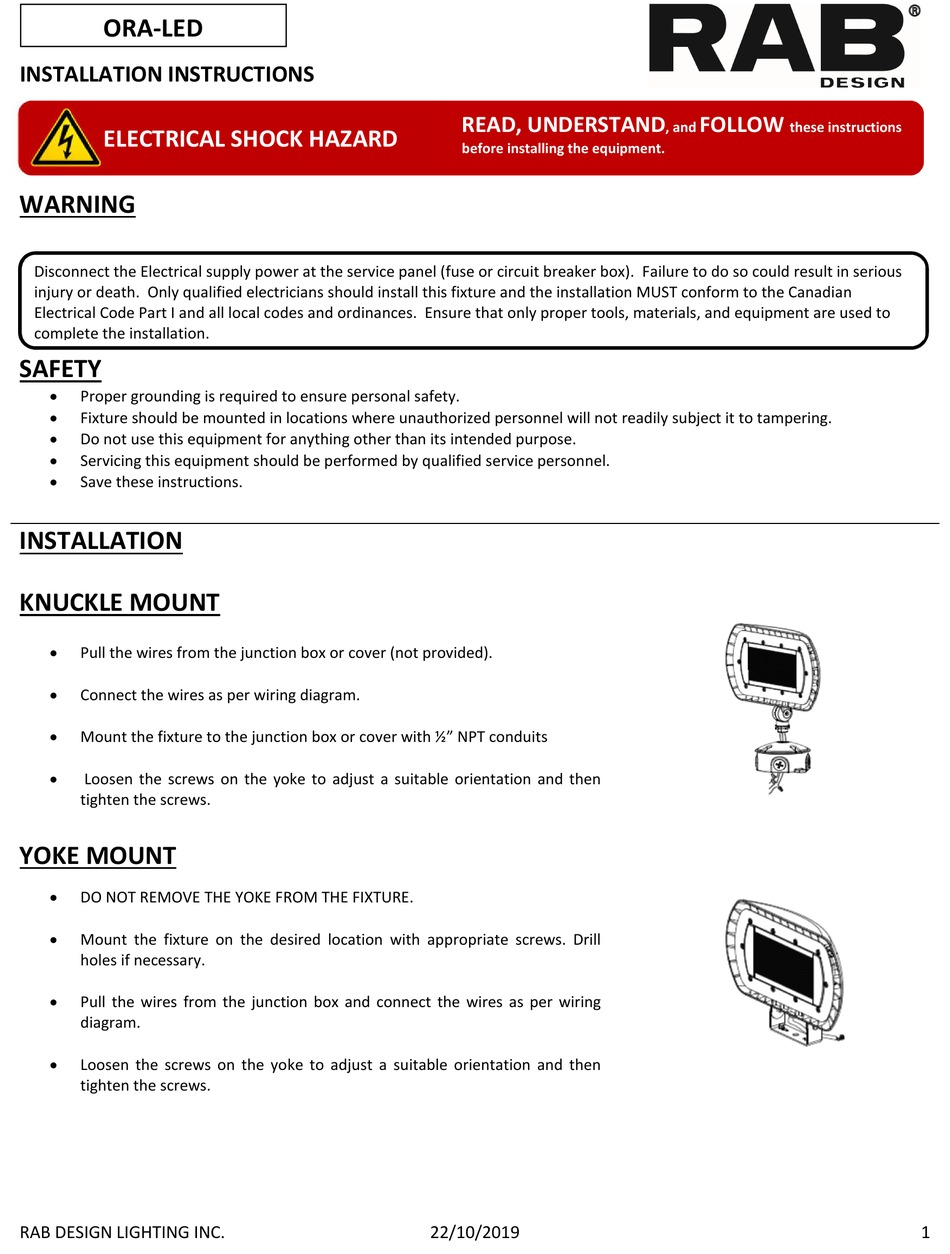

RAB Design ORA-LED Instructions

ORA-LED
INSTALLATION INSTRUCTIONS

ELECTRICAL SHOCK HAZARD

WARNING

Disconnect the Electrical supply power at the service panel (fuse or circuit breaker box). Failure to do so could result in serious
injury or death. Only qualified electricians should install this fixture and the installation MUST conform to the Canadian
Electrical Code Part I and all local codes and ordinances. Ensure that only proper tools, materials, and equipment are used to
complete the installation.

SAFETY

Proper grounding is required to ensure personal safety.

Fixture should be mounted in locations where unauthorized personnel will not readily subject it to tampering.

Do not use this equipment for anything other than its intended purpose.

Servicing this equipment should be performed by qualified service personnel.

Save these instructions.


INSTALLATION

KNUCKLE MOUNT

Pull the wires from the junction box or cover (not provided).

Connect the wires as per wiring diagram.

Mount the fixture to the junction box or cover with ½" NPT conduits

Loosen the screws on the yoke to adjust a suitable orientation and then

tighten the screws.

YOKE MOUNT

DO NOT REMOVE THE YOKE FROM THE FIXTURE.

Mount the fixture on the desired location with appropriate screws. Drill

holes if necessary.
 Pull the wires from the junction box and connect the wires as per wiring
diagram.
Loosen the screws on the yoke to adjust a suitable orientation and then

tighten the screws.
RAB DESIGN LIGHTING INC.
READ, UNDERSTAND
before installing the equipment.
22/10/2019
FOLLOW
, and these instructions
1
