Summary of Contents for MiFleet +Vision C6D-M

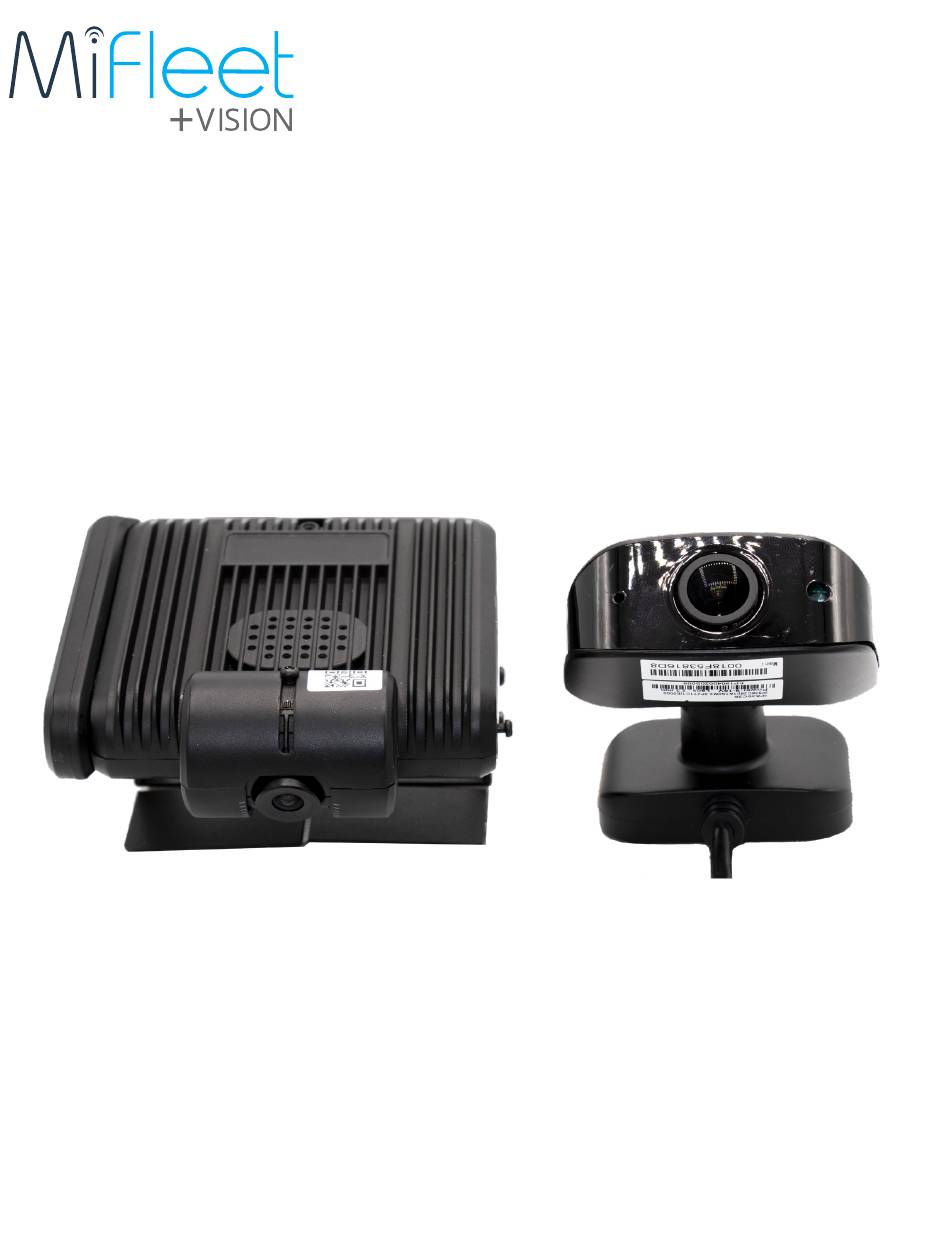

  • Page 1 C6D-M Hardware Installation Guide For more information, please visit our website www.MiFleet.us/support...
  • Page 2: Install Guide

    It is light weight, convenient, and with the proper installation can fit easily behind the rear view mirror for full visibility of the vehicle’s cab. With MiFleet + Vision’s small size it will never obstruct your drivers view so they can always keep their eyes on the road.
  • Page 3: Box Contents

    Used to open or close SIM door 1 pcs To mount the exterior facing camera Mounting Bracket 1 pcs to the windshield for easy installation Used for fixing mounting bracket and Screws 4 pcs exterior facing camera For more information, please visit our website www.MiFleet.us/support...
  • Page 4 Used for external facing installation For shearing and stripping cables Wire Strippers (for vehicles without OBDII port) Electrical Tape Used for dressing exposed wire ends USB Flash Drive Used for upgrade and storage of files For more information, please visit our website www.MiFleet.us/support...
  • Page 5: Device Diagram

    Rear view mirrors and sun visors should not be affected after installation of the driver facing camera. For more information, please visit our website www.MiFleet.us/support...
  • Page 6 4. Connect the power in / IO cable, GPS antenna, and IPC to the camera unit as shown below. NOTE: Using “power out/RS232” is not necessary only if panic button, OBD reader or other accessories are included. For more information, please visit our website www.MiFleet.us/support...
  • Page 7 NOTE: You can adjust the camera lens angle with the screw shown below (below images). You can adjust the whole mounting position by adjusting the screw space in image on the left. For more information, please visit our website www.MiFleet.us/support...
  • Page 8 Picture below shows how the external facing camera should be mounted. If surface is not cleaned properly before mounting, device will have issues sticking and you may experience device falling from glass. For more information, please visit our website www.MiFleet.us/support...
  • Page 9 5. Arrange the redundant cables and hide them in the A-pillar. The installation diagram is as shown below: A. Hide all cables under headliner B. Restore panels such as A-pillar panels and fuse boxes C. Wipe the work surface and turn vehicle on to connect For more information, please visit our website www.MiFleet.us/support...
  • Page 10: Troubleshooting

    Trouble shooting LED indicator There is only one LED status indicator on the MiFleet + Vision base. The working status of device can be reflected by the lighting. • No light on device means the device is not powered on.
  • Page 11 4. Check whether the main stream recording parameter of the recording setting interface is enabled. If it is not turned on, it should be turned on manually. For more information, please visit our website www.MiFleet.us/support...
