RL70 SERIES MOUNTING

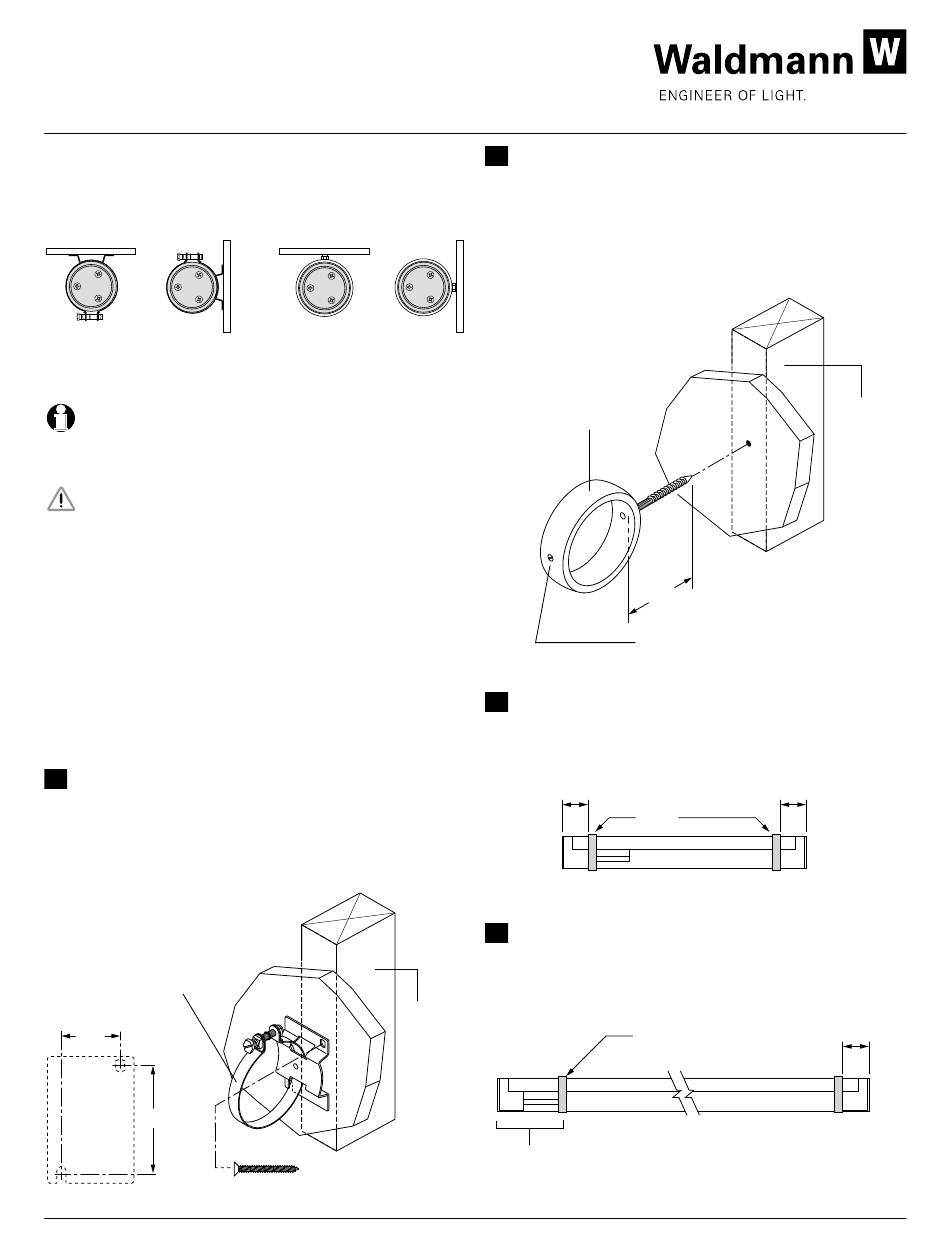

Surface Mounting Instructions For RL70 Luminaire

Intended use

The Surface Strap Bracket and the Surface Ring Bracket were
developed especially for ceiling or wall mounting for the RL70
tube luminaire.
Ceiling Wall
Surface Strap Bracket
Important note!
Please make sure to observe the safety instructions and
warnings given in the operating instructions of the luminaire.
Safety Instructions
Mount the luminaire indoor or outdoor in wet or dry locations,
not subject to explosion hazards!
Mount the luminaire only to a suitable ceiling or wall surface
using appropriate screws or fasteners.
Mounting and connection of the luminaire must be carried out
by a qualified electrician and must be wired in accordance
with the National Electrical Code and applicable local codes.
Proper grounding is required for safety.
Warning: Make certain power is OFF before installing or
maintaining the luminaire.
A Surface Strap Bracket Mounting
The Surface Strap Bracket must be securely mounted to the
ceiling or wall surface. It is recommended that the bracket(s)
be mounted directly to a wood structural member. It is the
duty of the installer to be sure the fixture is securely
mounted to the ceiling or wall surface
using appropriate fasteners.
Typical Installation
Surface Strap Bracket
1-3/16"
2-3/16"
Mounting Holes
Page 1 of 2
Ceiling
Surface Ring Bracket
Wood
structural
member
Wood screw
recommended
Note: Technical specifications are subject to changes. ® 2012
B Surface Ring Bracket Mounting
The Surface Ring Bracket must be securely mounted to
the ceiling or wall. It is recommended that the bracket(s) be
mounted directly to a wood structural member. It is the duty
of the installer to be sure the fixture is securely mounted to the
ceiling or wall surface using an appropriately sized wall plug if
a wood substrate is not available.
Wall
Typical Installation
Surface Ring Bracket
C Bracket Spacing
The Surface Strap Bracket or Surface Ring Bracket should
be placed 3 to 6 inches from each end of the luminaire.
0˝– 6˝
D Alternate Bracket Spacing for Luminaires
For luminaires with ballast compartment at end of luminaire,
place one bracket near the end of the ballast compartment as
shown below.
Ballast compartment
1-3/4"
Tighten plastic set screw after luminaire
has been installed to prevent rotation.
0˝–6˝
Bracket
Place bracket near end
of ballast compartment
www.waldmannlighting.com
Wood
structural
member
0˝–6˝
