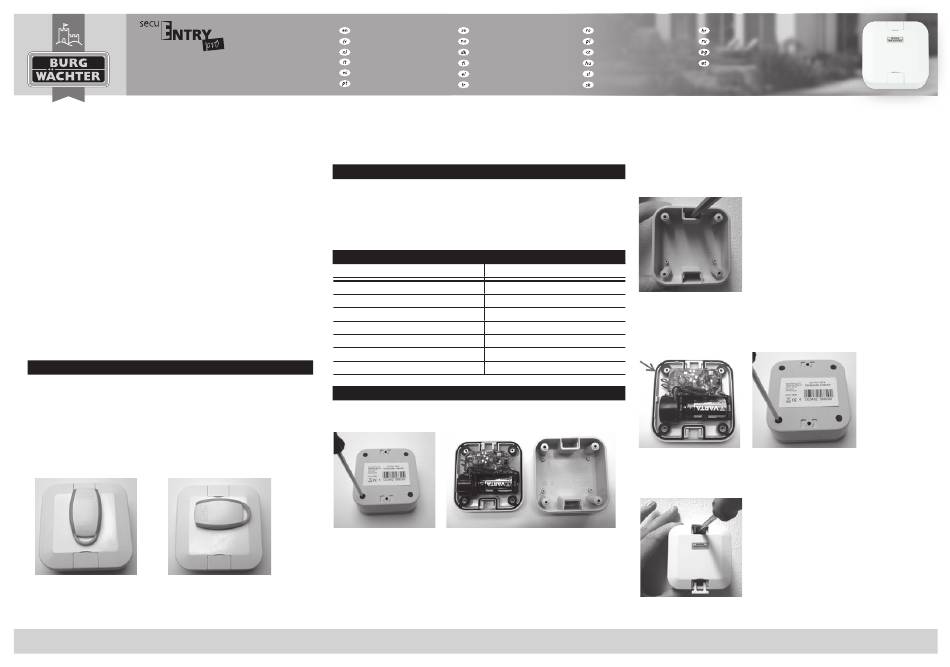

Burg Wächter secuENTRY pro 7074 Operating Instructions

Electronic Door Lock
secuENTRY pro 7074 Transponder Extender
Operating Instructions
Dear customer,
Thank you very much for deciding on the electronic secuENTRY lock
system from BURG-WÄCHTER.
The secuENTRY Transponder Extender allows you to easily open locks of
the secuENTRY family using a transponder. It can also be used to allow
an opening from a maximum distance of 4m to the lock (depending on
the surrounding physical conditions).
Note: If the QR code is lost or damaged, a firmware update of the
Transponder Extender is no longer possible. The QR code can, however,
be scanned in electronic form as a file, for example, or saved as a photo
on a protected data carrier.
The secuENTRY Transponder Extender can be used as of the following
versions:
• secuENTRY and secuENTRY pro as of software version 1.7
• secuENTRY easy / secuENTRY pro 7100 and secuENTRY easy plus as of
software version 1.3
• secuENTRY pro 7071 Relay as of software version 1.4
Registration process
In order to be able to use the secuENTRY Transponder Extender,
a Transponder must be registered to the profile cylinder with the
secuENTRY software or via a keypad.
• Bring the Transponder Extender in the vicinity of the profile cylinder
and hold the registered transponder on the Extender until a signal
tone sounds. Make sure that you position the transponder on the
BURG-WÄCHTER label.
Fig. 1: Read area of the Transponder Extender
· ·
BURG-WÄCHTER KG Altenhofer Weg 15
Download: www.burg.biz
Download: www.burg.biz
Download: www.burg.biz
Download: www.burg.biz
Descarga: www.burg.biz
Download: www.burg.biz
• Shortly thereafter, another beep sounds, and the profile cylinder
engages. The Transponder Extender is now registered to the
profile cylinder.
• Please repeat this process if the registration process fails.
Operation
• Hold the transponder that is authorised to open directly on the
BURG-WÄCHTER label on the Extender until a short signal tone sounds.
• After a brief moment, one or more beeps will follow that will indicate
to you the opening authorisation or the battery status of the profile
cylinder and the Extender.
Signal tones
Transponder has been recognised
Opening process successful
Permanent opening ends
Value not achieved
Permanent opening
Replace battery
No opening authorisation
Unit has not been found
Installation
• Remove the four housing screws on the bottom of the Extender and
open the housing cover.
Fig. 2: Opening the Transponder Extender
• Place the housing base in the desired position on the wall. Depending
on the surrounding conditions, the Extender can be positioned within
a radius of a maximum of 4 m from the lock.
· ·
58300 Wetter Germany www.burg.biz
Download: www.burg.biz Descărcare: www.burg.biz
Download: www.burg.biz Pobieranie pliku: www.burg.biz
Download: www.burg.biz Stáhnout: www.burg.biz
Ladattava tiedosto: www.burg.biz Letölthető: www.burg.biz
λήψη: www.burg.biz Download: www.burg.biz
İndir: www.burg.biz Download: www.burg.biz
Important: Before installation, check the response between the
Transponder Extender at its planned installation position and the
profile cylinder!
CAUTION: Note alignment; both drill holes must be at the top and bottom!
• Mark the two drill holes and drill.
1 beep
1 beep
Fig. 3: Mark drilling position
2 beeps
3 beeps
• Close the housing using the housing screws.
4 beeps
CAUTION: The housing gasket must be in the groove and must not
5 beeps
be damaged.
8 beeps
Continuous beeping
Fig. 4: Closing the Transponder Extender
• Open the clips on the front of the Transponder Extender and attach it to
the wall with anchors and screws.
Fig. 5: Fastening the Transponder Extender
Download: www.burg.biz
загрузка: www.burg.biz
Download (зареди): www.burg.biz
Download: www.burg.biz
BW_sE_TransponderExtender_BA_sE_020100,
2018-08-10 kfs
English I 1
