Summary of Contents for Show Tec LED Foot 4

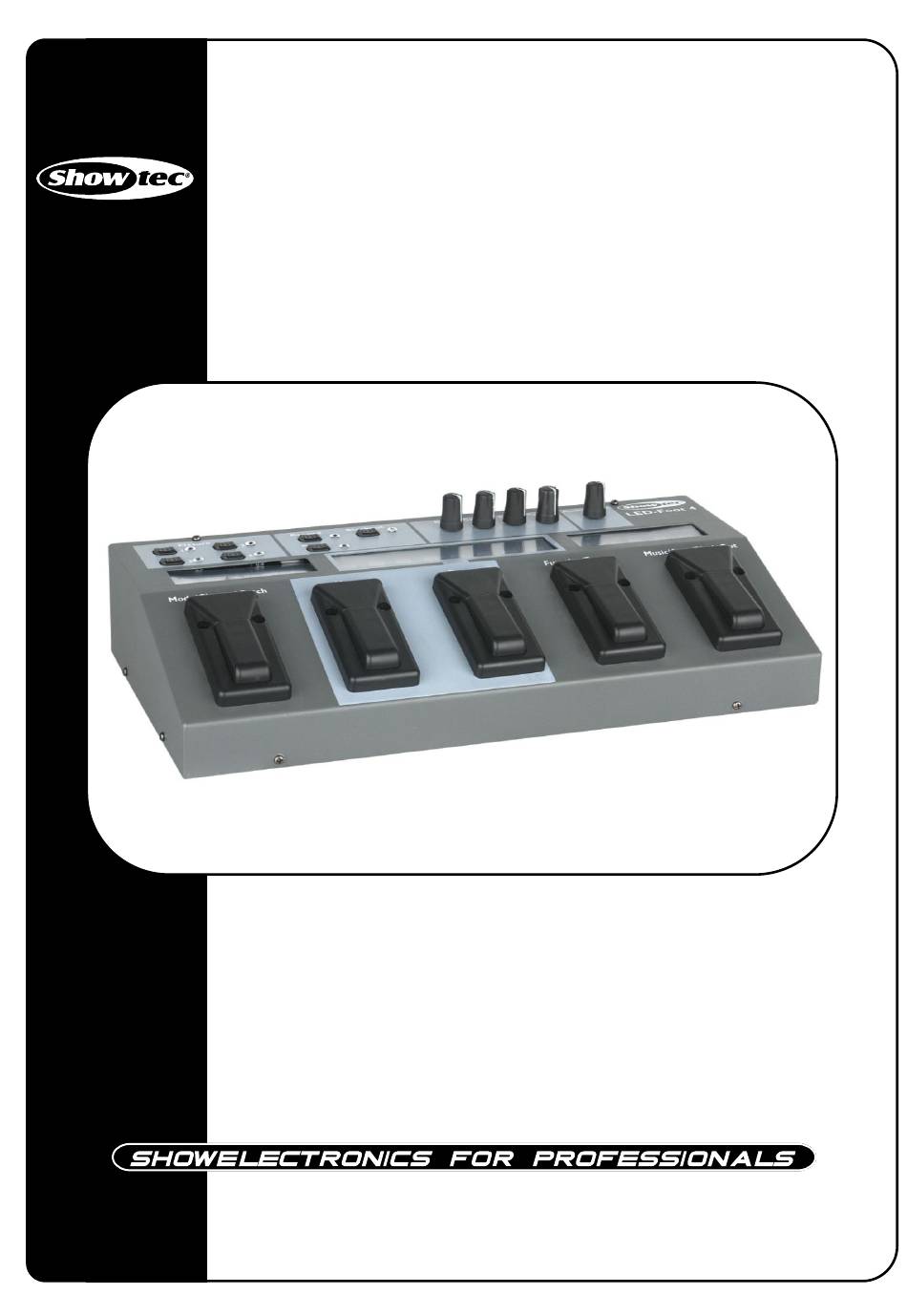

- Page 1 LED Foot 4 ORDERCODE 50719...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. Showtec LED-Foot 4 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products. We design and manufacture professional light equipment for the entertainment industry.
-
Page 3: Table Of Contents
Showtec Showtec LED-Foot 4 ™ Product Guide Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................6 Top ....................................7 Backside .................................. -
Page 4: Warning
Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non- observance of this manual or any unauthorized modification to the device. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ...
-
Page 6: Operating Determinations
Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The maximum ambient temperature t = 45°C must never be exceeded. •... -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
Description of the device Features The LED-Foot 4 is a light controller from Showtec and features: • 4 Channel patchable LED par controller • Can be used with any LED Parcan • Patchable • Music control • Foot control • Total control to 4 groups of LED Parcans •... -
Page 9: Top
2 3 4 5 6 7 8 Fig. 1 Backside Fig. 2 1) Fixture 1-4 11) Up Foot pedal 2) Record button 12) Down Foot pedal 3) Patch button 13) Function/Enter pedal 4) Blackout button: to cut all output. 14) Music/Auto/Black Out pedal 5) Red control 15) Midi 6) Green control... -
Page 10: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Remove all packing materials from the LED-Foot 4. Check that all foam and plastic padding is removed. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 11: Chases
2. Chases 2.1 Program Chase 1. To enter the Program Mode, press and hold the Record button (2) for 3 seconds, the record LED will light up red. 2. To select the CHASE mode, press the Mode pedal (10) and select the CHASE mode. The LED display above the Mode pedal (10) will show “CHASE”... -
Page 12: Channel Assignment
Channel Assignment 1. To enter the channel assignment mode press the Patch button (3) for 3 seconds. The Patch LED will light up red, which indicates the controller is in channel assignment mode. 2. To select the fixture you want to patch, press one or multiple Fixture buttons (1). When the Fixture LED lights up blue, the fixture can be patched. -
Page 13: Maintenance
Maintenance The Showtec LED-Foot 4 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. - Page 14 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are completely dead. Fixtures reset The controller is not connected. • Connect controller. correctly, but all 3-pin XLR Out of the controller •...
-
Page 15: Product Specification
Product Specification Model: Showtec LED-Foot 4 • 4 Channel patchable LED par controller • Can be used with any LED Parcan • Patchable • Music control • Foot control • Total control to 4 groups of LED Parcans • LED-Foot can work with any LED fixture in the market •...
