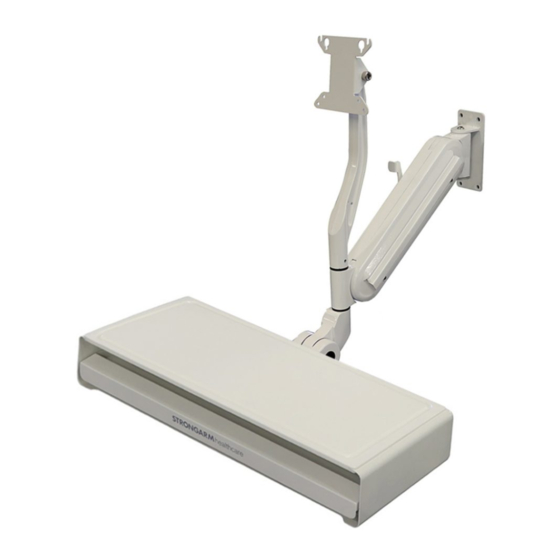

STRONGARM healthcare MightyMount Quick Start Installation Manual

MightyMount
Quick Start Installation Guide
What's Included
A) 1/4" Hex Key
B) (4) Display Thumb Screws (M4 x 8)
C) (4) Display Thumb Screws (M4 x 12)
D) Track cover
Tools You'll Need
• #1 Phillips screwdriver
• Wire Cutter & Tie Wraps (for securing
keyboard and mouse cabling: see Step 4 for
instructions on accessing prewired USB hub)
4. USB Hub Access
1) Turn latch on rear of keyboard enclosure to
release cover. Pull cover forward to access the
USB hub.
1. Install Mounting Track*
* Refer to track installation instructions

5. Install Display

Using (4) M4 x 8 Display Thumb Screws, attach
display to MightyMount.
(NOTE: If the M4 x 8 Display
Thumb Screws can't be threaded sufficiently to provide a secure
attachment, use the M4 x 12 Display Thumb Screws instead.)
Visit strongarmhealthcare.com to view our installation video.
2. Install Onto Track
6. Run Cables and Install
Cable Guard
Display cables can be secured to the neck with a
tie wrap fed through the provided holes
STRONGARMhealthcare
3. Level and Tighten
Use 1/4" Hex Key to Tighten Four Slider Key Bolts
7. Install Track Cable Cover
Cut supplied track cover to desired length(s) and
slide into track channels as shown
