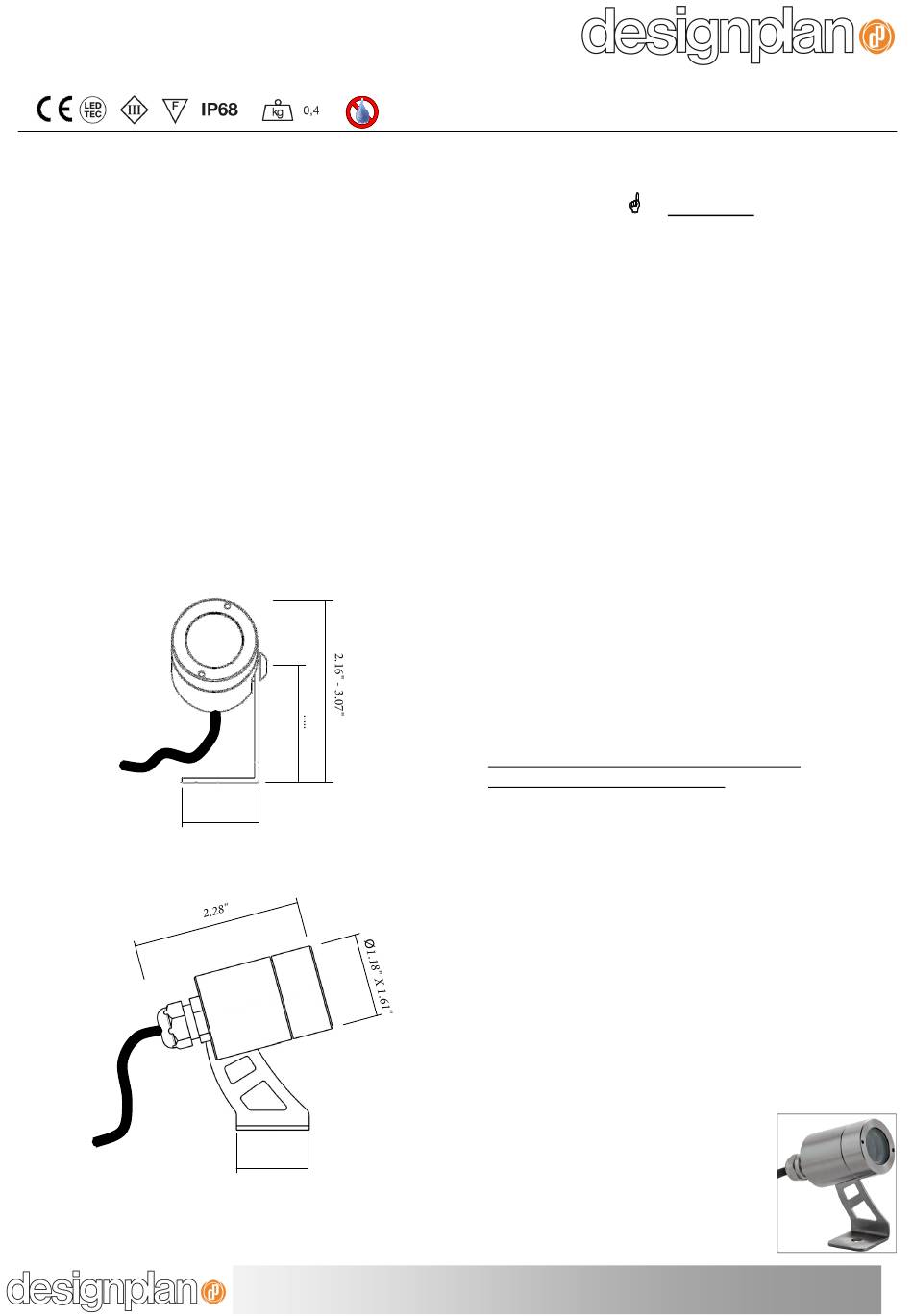

Designplan SPOT 1.0 Installation Instructions

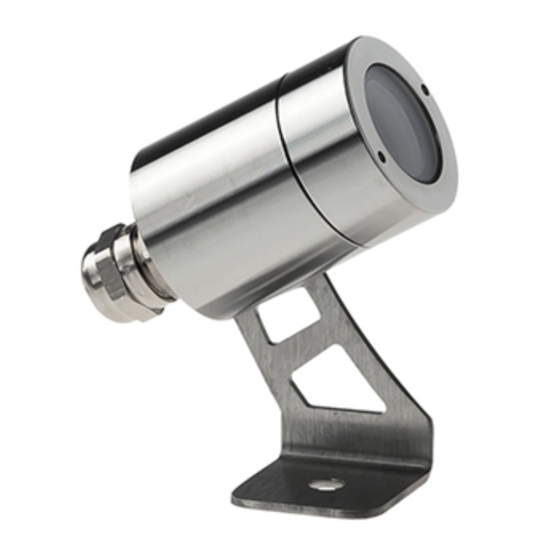

SPOT 1.0 w/ AQUASTOP
Installation instructions
1.063"
.98"
Designplan Lighting, Inc., 79 Trenton Ave., Frenchtown NJ, 08825. T.908-996-7710 F.908-996-7042
Designplan Lighting, Inc., 79 Trenton Ave., Frenchtown NJ, 08825. T.908-996-7710 F.908-996-7042
Please read the following instructions carefully.
IMPORTANT:
• Although LED runs on a very low voltage, always cut off the power sup-
ply before installing the LED light or subjecting it to maintenance.
• Unauthorised alterations or tampering of the product will invalidate all
the conditions of guarantee.
This fixture must be installed by a qualified electrician.
•
Designplan is not responsible if its fixtures are not installed in
•
according to local safety standards.
• Data contained in this document may be changed at any moment with-
out prior notice.

ELECTRICAL CONNECTIONS:

•
LED lights run at constant current.
•
LED lights must be connected in series respecting polarities.
• As for the choice of the power supplies, please consider the current
through which they are fed and the max power consumption of
LEDs you have to install.
•
The total number of LEDs to be fed must be counted for each single
spot (e.g. 2 spots with 3 LEDs 1W each= 6 LEDs 1W in all= 6W).
•
The system must be fed only if all the spots are connected . The
connection of the single spots with the power supply in voltage may
damage the spot.
•
The power supplies must be installed in aerated rooms, far from heat
sources. A situation of overworking or a lack of air circulation will not
permit a natural dissipation.
•
The electronic power supply is current-stable, therefore it partially com-
pensates the voltage-drop problems related to the cable length; we
suggest not to exceed 120ft (30 metres).
• Use only Selv type electronic power supply or similar.
•
Never use switches on secondary circuit.
NOTES:
Wire connections must be realized with wire nuts or
•
similar.
Pag. 1 - rev.00

WARNING!!!
