INSTRUCTION MANUAL
FOR
Combo Electrotherapy Device
Model: R-C4A
Shenzhen Roundwhale Technology Co., Ltd.
This manual is valid for the R-C4A Stimulator
Be sure to read this instruction manual before operating and
keep it where safe.
This user manual is published by Shenzhen Roundwhale
Technology Co., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-C4A and is the answer not in the manual?

Questions and answers

Related Manuals for Shenzhen Roundwhale Technology R-C4A

Summary of Contents for Shenzhen Roundwhale Technology R-C4A

  • Page 1: Instruction Manual

    Combo Electrotherapy Device Model: R-C4A Shenzhen Roundwhale Technology Co., Ltd. This manual is valid for the R-C4A Stimulator Be sure to read this instruction manual before operating and keep it where safe. This user manual is published by Shenzhen Roundwhale...
  • Page 2 However, Amendments will be published in a new edition of this manual. All Rights Reserved. R-C4A Rev.V1.1© 2019, printed in May. 6, 2019. Declaration of conformity: Shenzhen Roundwhale Technology Co., Ltd. declares that the device complies with following normative documents:...

  • Page 3: Table Of Contents

    TABLE OF CONTENS 1. FOREWORD 2. SAFETY INFORMATION 3. GETTING TO KNOW YOUR DEVICE 4. SPECIFICATION 5. OPERATING INSTRUCTION 6. INSTRUCTIONS FOR USE 7. CLEANING AND MAINTENANCE 8. TROUBLESHOOTING 9. STORAGE 10. DISPOSAL 11. ELECTROMAGNETIC COMPATIBILITY (EMC) TABLES 34 12. NORMALIZED SYMBOLS 13.

  • Page 4: Foreword

    1. FOREWORD Introduction The device R-C4A is a dual channel output TENS, EMS and MASSAGE stimulator. Before using, please read all the in- structions in this user manual carefully and keep it safe for future use. The COMBO stimulator belongs to the group of electrical stimulation systems.
  • Page 5 1.2 Medical background 1.2.1 ABOUT PAIN Pain is an important signal in the human body warning sys- tem. It reminds us that something is wrong, without which, abnormal conditions may go undetected, causing damage or injury to vital parts of our bodies. Even though pain is a necessary warning signal of trauma or malfunction in the body, nature may have gone too far in its design.

  • Page 6: Safety Information

    1.2.3 WHAT IS EMS ? Electrical Muscle Stimulation is an internationally accepted and proven way of treating muscular injuries. It works by sending electronic pulses to the muscle needing treatment that causes the muscle to exercise passively. It is a product deriving from the square waveform, originally invented by John Faraday in 1831.
  • Page 7 2.2 Important Safety Precautions and Warnings It is important that you read all the warnings and precautions included in this manual because they are intended to keep you safe, prevent risk of injury and avoid a situation that could result in damage to the device. SAFETY SYMBOLS USED IN THIS MANUAL 2.2.1 Contraindication...
  • Page 8 pain, consult with your physician before use. If your pain is not subdued, whice becomes more th- an mild, or lasts for more than five days, stop using the device and consult with your physician. 3) Do not apply stimulation over your neck because this could cause severe muscle spasms resulting in closure on heart rhythm or blood pressure.
  • Page 9 13) Do not use the stimulator in the vicinity of shortwave the output power of the stimulator. 14) Never use it near the cardiac area. Stimu- lation electrodes should never be placed anywhere on the front of the thorax (marked by ribs and breastbone), but above all not on the two large pectoral muscles.
  • Page 10 pain patients. 5) Since the effects of stimulation of the brain are un- known, stimulation should not be applied across your head, and electrodes should not be placed on opposite sides of your head. 6) The safety of electrical stimulation during pregnancy has not been established.

  • Page 11: Getting To Know Your Device

    18) Check the electrode connections before each use. 19) Electrical stimulators should be used only with the electrodes recommended for use by the manufacturer. 2.2.4 Adverse Reactions 1) Possible skin irritation or electrode burn under the electrodes may occur. On very rare occasions, first-time users of EMS report feeling light-headed or faint.
  • Page 12 3.2 LCD display 14 15 16 No. Function description No. Function description 1 Treatment mode 9 Program NO. or Treatment time 2 Key locking symbol 10 Massage type 3 Treatment body part 11 SET symbol. 4 Model of human body 12 Pulse rate and width symbol 5 Intensity for Channel A 13 Intensity for Channel B 6 Low battery symbol 14 Symbol of Channel A...

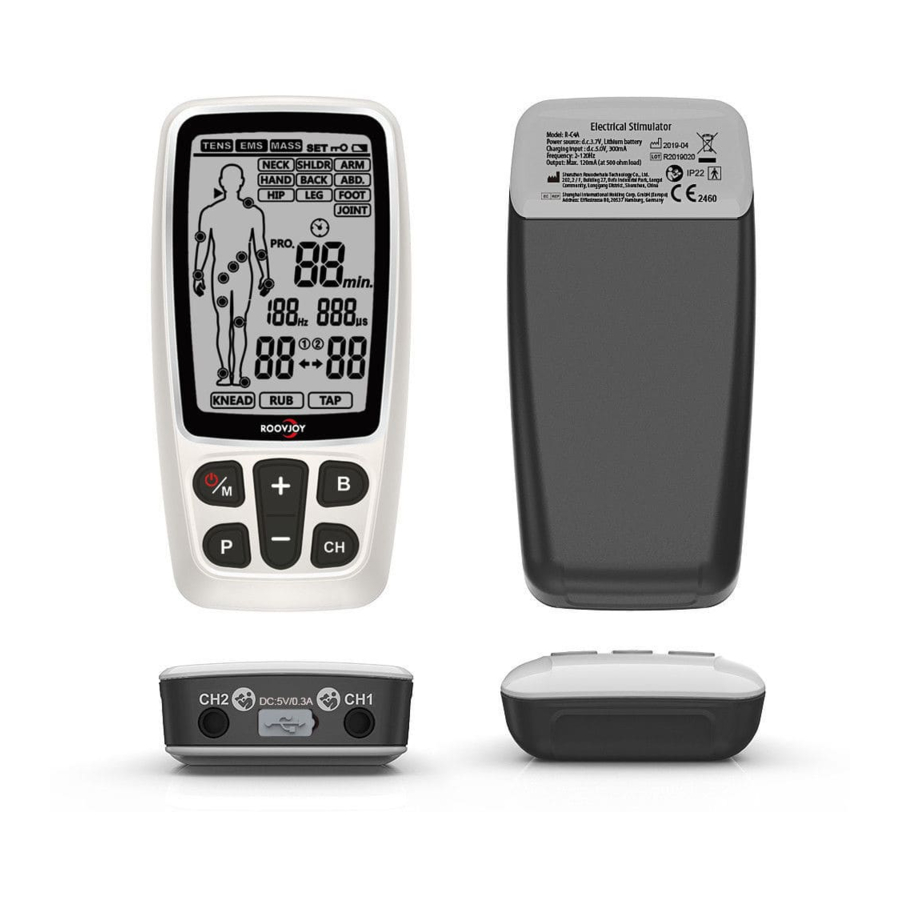

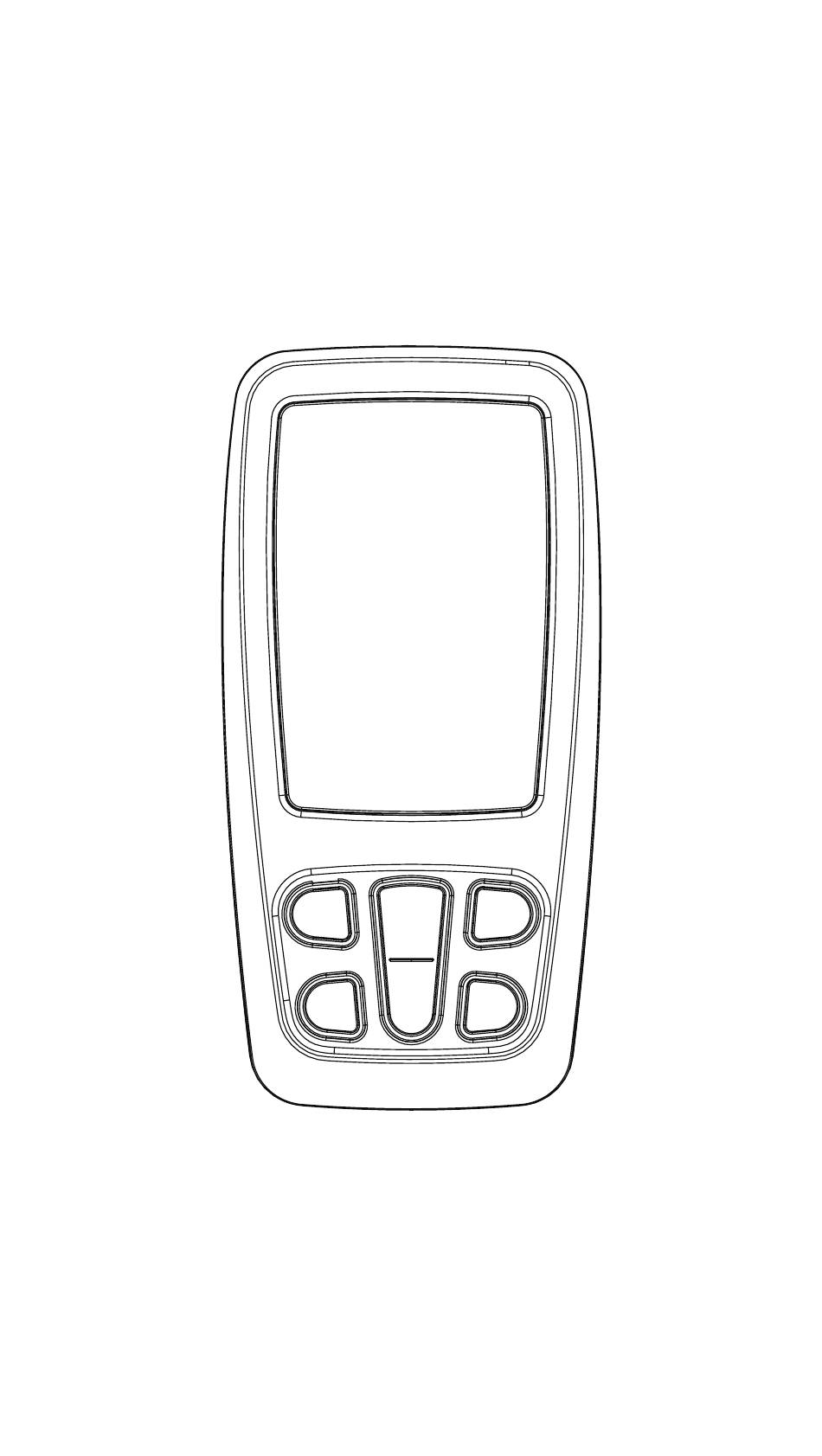

  • Page 13 3.3 Device illustration Description LCD display Charger indicator: When the device is charging, the indicator light will be yellow. When charging is completed, the indicator light will be green. [ON/OFF/M] button: At power saving mode, press the [ON/OFF/M] button to turn on the device; At standby mode, press the [ON/OFF/M] button to select the treatment At treating mode, press the [ON/OFF/M] button to stop the treatment.

  • Page 14: Specification

    At setting treatment time status, press the [-] button to decrease the treatment time. Output socket USB socket 4. SPECIFICATION 4.1Technical information Device name Combo Electrotherapy Device Model/type R-C4A Power sources 3.7 V Li-ion battery Power supply Input: 100-240V AC, 50/60Hz,0.2A; Output: 5V DC, 300mA Dual channel Output channel Waveform...

  • Page 15: Operating Instruction

    Electrode detec- The electric current level will be reset to 0 mA, tion function when the amplitude level is 1 or greater and an open circuit at either channel is detected. Size of electrodes pad 50x50mm, square Output precision ±20% error is allowed for all the output pa- rameters TENS mode Number of programs...
  • Page 16 Caution Always use the electrode pads which comply with the re- quirements of the IEC/EN60601-1, ISO10993-1/-5/-10 and IEC/ EN60601-1-2, as well as CE and FDA 510(K) regulation. 5.2 Connect electrode pads to electrode wires Before proceeding to this step, ensure that the device is completely switched OFF.
  • Page 17 The electrodes should be routinely replaced when they start to lose their adhesiveness. If you are unsure of your electrode adhesive properties, please order new replace- ment electrodes. Replacing electrodes should be re-or- dered under the advice of your physician or the device manufacturer to ensure proper quality.
  • Page 18 5.3.3 Electrode placement R-C4A is a kind of OTC stimulator, suitable for home use. You only have to use according to the user manual, place the electrode on the position where you feel pain. Conduct exercise, treatment and adjustment based on your own feeling.
  • Page 19 Back Abdomen ２ Foot Joint (knee) Joint (elbow)
  • Page 20 Joint (ankle) Joint (wrist) Position of electrode placement under EMS programs Neck Shoulder Hand Back...

  • Page 21: Instructions For Use

    Abdomen Foot 6. INSTRUCTIONS FOR USE 6.1 Turn on Press the [ON/OFF/M] button to turn on the device, the LCD will be lit. And then it goes into the standby mode as the picture shown below.
  • Page 22 6.2 Select treatment mode Press the [ON/OFF/M] button to select which treatment mode (TENS ‒ MASS - EMS) you will use. The LCD displays as follows: 6.3 Select treatment body part Based on your need, Press the [B] button to select the curr- ent treatment body part.
  • Page 23 6.5 Select treatment channel Press the [CH] button to select the treatment channel. The LCD displays as follows: 6.6 Set program parameter Press and hold [P] button to enter the setting mode. 1) In the program p1 and p2, Press [+]/[-] button to adjust treatment time.
  • Page 24 3). Press [ON/OFF/M] button to return to the standby mode. 6.7 Start treatment Press the [+] button to increase the intensity of the selected treatment channel. The LCD displays as follows: 6.8 Adjust the output intensity Press the [+] button to increase output intensity. It will be...
  • Page 25 increased to a higher level after each press. The device has totally 40 levels of output intensity. Please adjust the inten- sity to the condition that you feel comfortable. The level of output intensity will be shown on the LCD: At treating status, press and hold [B] button to turn on lock function.
  • Page 26 Caution: If you feel or become uncomfortable, reduce the stimu- lation intensity to a more comfortable level and consult with your medical practitioner if problems insist. Press the [ON/OFF/M] button to stop treatment during the treating mode. Press the [ON/OFF/M] button again to turn 6.10 Load detection It will automatically detect the load if the intensity is above level 5.

  • Page 27: Charging The Battery

    6.11 Low battery detection When the battery is low, the icon will twinkle to indi- cate it, stop the device and charge the battery. Charging the Battery: Proceed as follows to recharge the battery: • This device cannot be used while charging. •...
  • Page 28 • When charging is completed, the indicator light will be green. The life of a rechargeable battery depends on the number of recharging/rundown cycles it undergoes and how these cycles are performed. The following suggestions will help prolong the life of the battery: •...
  • Page 29 applications. If your electrode pads no longer fully stick to the skin’ surface, replace them with new ones. Stick the electrode pads back onto the protective foil after use and store them in the storage bag to prevent them from drying out.

  • Page 30: Cleaning And Maintenance

    Usage advice for TENS: a) If you feel the output intensity too strong, you can press [-] button to decrease it; b) If you don't feel any discomfort during the treatment, we advise you to use the device until the session ends. Nor- mally, the pain relief occurs after 5~10 mins treatment;...
  • Page 31 7.1.2 Do not expose the COMBO stimulator to moisture or dampness. And do not hold the COMBO stimulator under running water, nor submerge it in water or ot- her liquids. 7.1.3 The COMBO stimulator is sensitive to heat and may not be exposed to direct sunlight.

  • Page 32: Troubleshooting

    systematic validation. The performance is stable and does not need to undertake calibration and validation. If your product can’reach the expected performance and the basic function has changed in normal use, please con- tact the retailer. 8. TROUBLESHOOTING Should any malfunction occur while using the device, check whether the parameters are set appropriately for therapy, and adjust the control correctly.

  • Page 33: Storage

    1. Do the treatment once a day and shorten the treat- ment time. 1.The treatment time 2. Check and stick the lasts too long. electrode well. 2.The electrode does 3. Wipe the electrode not stick well to the Rash or tickle with a wet cotton skin.

  • Page 34: Disposal

    into the gift box. Store the box in a cool, dry place, -10℃ ~ 55℃ ; 10% ~ 90% relative humidity. 2. Do not keep in places that can be easily reached by chil- dren 10. DISPOSAL Spent batteries do not belong to the household wastes.
  • Page 35 The device uses RF energy only for its internal function. Therefore, its RF R F e m i s s i o n s Group 1 emissions are very low and are not CISPR11 likely to cause any interference in nearby electronic equipment.
  • Page 36 <5% U (>95% dip in for 0.5 cycle Voltage dips, 40% U short interrup- (60% dip in U not applicable tions and volt- for 5 cycles not applica- (For INTERNAL- age variations LY POWERED ME on power supply 70% U EQUIPMENT input lines (30% dip in U...
  • Page 37 Radiated 10V/m 10V/m & Portable and mobile RF communi- & table table 9 cations equipment should be used not closer to any part of the Blood 61000-4-3 Pressure Monitor, including cables, than the recommended separation distance calculated from the equa- tion applicable to the frequency of the transmitter.
  • Page 38 for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the device is used exceeds the applicable RF compliance level above, the device should be observed to verify normal operation.
  • Page 39 1720 GSM1800; 1845 CDMA 1900; Pulse 1700- GSM 1900; modu- 1990 DECT; LTE lation 1970 Band 1,3, 217Hz 4,25; UMTS Bluetooth, Pulse WLAN, 2400- modu- 2450 802.11 b/g/ 2570 lation n, RFID 2450, 217Hz LTE Band 7 5240 Pulse 5100- WLAN 802.11 modu- 5500...

  • Page 40: Normalized Symbols

    15º. Vertically falling drops shall have no harm- ful effects when the enclosure is titled at any angle up to 15º, on either side of the vertical. Manufacturer information: The manufacturer Shenzhen Roundwhale Technology Co., LTD. Manufacture date...

  • Page 41: Warranty

    13. WARRANTY Please contact your dealer or the device center in case of a claim under the warranty. If you have to return the unit, en- close a copy of your receipt with cl ear statement of defect description. The warranty terms are as below: 1.
  • Page 42 Accessory： Treatment programs Type of Mode Body Part Program Pulse rate (Hz) Pulse width (uS) Treatment time (Min) waveform Default:30 80-120 120-100 Modulation Adjustable:(5-90) Default:30 NECK 150-200 Modulation Adjustable:(5-90) Default:35 Default:200 Default:30 Continue Adjustable:(2-100) Adjustable:(100-300) Adjustable:(5-90) Default:30 80-100 Modulation Adjustable:(5-90) Default:30 SHOULDER 2-60...
  • Page 43 Accessory： Treatment programs Type of Mode Body Part Program Pulse rate (Hz) Pulse width (uS) Treatment time (Min) waveform Default:30 Synchronous Adjustable:(5-90) Default:30 NECK Synchronous Adjustable:(5-90) Default:50 Default:200 Default:30 Synchronous Adjustable:(20-100) Adjustable:(100-300) Adjustable:(5-90) Default:30 Synchronous Adjustable:(5-90) Default:30 SHOULDER Synchronous Adjustable:(5-90) Default:80 Default:200 Default:30...
  • Page 44 Shenzhen Roundwhale Technology Co., Ltd. Add: 202, 2/F, Building 27, Dafa Industrial Park, Longxi Community, Longgang Street, Longgang District, Shenzhen, China. Tel: +86-755-23212776 Fax: +86-755-23212776 E-mail: info@roovjoy.com...
