PRECAUTION:
Before beginning installation or service, disconnect the power by turning off the circuit breaker. Turning the
power off by using the light switch is not sufficient to prevent electrical shock. This light is for outdoor use and
should not be used in areas of limited ventilation or high ambient temperature. All work should be performed
by a qualified electrician. This product must be installed in accordance with the applicable installation code by
a person familiar with the construction and operation of the product and the hazards involved.

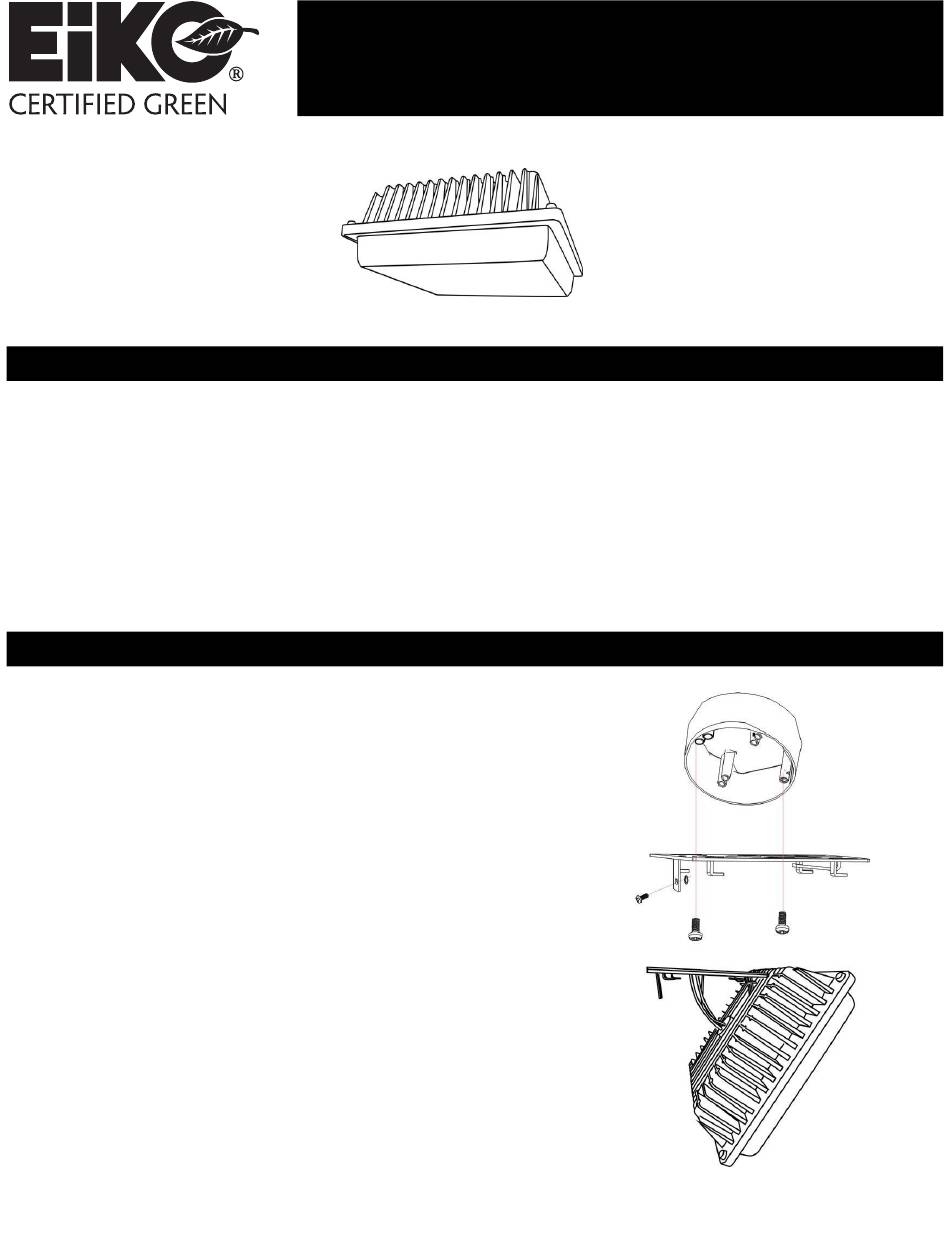

INSTALLATION:
1. Remove the junction box mounting plate from the top of
the fixture by loosening one side screw and sliding the
fixture plate out from the holding brackets on the top of
the casting.
2. Install the mounting plate to the junction box with two
screws (not provided). The bracket should be positioned
to allow the fixture to be "square" with the sides of the
canopy the fixture is mounted to.
3. Hang the fixture from support spring while wiring the
unit. Bring the fixture input wires from the top of the
fixture and connect to the power leads in the junction
box – black to black (hot), white to white (neutral), and
green to green (ground).
4. Connect the main housing to the junction box bracket.
Hold in place while reinstalling one side locking screw.
5. Turn on the power. The fixture will come to full output
in several seconds.
NOTE: Do not remove the bottom lens or touch the LED optics.
All LEDs are preinstalled and ready to operate.
INSTALLATION INSTRUCTIONS
SCSS-1C-U & SCSS-2C-U
LED SURFACE MOUNT LUMINAIRE
052015
