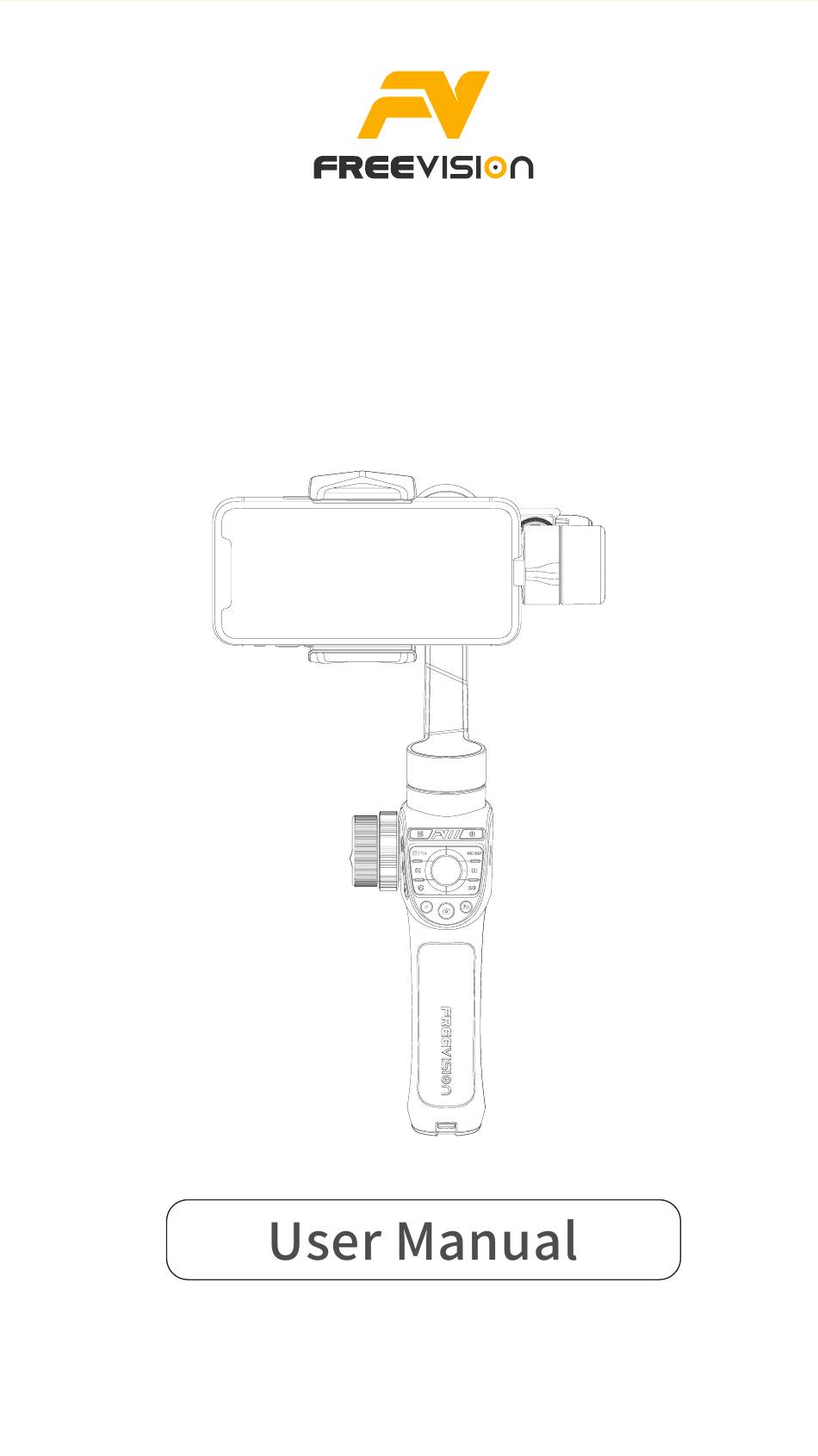

- Page 1 VILTA-M Pro Stabilizer for Smartphone Freevision Intelligent Technology Co.,Ltd.
-
Page 2: Table Of Contents
Contents Overview Packing List Product Overview Installation App Installation Smartphone Installation and Balance App Connection Start Up Control Panel Introduction App Menu Introduction App Operation Technical Parameter Warning Warranty Information... -
Page 3: Overview
OVERVIEW Packing List VILTA-M pro Portable Bag Charging Cable User Manual Lanyard Warranty Card... -
Page 4: Product Overview

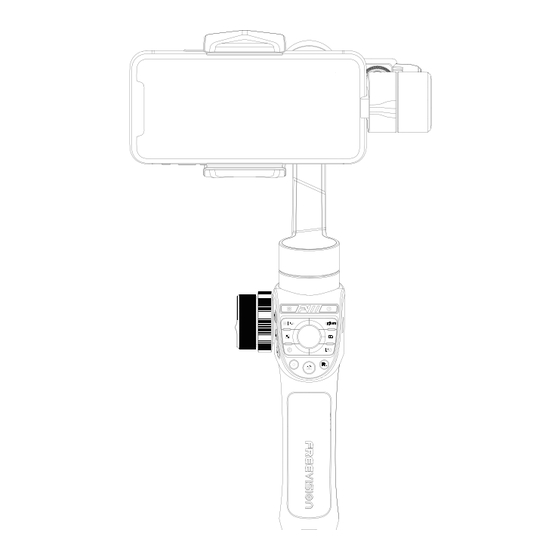

OVERVIEW Product Overview Smartphone USB-A Mounting Holder Charging Port Wireless Charging Tilt Axis Adjustable Arm Roll Axis Balance Roll Axis Buckle Adjustment Knob Pan Axis Connection Indicator LED Scene Mode Switch Status Indicator LED Camera Parameter Adjustment Wheel Power Button Focus/Zoom Wheel OK/DISP Button Focus/Zoom... -
Page 5: Installation
Installation App Installation Download FV Share App For Android users, please search FV Share App in Google Play. (Android 5.0 or above) For iOS users, please search FV Share App in App Store.( iOS 9.0 or above) Available on the App Store... -
Page 6: Smartphone Installation And Balance
Installation Smartphone Installation and Balance Place the mobile phone in the smartphone mounting holder while pulling the sides of the holder outwards, then release the sides of the holder. It is recommended that you position the mobile phone close to the tilt axis. Turn the phone over facing downwards ,adjust the position of the phone in the holder to balance the tilt motor(refer to the picture below) and then tight up the balance adjustment knob. - Page 7 Installation Manually rotate the phone holder to switch between horizontal and vertical screens.
-
Page 8: App Connection
Installation Power Button App Connection FV Share Connection Turn on bluetooth (For Android users, please turn on GPS at the same time ) Power on VILTA M Pro Open FV Share Tap Connect to Gimbal and choose your gimbal to connect. After successfully connecting, the blue connection indicator LED stops Connection Indicator LED... -
Page 9: Start Up
Start Up Use Focus/Zoom Wheel to choose one of your subjects. Long press the Use Focus/Zoom Wheel to choose the other subject. Long press the Mark When recording, single tap the Mark A and B button to switch the focus of the subject. - Page 10 Start Up Single tap EV button, shutter button, ISO button to turn on quickly the manual camera parameter adjustment. Press the EV button / shutter button / ISO Camera Parameter Adjustment Wheel function. Camera Parameter Adjustment Wheel Mode indicator LED and Mode switch Follow Mode Status Gimbal Mode...
- Page 11 Start Up Scene Mode Switching Menu/Return Button Record Button Single tap to start/exit recording. Double tap to switch front and rear facing camera. Shutter Button Light press Shutter Button to focus. Deep press Shutter Button to take a photo. Record Button Shutter Button Custom mode Button and wireless charging power switch.
- Page 12 Start Up Album Mode Button Custom mode Button OK/DISP Button parameters. When the APP is on the primary interface display, single tap the DISP button to display the current camera parameters. When viewing photos, single tap the DISP button to display photo information.
-
Page 13: App Menu Introduction
Start Up App Menu Introduction Due to some limitations of Android and IOS systems, VILTA-M Pro users will not be able to use some of the FV share-APP function. We apologize for the inconvenience and thank you for your understanding and support. Phone Gimbal Camera Settings... - Page 14 Start Up Advanced Settings Camera Photo Resolution, Video Resolution, Panoramic Photo Quality, Pan- oramic Photo Focus Mode, Pano Single Photo saving, Zoom speed, sound source, Photo and Video saving path, Camera anti-shake, Mark point mode settings Gimbal dead zone settings, gimbal calibration, gimbal recovery factory set- tings,Custom button function settings,Wireless charging,Control system camera Joystick...
-
Page 15: App Operation
Start Up Photo/Video Switch to switch Phone Video Front/Back Camera Switch to switch Flashlight Status App Operation Photo Mode Panorama will automatically shoot and compose a panorama. It will be automatically saved to documents. Video Mode IntelliTrace other modes have the tracking function.) 2. - Page 16 Start Up Static Time-lapse 2. Set the shutter interval and duration, tap to start. Dynamic Time-lapse 2. Set the shutter interval and duration, tap to start. Motion Time Lapse 2. Set shooting points Standard mode Turn the phone by hand/ Rotate the phone through the joystick to the ideal shooting location, take photos and input them into the gimbal, the app will display the shooting point A.
- Page 17 Start Up 3. Set shutter interval and time of duration. Tap Start. Slow Motion Video 2. Tap to start shooting. Tap to exit shooting. Videos will be automatically saved to documents. Photo/Video Editing VILTA-M Pro Enter App home page and tap at the bottom.
- Page 18 Start Up 2. Video Editing Enter App home page and tap at the bottom. Choose video. to editing (Add Video, Video Editing, Add Music, Filter, Adjust) Camera Manual Mode iPhone Gimbal Adjust exposure,shutter,ISO, white balance, manual focus and zoom of your phone camera. Name VILTA -M Pro Item No.
-
Page 19: Technical Parameter
SPECIFICATIONS Technical Parameter 01 Mechanical Rotation Range Tilt Roll unlimited 02 Maximum Control Speed Adaptive Rotation Speed（± 5 0 0 / s ) Battery Battery Type Intelligent Lithium Battery Voltage 7.4V Working Current Static: Battery Capacity 2000mAH Energy Consumption Static: Above data come from laboratory. -
Page 20: Warning
WARNING Warning Buckles will cause slight wear and tear due to friction during use. Drop and collision will break VILTA-M Pro. Please use it carefully. Not water-proof. Keep away from liquids or do not clean with liquid detergent. Do not disassemble, repair or modify VILTA-M Pro. Please use charging cable complying with public safety regulation. - Page 21 For the following equipment: Product Name: VILTA-M Pro Model: VT30 Brand Name: FREEVISION Hangzhou Freevision Intelligent Technology Co., Ltd. E-mail: Support@freevisiontech.com Hereby declares that this [Name: VILTA-M Pro, Model: VT30] is in compliance with the essential requirements and other relevant provisions of Directive The full text of the EU declaration of conformity is available at the internet address: www.fvshare.com...
- Page 22 WARNING FCC Warning subjectto the following two conditions: accept any interference received, including interference that may cause undesired operation. are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause har- mful interference to radio communications.
-
Page 23: Warranty Information
Damage caused by not using as stated in the user manual. Warranty Information After Freevision after-sale service center receives the product, it will un dergo a test. If the product does not conform to the conditions for free repair, Freev ision will assess the problem and cost of repair, the customer has the right to repair or deliver it back. - Page 24 WARRANTY INFORMATION Customer Information Name： Tel： Zip Code： Email： Address： Dealer Information Name： Tel： Zip Code： Email： Address： Product Information Item No. Product Code： Purchase Date：...
- Page 25 WARRANTY INFORMATION Warranty Card...
