- Page 1 Bedienungsanleitung Operation Instructions AMIN 30 BSH Stand: 21.11.2008 - AMIN 30 BSH -...
-
Page 2: Table Of Contents
Index Introduction Technical data Commissioning Usage Safety Instructions Maintenance Instructions Warranty Spare Part List Appendix Technical Drawings Service and Manufacturer's Address Declaration of Conformity Warranty Certificate Stand: 21.11.2008 - AMIN 30 BSH -... -
Page 3: Introduction

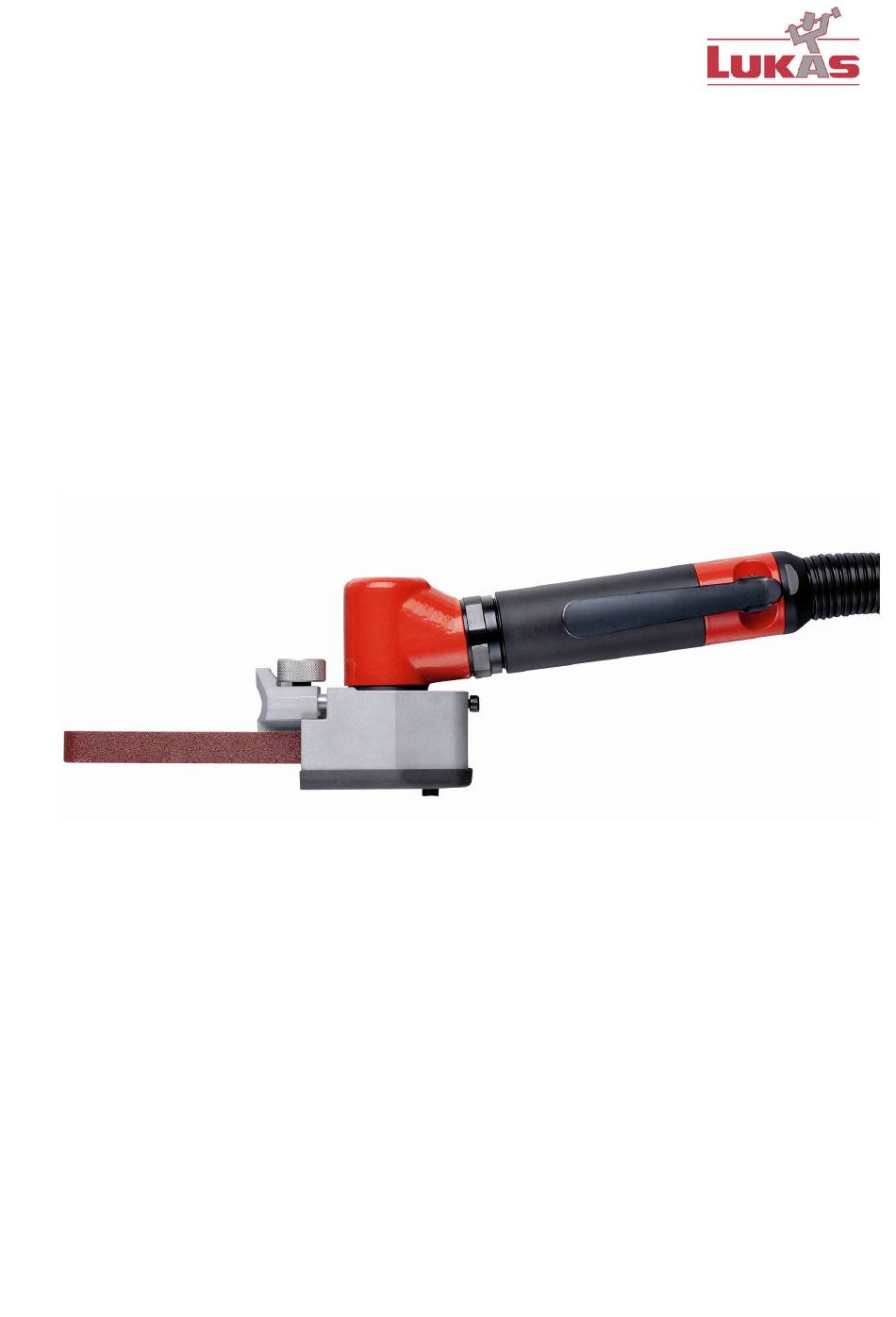

1. Introduction The AMIN 30 BSH is a pneumatic power tool reflecting state-of-the-art technology. It is driven by a vane air motor using compressed air. The integral speed controller keeps the rotation at a constant speed. With the belt grinding arm mounted the power tool is suitable for radial grinding with grinding belts only. -
Page 4: Commissioning
The pressure reducer must be installed at the working height of the power tool or above. The compressed air hose supplied with the machine must be directly connected to the pressure reducer and must not be lengthened. Stand: 21.11.2008 - AMIN 30 BSH -... -
Page 5: Usage
The burr manufacturer's recommendations must be adhered to. A minimum clamping length of 10 mm must be observed, independent of the type of tool used. Stand: 21.11.2008 - AMIN 30 BSH -... -
Page 6: Safety Instructions
The power tool must not be operated with damaged or incorrectly clamped tools as this may cause vibration. When machining certain materials, dust and vapour may occur which result in an Stand: 21.11.2008 - AMIN 30 BSH -... -
Page 7: Maintenance Instructions
Maintenance work on this power tool may only be carried out by specialists. After each maintenance check, the power tool must be tested for speed and vibrations. The power tools speed must be checked at regular intervals using suitable inspection equipment. Stand: 21.11.2008 - AMIN 30 BSH -... -
Page 8: Warranty
A guarantee claim may only be submitted using the duly completed warranty certifi- cate for this power tool. Stand: 21.11.2008 - AMIN 30 BSH -... -
Page 9: Spare Part List
BEARING 625 - 2Z A872800062501 BEARING AY8 - 2Z A8728000AY8 VALVE UNIT A875301034005 VALVE HOUSING A875302406083 LEVER A872000403058 VALVE SCREW A87570061201301 VALVE A875300407030 VALVE SPRING A87150060502402 NOZZLE A875200400066 Stand: 21.11.2008 Stand: 21.11.2008 - AMIN 30 BSH - - AMIN 45 GD -... - Page 10 TENSION ARM UNIT Ø15,0x 9 305 A875306035001 TENSION ARM A875307112002 BELT SUPPORT A875308111005 ROLLER A876401626001 BEARING 623 - 2Z A872800062301 PIN 3 x 12 DIN 7 A87500303012 SPACER A873500603055 Stand: 21.11.2008 Stand: 21.11.2008 - AMIN 30 BSH - - AMIN 45 GD -...
- Page 11 Optional Equipment Pos. Description LE-Item-Nr. COLLET 3,00 mm A874700502050 COLLET 4,00 mm A874700502049 COLLET 5,00 mm A874700502048 COLLET 1/8" A874700502051 COLLET 3/16" A874700502052 COLLET 1/4" A874700502053 Stand: 21.11.2008 Stand: 21.11.2008 - AMIN 30 BSH - - AMIN 45 GD -...
-
Page 12: Technical Drawings
Technische Zeichnungen / Technical Drawings Stand: 21.11.2008 - AMIN 30 BSH -... - Page 13 Stand: 21.11.2008 - AMIN 30 BSH -...
- Page 14 Stand: 21.11.2008 - AMIN 30 BSH -...
- Page 15 Stand: 21.11.2008 - AMIN 30 BSH -...
-
Page 16: Service And Manufacturer's Address
For repair, please return machine to: LUKAS-ERZETT Vereinigte Schleif- und Fräswerkzeugfabriken GmbH & Co. KG Ohl 1-3 D-51766 Engelskirchen Tel. (0 22 63) 84 - 0 Fax (0 22 63) 84 - 3 00 Stand: 21.11.2008 - AMIN 30 BSH -... -
Page 17: Declaration Of Conformity
EN 292 – 1 ; EN 1050; EN 292 – 2 + A1; EN 792 - 8 Engelskirchen, 20.2.2005 LUKAS-ERZETT Vereinigte Schleif- und Fräswerkzeugfabriken GmbH & Co. KG Paul Lehnard (Geschäftsführer / Managing Director) Stand: 21.11.2008 - AMIN 30 BSH -... -
Page 18: Warranty Certificate
GmbH & Co. KG Postfach 1259 u. 1260 D - 5 1 7 5 2 Engelskirchen Ohl 1 – 3 D - 5 1 7 6 6 Engelskirchen Phone +49 (0) 2263/84-0 Stand: 21.11.2008 - AMIN 30 BSH -...
