Summary of Contents for Pitaka MagEZ Juice

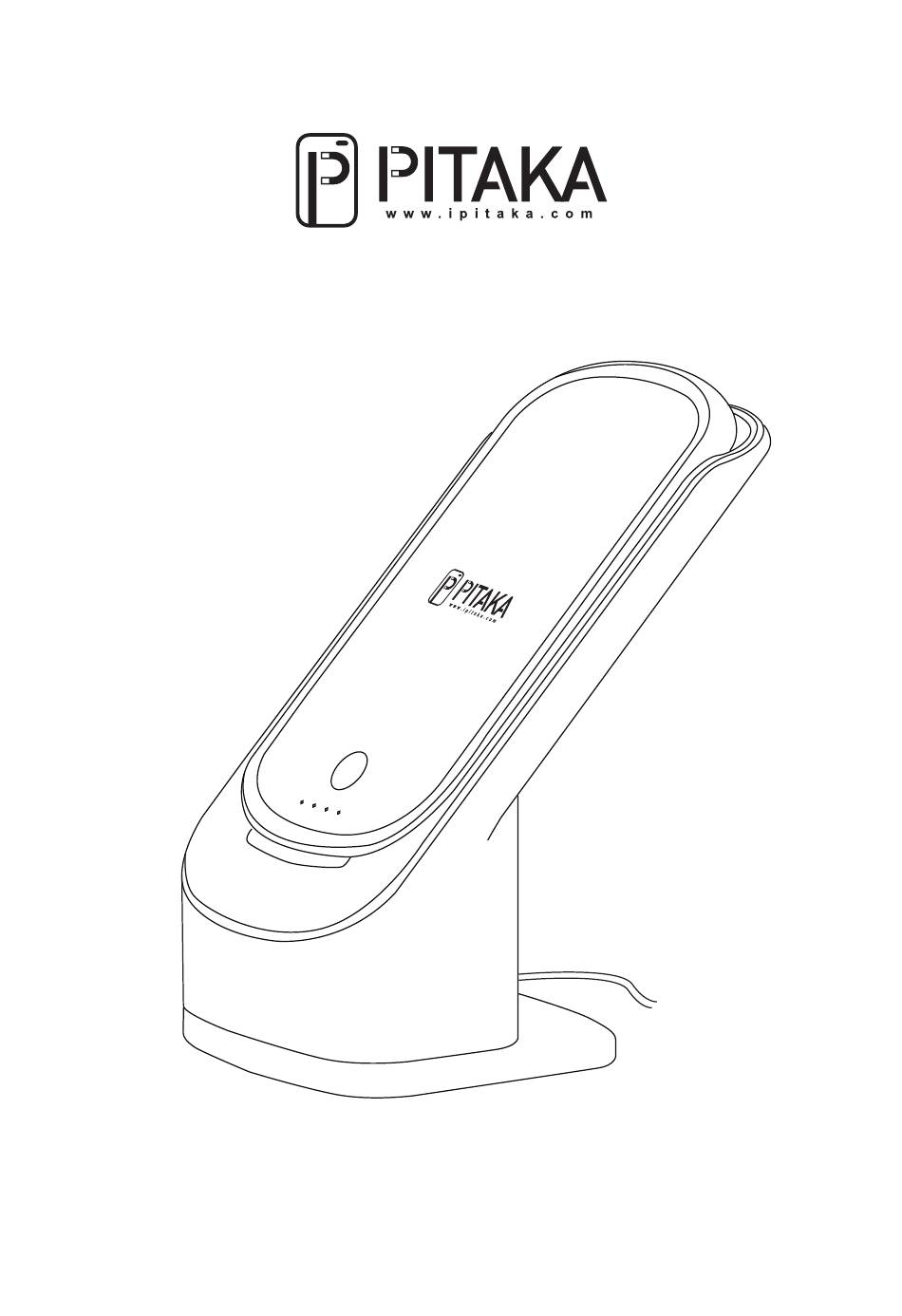

Page 1 MagEZ Juice User Manual...
Page 2: Table Of Contents
Welcome & Intro Thank you for purchasing the PITAKA MagEZ Juice. You can slide MagEZ Juice in the Dock to use it as a wireless charging dock, or you can slide MagEZ Juice up from the Dock to use it as a wireless power bank.
Page 3: Package Includes
Package Includes 1. MagEZ Juice * 1 2. Dock for MagEZ Juice*1 3. Charger*1 4. Metal Plate * 1 5. Document Kit *1 ① ② ③ Documents ④ ⑤...
Page 4: Key Features
Key Features Magnetic Attach. Best Compatible with MagEZ Case and MagEZ Case Pro. Universal Compatibility: Works with all Qi-enabled devices. Compact & ergonomic design. Comfortable to hold in hands. Safe and reliable. Designed to provide overvoltage protection, under-voltage protection, over-temperature protection, overcurrent protection, short-circuit protection and FOD.
Page 5: Compatibility
With the slide-or-detach design, you can slide up to take your phone with the MagEZ Juice Which is automatically attached to use the power bank on-the-go, or you can take your phone by detaching from the Dock. Compatibility All wireless charging receiving devices that support Qi standard.
Page 6: Metal
If you are not using a MagCase, follow below steps to afﬁx the supplied metal plate before using the MagEZ Juice to charge your phone; ② Metal Plate ③ Alignment paper *Please use the alignment paper supplied to help locate metal plate...
Page 7 2, Use MagEZ Juice as a power bank ① ②...
Page 8 3, Use MagEZ Juice as a desktop stand while charging ①...
Page 9 ② ③...
Page 10 ④ ⑤...
Page 11: Buttons And Led Indicators
Buttons and LED Indicators Button LED indicators...
Page 12 50% ~ 75% 75% ~ 100% *Applicable only when home button is clicked. When connecting the MagEZ Juice with power, the LED indicators will light on based on the remaining battery and keep blinking. When charging your phone with the MagEZ Juice, the LED indicators will light on based on the remaining battery.
Page 13: Spec
Spec Items Speciﬁcation MagEZ Juice Dock 67.90mm 61.91mm Width 113.80mm 107.60mm Length 99.70mm Thickness 12.62mm Battery Capacity 2000mAh Input DC 5V/0.5A Output DC 5V/0.5A Wireless Output DC 5V/1A Transmission Distance ≤8mm Transmission Efﬁciency 75% Max Operating Temperature -10℃~30℃ Storage Temperature -20℃~60℃...
Page 14 MagEZ Juice 12.62 mm 61.91 mm...
Page 15 Dock 67.90mm 99.70 mm...
Page 16: Warranty
The PITAKA MagEZ Juice is warranted for 12 months from the date of purchase. The MagEZ Juice is warranted to be free defects in materials and function under regular use for the lifetime of the product. A defect is deﬁned as an imperfection or ﬂaw that is produced by a...
Page 17: Exclusion
Important 1.Do not disassemble the MagEZ Juice or attempt to modify it in any way. 2.Do not attempt to power the MagEZ Juice with any connector other than Type-C connector. 3.Do not attempt to replace any part of the MagEZ Juice.
Page 18: Customer Service
6.All parts have gone through a thorough quality assurance inspection. If you ﬁnd that your MagEZ Juice is excessively hot, is emitting odor, is deformed, abraded or is experiencing or demonstrating an abnormal phenomenon, immediately stop all product use and contact manufacturer.
Page 19: Fcc Warning
FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 20 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
