Forms + Surfaces LIGHTHOUSE Series Installation Instructions

LIGHTHOUSE
MATERIALS INCLUDED
a b c d e
g

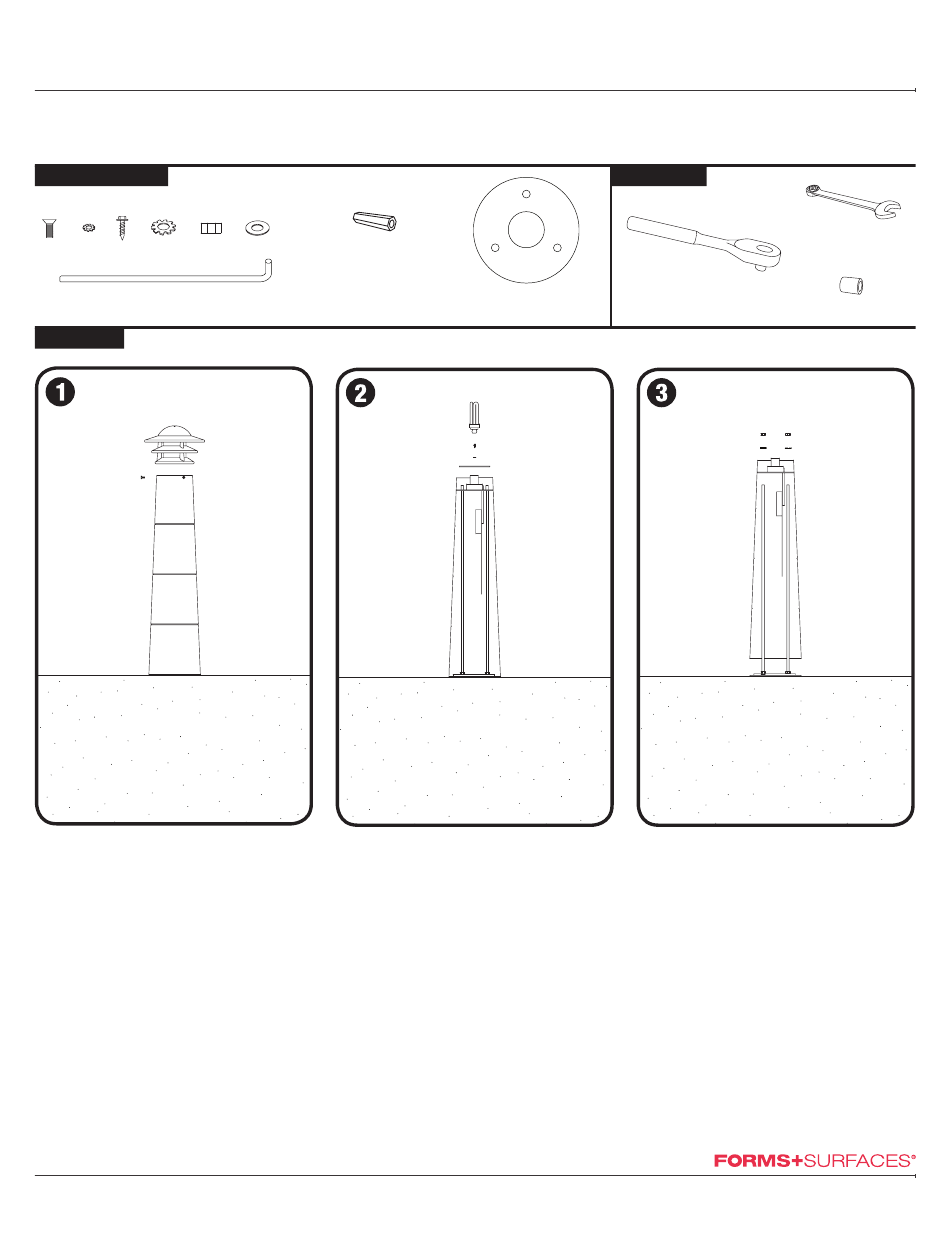

STEP BY STEP FOR ALL LIGHTHOUSE BOLLARDS
a
Remove head unit
• Use 5/32" hex bit for tamper-resistant
screws to unscrew 1/4"-20 x 3/4"
tamper-resistant flat head cap screws
and remove head unit.
NOTE: Retain all pieces for use in later
steps.
T 800.451.0410 | www.forms-surfaces.com
© 2016 Forms+Surfaces® | All dimensions are nominal. Specifications and pricing subject to change without notice. For the most current version of this document, please refer to our website at www.forms-surfaces.com.
BOLLARD
TM
f
5/32" hex bit
for tamper-resistant
screws
Remove lamp & top plate
• Remove lamp.
• Use 1/4" wrench to unscrew and remove
#8-32 x 1/2" thread-cutting hex washer
head screws (c) and #8 external tooth
washers (b).
• Remove top plate.
NOTE: Retain all pieces for use in later
steps.
SURFACE MOUNT INSTALLATION INSTRUCTIONS
TOOLS NEEDED
template
(upon request)
b (2 per unit)
Remove body & mounting unit
• Use 3/4" socket and socket wrench to
unscrew and remove 1/2"-13 nut and
1/2" washer from each vertical support.
NOTE: Retain all pieces for use in later
steps.
1/4" wrench
socket wrench
3/4" socket
d
page 1 of 3 | Rev. 03-14-16
